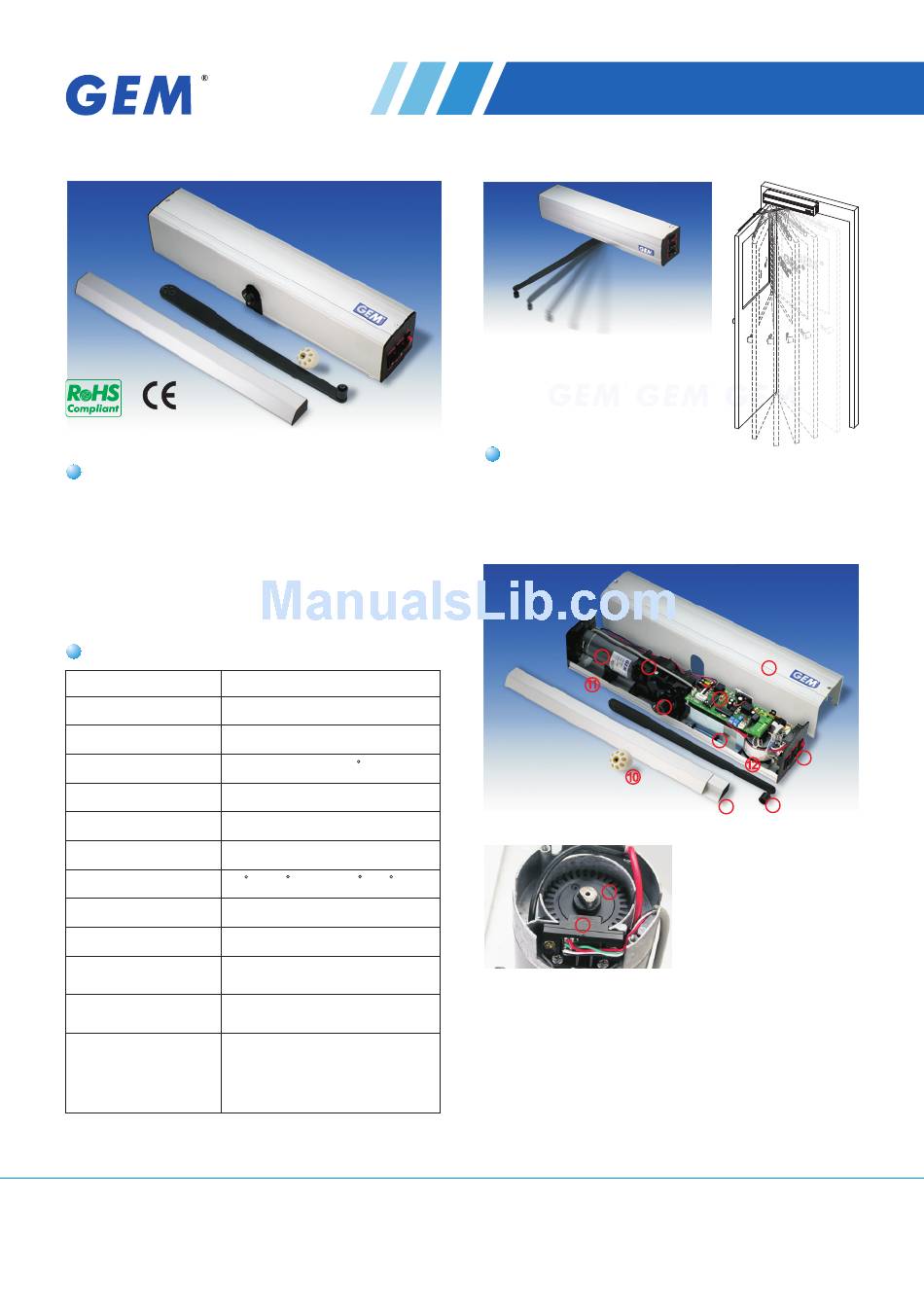

Gianni Industries AD-425S Specification Sheet

EC862636
Statement
AD425S Automatic Door Operator is a reliable and quiet
door opening and closing device. This product is ideal for
enabling access to areas for people with disabilities or simply
for convenience (for example in hospitals, nursing homes and
airports etc) . It is compact and can be used in combination
with other access control system to create a barrier-free
environment.

Specifications

Operating voltage
100~115 VAC( or 220~230 VAC)
Current draw
3A max., 0.6A average (Motor)
Torque
35Nm
Opening/Closing time
4.5~9.5 seconds （90）
Maintain-Open time
1,5,10,20 seconds
Battery Specification 12V 1.2AH
Battery charge 12V=0.15A (Normal); 0.3A (Peak)
Temperature
-20C~+55C (Battery 5C~40C)
IP12D
Moisture resistant grade
Net Weight
8.5 kg
Operator: 526(L) x 100(W) x 96(D)
Dimensions Arm: 400
(unit: mm)
Door wing width : 75~120 cm
Wing dimensions
Door wing weight : 30~100 kg
Door wing high:Max.280cm
Maximum current : 4A
Output : 65W
Motor specification
Voltage: 8~24VDC
Frequency: 2400 RPM
Copyright Gianni industries, inc. All rights reserved.
DM-CA-AD425S Ver. F Published on 2010.07.21
AD425S
Automatic door operator
Safety Device
Do not push/pull the door with excessive force during
p r o p e r o p e r a t i o n . E x c e s s i v e f o r c e w i l l l e a d t o
auto shut off by control board and recovery after 10 seconds.
The zinc alloy housing with heat treatment for some inner
parts enhances the construction strength and durability
2
3
13
14
1. Cover
2. Motor
3. Reducer
4. Square Couplings
5. Control Board
6. Battery
7. Power Switch
GIANNI INDUSTRIES, INC.
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: info@gianni.com.tw
Website: gianni.tw
1
5
4
6
7
8
9
8. Operating Arm
9. Sliding Rail
10. Stopper Ball
11. Baseplate
12. Transformer
13. Encoder
14. Photocell
