Summary of Contents for Electrolux EW 549 F

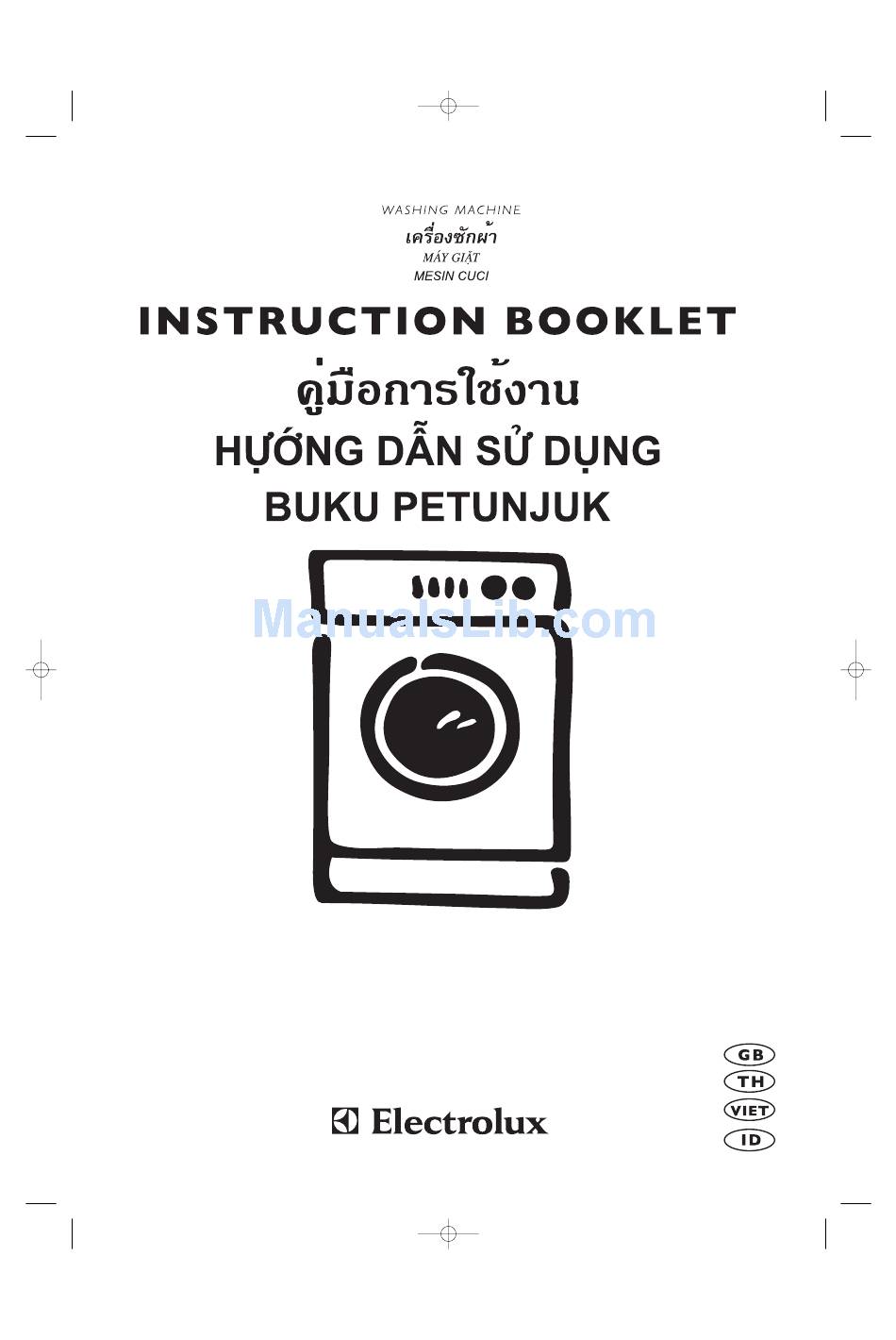

- Page 1 UserManualNukeCover.qxd 04/07/2005 13:20 Page 1 EW 549 F EW 551 F EWF 771 147143500...
-
Page 2: Table Of Contents
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Dear customer, Transport damages Please read these operating instructions carefully When unpacking the appliance, check that it is not and pay particular attention to the safety notes damaged. If in doubt, do not use it and contact the indicated in the first pages. -
Page 3: Warnings
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. • Use only the recommended quantities of fabric Installation softener. An excessive amount could damage the •... -
Page 5: Installation
Installation Unpacking 5. Set the machine upright and remove the All transit bolts and packing must be remaining rear screw. Slide out the relevant pin. removed before using the appliance. 6. Plug all the holes with the plugs which you will find in the envelope containing the instruction manual. -
Page 6: Water Drainage
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina The inlet hose must not be lengthened. If it is too Electrical connection short and you do not wish to move the tap, you will This machine is designed to operate on a 220-230 V, have to purchase a new, longer hose specially single-phase, 50 Hz supply. -
Page 7: Your New Washing Machine
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Your new washing machine This new machine meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. • The temperature selector dial will allow you to choose the most suitable temperature for your laundry. •... -
Page 8: Use
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Control panel 1. Detergent Dispenser Drawer 2. ”Start /Add Clothes” Button After having selected the programme and the required options, press this button to start the machine. The corresponding LED stops flashing and remains lit. To interrupt a programme which is running, depress the Start/Add Clothes button, the corresponding LED starts to flash.To restart the programme from the point at which it was interrupted, press the Start/Add clothes button again. -
Page 9: Washing Hints
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Washing hints Sorting the laundry Laundry weights The following weights are indicative: Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. bathrobe 1200 g Sort the laundry as follows: napkin 100 g whites, coloured, synthetics, delicate, woollens. -
Page 10: Detergents And Additives
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 11: Operating Sequence
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina 4. Select the desired programmes Operating sequence Turn the programme selector dial to the desired position. Before the first wash we recommend that you pour 2 litres of water into the main wash compartment ECO valve. Then run the automatic cycle with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 12: At The End Of The Programme
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina 7. At the end of the programme The machine stops automatically and the Start/Add clothes button LED goes off. If you have selected the Quick Wash button, LED for the button will also go off. Wait one or two minutes before opening the door to give the electric locking mechanism time to release it. -
Page 13: International Wash Code Symbols
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina International wash code symbol These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C... -
Page 14: Washing Programmes
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Programme table EWF 551 & EWF771 - Hot Programmes The temperature of each programme is pre defined and is set automatically Depending upon the type of laundry and is as per the se Programme Type of laundry Programme Programme Possible... - Page 15 UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Programme table EWF 549 Programme Type of laundry Programme Programme Possible and degree of soil description option Houselhold , linens, Automatic Pre-Wash, wash, Quick Wash sheets, shirts, 5 rinses, normal spin under garments Shirts, table clothes, Daily cotton Wash , 3 rinses, Quick Wash...
-
Page 16: Maintenance
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Maintenance Detergent can also accumulate inside the drawer 1.Cleaning the Door Seal recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold. -
Page 17: Water Inlet Filter
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina • Remove any objects from the pump impeller by 6. Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; •... -
Page 18: Something Not Working
UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Something not working? Problems which you can resolve yourself. Problem Possible cause • The door is not firmly closed. • The machine does not start up: • The machine is not plugged in or there is no power at the socket. - Page 19 UserManualNukeEUFinal.OK.qxd 04/07/2005 12:53 Pagina Problem Possible cause • Spinning starts late or the laundry • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum.
