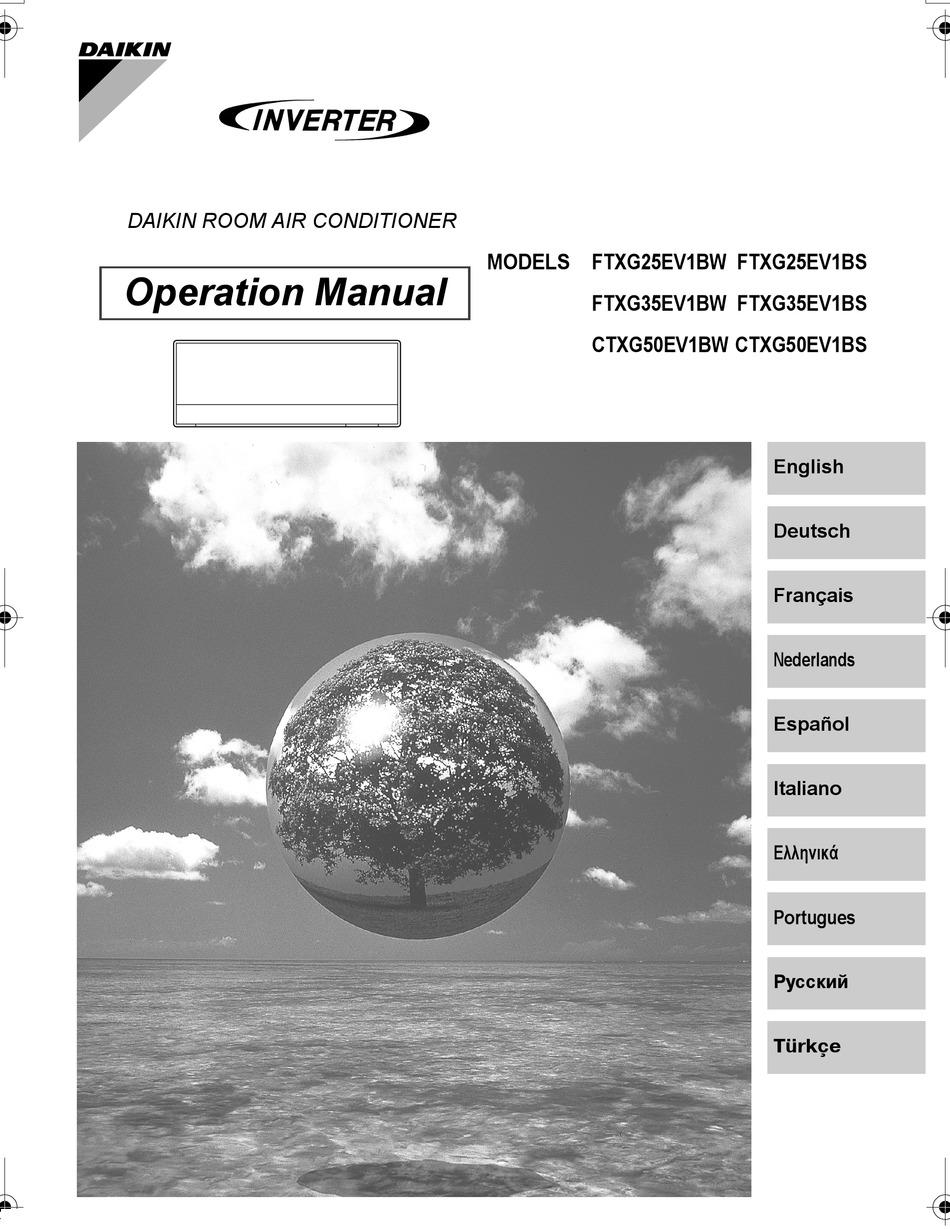

Page 1: Operation Manual
DAIKIN ROOM AIR CONDITIONER MODELS FTXG25EV1BW FTXG25EV1BS Operation Manual FTXG35EV1BW FTXG35EV1BS CTXG50EV1BW CTXG50EV1BS English Deutsch Français Nederlands Español Italiano ΕλληνικÜ Portugues Рóссêий Türkçe... -
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation ............. 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 14 OUTDOOR UNIT QUIET Operation..... -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • Do not insert fingers, poles, or other objects into the moving parts of the front panel or the outlet vent panel. -
Page 4: Installation Site
• Do not place appliances which produce open fire in places exposed to the air flow from the unit or under the indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat. • Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble. •... -
Page 5: Names Of Parts
Names of parts ■ Indoor Unit (With the panel closed) -
Page 6: Outdoor Unit
■ Outdoor Unit ■ Indoor Unit 1. Air filter • The operation mode refers to the following table. 2. Titanium Apatite Photocatalytic Tempera- Air flow Air-Purifying Filter: Mode ture setting rate • These filters are attached to the inside of F(C)TXG AUTO 25°C AUTO... -
Page 7: Remote Controller
■ Remote Controller < ARC433B41 > 1. Signal transmitter: 8. QUIET button: OUTDOOR UNIT QUIET operation (page 15.) • It sends signals to the indoor unit. 9. FAN setting button: 2. Display: • It selects the air flow rate setting. •... -
Page 8: Preparation Before Operation
Preparation Before Operation ■ To set the batteries Position + and 1. Slide the front cover to take it off. – correctly! 2. Set two dry batteries AAA.LR03 (alkaline). 3. Set the front cover as before. ATTENTION ■ About batteries •... - Page 9 Preparation Before Operation ■ To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote controller, such as a curtain, the unit will not operate. •...
-
Page 10: Tips For Saving Energy
■ To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “TIMER setting button” to set the clock to the present time. Holding down “ ” or “ ” button rapidly increases or decreases the time display. 3. -
Page 11: Auto · Dry · Cool · Heat · Fan Operation
OPERATION AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. ■ To start operation 1. -
Page 12: To Change The Air Flow Rate Setting
■ To change the air flow rate setting 5. Press “FAN setting button”. DRY mode AUTO or COOL or HEAT or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” “ ”... -
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your comfort. ■ To adjust the horizontal blade (flap) 1. Press “SWING button ”. • “ ” is displayed on the LCD. 2. When the flap has reached the desired position, press “SWING button ”... - Page 14 ■ To start COMFORT AIRFLOW operation 5. Press “COMFORT AIRFLOW button”. • The flap orientation will change, preventing air from blowing directly on the occupants of the room. • “ ” is displayed on the LCD. 〈COOL/DRY〉 The flap will go up. 〈HEAT〉...
-
Page 15: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity. ■ To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used before POWERFUL operation. -
Page 16: Outdoor Unit Quiet Operation
OUTDOOR UNIT QUIET Operation OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during night. ■ To start OUTDOOR UNIT QUIET operation 1. -
Page 17: Intelligent Eye Operation
INTELLIGENT EYE Operation “INTELLIGENT EYE” is the infrared sensor which detects the human movement. ■ To start INTELLIGENT EYE operation 1. Press “SENSOR button”. • “ ” is displayed on the LCD. ■ To cancel the INTELLIGENT EYE operation 1, 2 2. - Page 18 “INTELLIGENT EYE” is useful for Energy Saving ■ Energy saving operation • Change the temperature –2°C in heating / +2°C in cooling / +2°C in dry mode from set temperature. • Decrease the air flow rate slightly in fan operation. (In FAN mode only) Notes on “INTELLIGENT EYE”...
-
Page 19: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. ■ To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. -
Page 20: To Use On Timer Operation
■ To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. (page 9.) 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “TIMER Setting button” until the time setting reaches the point you like. -
Page 21: Note For Multi System
Note for Multi System 〈〈 〉〉 What is a “Multi System”? This system has one outdoor unit connected to multiple indoor units. room Outdoor unit ■ Selecting the Operation Mode room Living room 1. With the Priority Room Setting present but inactive or not present. room When more than one indoor unit is operating, priority is given to the first unit that was turned on. - Page 22 ■ Priority Room Setting The Priority Room Setting requires initial programming during installation. Please consult your retailer or dealer for assistance. The room designated as the Priority Room takes priority in the following situations; 1. Operation Mode Priority. As the operation mode of the Priority Room takes precedence, the user can select a different operation mode from other rooms.
-
Page 23: Care
CARE Care and Cleaning CAUTION • Before cleaning, be sure to stop the operation and turn the breaker OFF. • Always shut down the unit (and close the panel) before doing any work. Opening the panel during operation may cause the panel to fall off. Units ■... -
Page 24: Air Filter
Filters 1. Open the front panel. • Open the front panel by placing a finger on the panel tab on either side of the front panel and then secure it using the supporting plate on the right. 2. Pull out the air filters. •... -
Page 25: Before A Long Idle Period
NOTE • Operation with dirty filters: (1) cannot deodorize the air. (2) cannot clean the air. (3) results in poor heating or cooling. (4) may cause odour. • To order Titanium Apatite Photocatalytic Air-Purifying Filter contact to the service shop there you bought the air conditioner. -
Page 26: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... -
Page 27: Check Again
Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off.) • Are batteries set in the remote controller? •... -
Page 28: Call The Service Shop Immediately
Call the service shop immediately. WARNING ■ When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner. ■... -
Page 29: Fault Diagnosis
Fault diagnosis. FAULT DIAGNOSIS BY REMOTE CONTROLLER In the ARC433B41, the temperature display sections on the main unit indicate corresponding codes. 1. When the TIMER CANCEL button is held down for 5 seconds, a “ ” indication flashes on the temperature display section. TIMER CANCEL button It cancels the timer setting. - Page 30 LED ON OUTDOOR UNIT PCB 2MXS, 3MXS, 4MXS, 5MXS series GREEN MICROCOMPUTER MALFUNCTION NORMAL DETECTION DIAGNOSIS LED-A LED1 LED2 LED3 LED4 LED5 NORMAL CHECK INDOOR UNIT HIGH PRESSURE PROTECTOR WORKED OR FREEZE-UP IN OPERATING UNIT OR STAND-BY UNIT ∗ OVERLOAD RELAY WORKED OR HIGH DISCHARGE PIPE TEMPERATURE FAULTY COMPRESSOR START INPUT OVERCURRENT ∗...
- Page 31 MEMO...
- Page 32 Two-dimensional bar code is a code for manufacturing. 3P194513-2C M06B198C (0807) HT...
