I Mounting the transceiver

The front panel can be inverted for correct viewing while leav-
ing the built-in speaker facing away from the mounting sur-
face.

D Inverting the front panel

q Unscrew the 2-side screws.
w Detach the front panel forward from the transceiver.
e Bend the flat cable between front panel and main unit as
shown in the following diagram.
Flat cable orientation
5
to main unit
normal bend line
inverted
bend line
to front panel

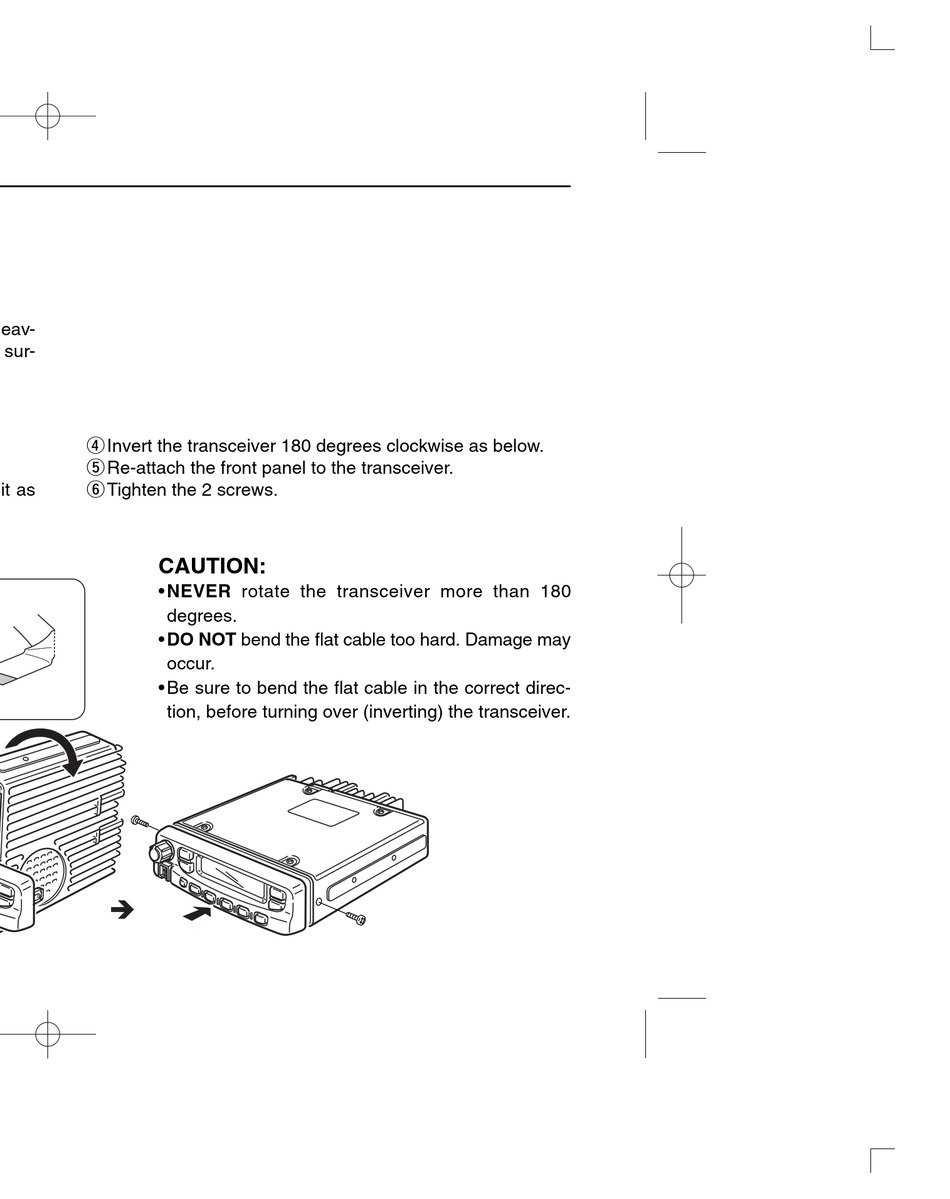

r Invert the transceiver 180 degrees clockwise as below.
t Re-attach the front panel to the transceiver.
y Tighten the 2 screws.
CAUTION:
• NEVER rotate the transceiver more than 180
degrees.
• DO NOT bend the flat cable too hard. Damage may
occur.
• Be sure to bend the flat cable in the correct direc-
tion, before turning over (inverting) the transceiver.
