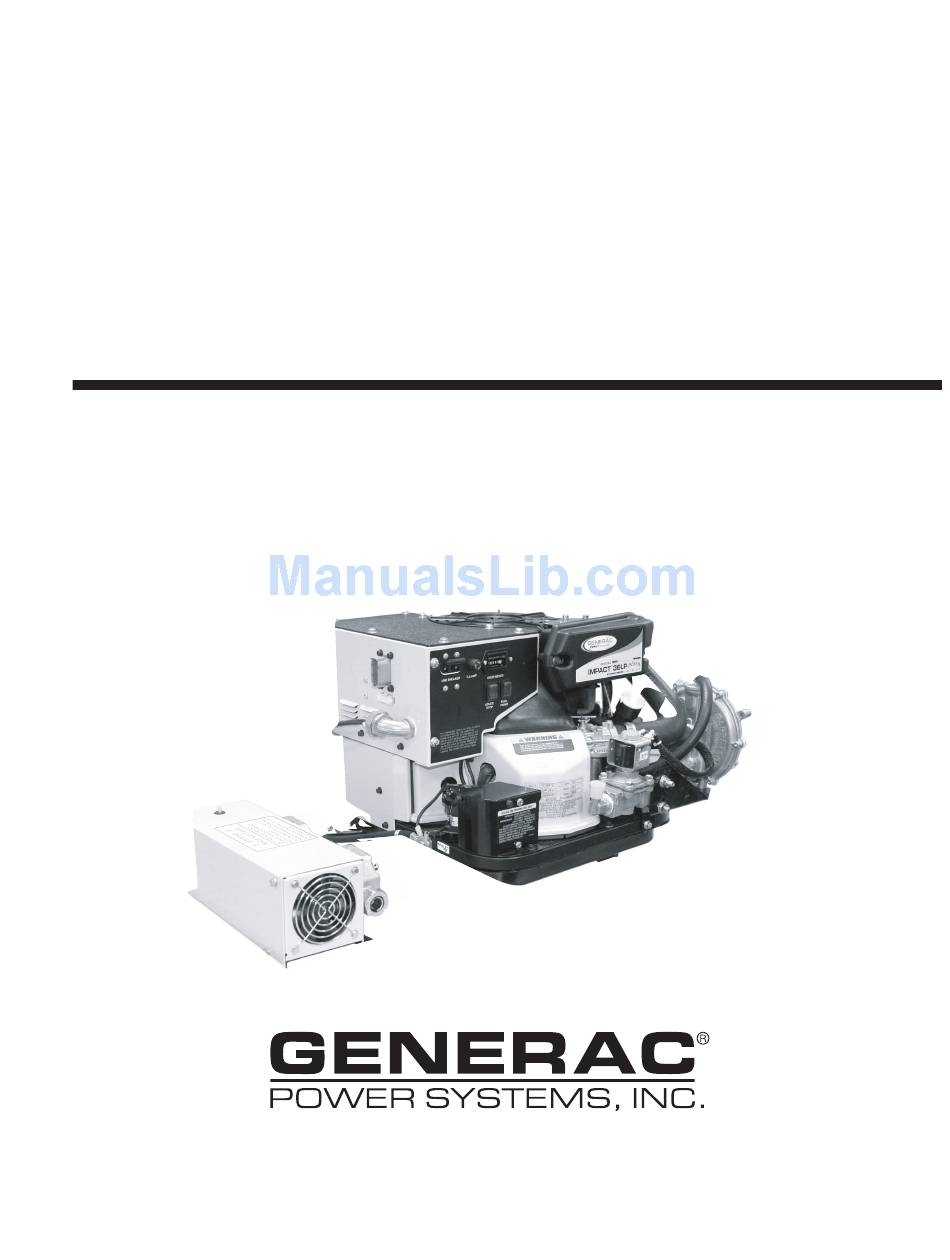

Manual Part No. 0D9057
SERVICE
MANUAL

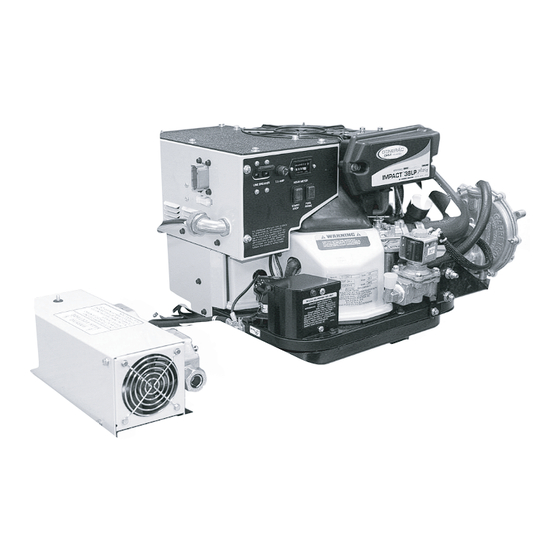

SERIES IMPACT 36 PLUS II
Models 940-2 & 941-2
P. O. B ox 2 9 7 • W h i t ewa t e r, W I • 5 3 1 9 0
Phone: (262) 473-5514
Fax: (262) 472-6505
Printed in U.S.A
Revision A - 07/15/03
