ITEM PART NO. QTY.
1 0F2912 1
2 0F2869 1
3 0F2823 1
4 036434 2
5 036449 2
6 022129 6
7 022259 4
8 0E0170A 1
9 044149 1
10 0E8816 1
11 0F2925 2
12 0F2926 1
48 Generac ® Power Systems, Inc.
Section 8 - Exploded Views and Parts
Guardian Liquid-cooled 25 kW Generator

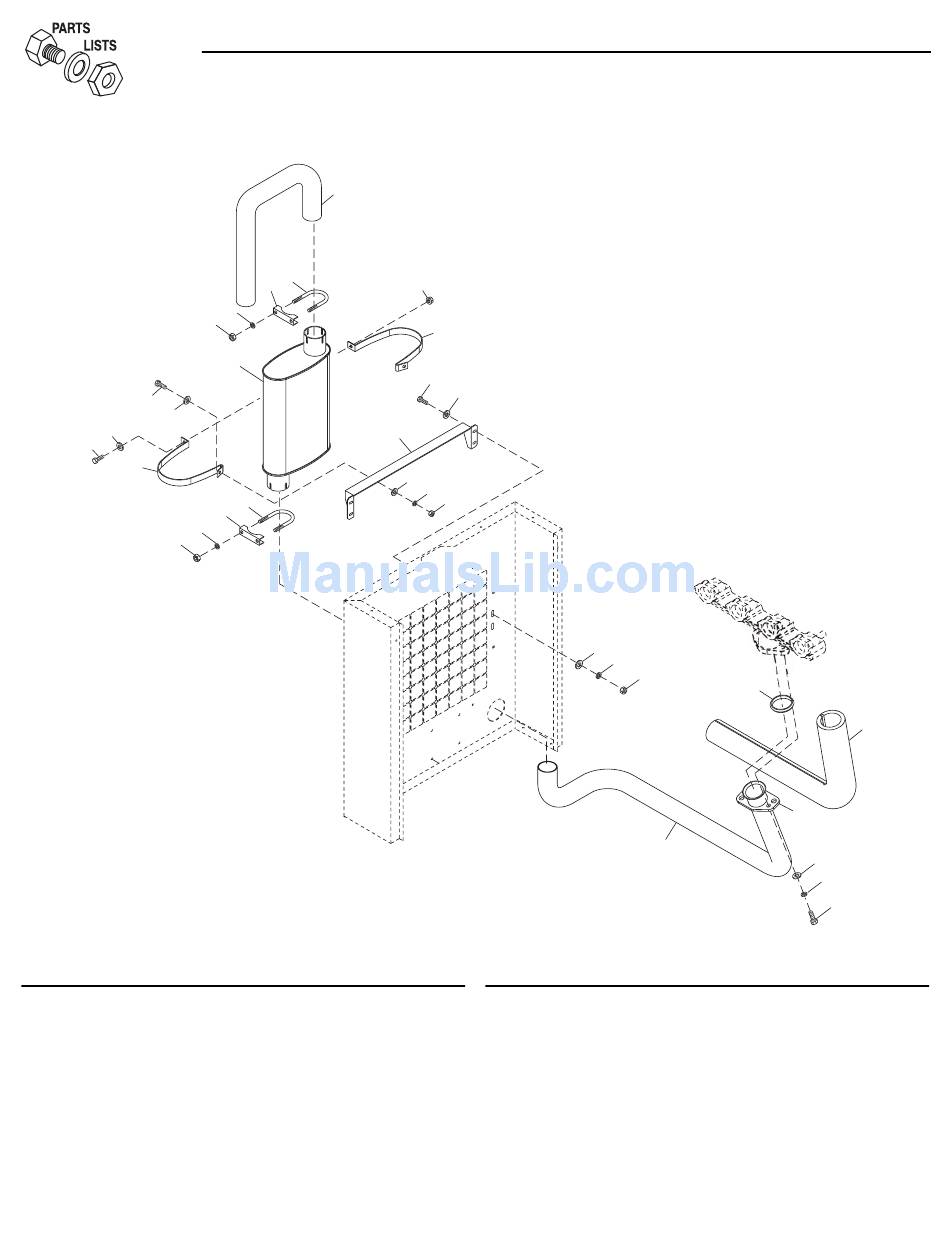

Muffler — Drawing No. 0F2930-B
1
4
5
6
7
3
12
4
5
DESCRIPTION
PIPE MUFFLER OUT
PIPE EXHAUST 2.5L FORD
MUFFLER 2.5L FORD
BOLT U 5/16-18 X 2.09
SADDLE 2 INCH
WASHER LOCK M8-5/16
NUT HEX 5/16-18 STEEL
EXHAUST BLANKET 938MM
GASKET EXHAUST RING
EXHAUST FLANGE 2" PIPE
STRAP MUFFLER
BRACKET, MUFFLER
24
11
13
15
20
6
18
ITEM PART NO.
13 047411
14 022097
15 022473
16 049813
17 039253
18 045771
19 0A4010
20 022145
21 022131
22 085917
23 0D2611
24 052858
15
14
16
9
2
QTY. DESCRIPTION
4 SCREW HHC M6-1.0 X 16 G8.8
4 WASHER LOCK M6-1/4
8 WASHER FLAT 1/4-M6 ZINC
4 NUT HEX M6 X 1.0 G8 YEL CHR
2 SCREW HHC M8-1.25 X 20 G8.8
2 NUT HEX M8-1.25 G8 YEL CHR
1 SCREW HHC M8-1.25 X 60 G8.8 FT
5 WASHER FLAT 5/16-M8 ZINC
2 WASHER FLAT 3/8-M10 ZINC
2 WASHER LOCK 3/8 SS
2 SCREW HHC 3/8-16 X 1-3/4 SS
1 NUT TOP LOCK FL M8-1.25
8
10
21
22
23
