Intel® Portable Capture Station
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Intel Portable Capture Station

Summary of Contents for Intel Portable Capture Station

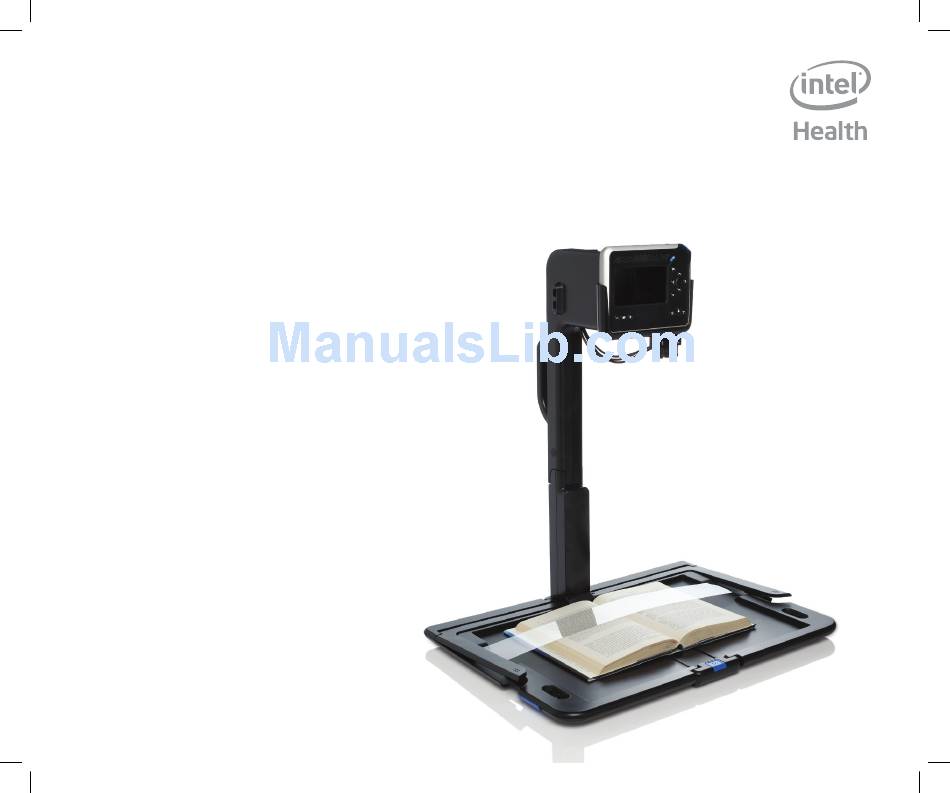

  • Page 1 Intel® Portable Capture Station User Manual...
  • Page 5 Copyright © 2009, Intel Corporation. All Rights Reserved. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries. *Other names and brands may be claimed as the property of others.

  • Page 6: Table Of Contents

    Contents Chapter 1. Important Safety Information and Warnings FCC Part 15 Compliance Statement .......2 Safety Symbols on the Portable Capture Station ....3 Safety Precautions ............3 Recycling ................6 Chapter 2. Getting Started About the Portable Capture Station ........8 Parts of the Capture Station ...........9 Setting Up the Capture Station ........
  • Page 7 Chapter 4. Storing the Portable Capture Station Safely Storing the Capture Station ........ 26 Chapter 5. FAQs and Support Frequently Asked Questions (FAQs) ......29 Customer Support ............31 Appendix A. Technical Specifications Portable Capture Station Specifications ......33...
  • Page 9 Chapter 1 Chapter 1. Important Safety Information and Warnings FCC Part 15 Compliance Statement ........2 Safety Symbols on the Portable Capture Station ....3 Safety Precautions .............. 3 Recycling ................6...

  • Page 10: Chapter 1. Important Safety Information And Warnings

    Chapter 1. Important Safety Information and Warnings FCC Part 15 Compliance Statement This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment.

  • Page 11: Safety Symbols On The Portable Capture Station

    WEEE Symbol. Indicates compliance with Waste Electrical and Electronic Equipment (WEEE) directive 2002/96/EC. Safety Precautions This section covers the important safety information about the Intel ® Portable Capture Station (Capture Station). Please read, follow, and keep these instructions and observe all warnings.
  • Page 12 Chapter 1. Important Safety Information and Warnings • Do not attempt to take apart the Capture Station. There are no user serviceable parts inside. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power cord or plug is damaged, liquid has been spilled or objects have fallen into the Capture Station, or the Capture Station has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 13 Portable Capture Station User Manual • Only use attachments and accessories recommended or specified by the manufacturer. • The Capture Station is classified as Class I Equipment for protection against electric shock. WARNING: Do not attempt to modify or use the supplied AC power cord if it is not the exact type and rating required.

  • Page 14: Recycling

    Chapter 1. Important Safety Information and Warnings • Keep your hands and fingers away from the hinged portion of the Capture Station arm when it locks into place. • Keep your hands away from the capture button when you release and lower the Capture Station arm.
  • Page 15 Chapter 2 Chapter 2. Getting Started About the Portable Capture Station ........8 Parts of the Capture Station ..........9 Setting Up the Capture Station ......... 11 Connecting the Reader to the Capture Station ....16 Removing the Protective Covering ........17...

  • Page 16: Chapter 2. Getting Started About The Portable Capture Station

    A power adapter and power cord. This power adapter and power cord are interchangeable with the power adapter and power cord that come with the Reader. • The warranty for the Capture Station and Reader NOTE: Contact your local reseller or Intel Customer Support if any of the contents is missing.

  • Page 17: Parts Of The Capture Station

    Portable Capture Station User Manual Parts of the Capture Station The Cradle and Connectors The cradle, located at the top of the Capture Station arm, secures the Reader to the Capture Station. The cradle also provides three connectors that connect the Reader to a power source and to other devices, such as a computer or a mouse.
  • Page 18 Chapter 2. Getting Started • The standard USB connector, in the middle, connects the Capture Station to another USB device, such as a keyboard. It is marked by two raised dots. • The power connector, on the right, keeps the Reader charged. It is marked by three raised dots.

  • Page 19: Setting Up The Capture Station

    Portable Capture Station User Manual The Base The base of the Capture Station is a flat surface that holds the printed material. The base contains the page holder, a flat strip that lies across the base. At each side of the page holder are the page holder arms, which you use to raise and lower the page holder as you insert and remove the printed material.
  • Page 20 Chapter 2. Getting Started Locate the sliders along the top edge of the case. They are marked with small indented arrows. Pull the sliders toward you, being careful not to pinch your fingers or hands.
  • Page 21 Portable Capture Station User Manual As you pull the sliders toward you, carefully lay each side of the Capture Station base on the table. Locate the release button on the front lower edge of the arm. The release button is blue and has six raised dots.
  • Page 22 Chapter 2. Getting Started Press and hold the release button while you lift the arm, until the arm latches into place. As you lift the arm, take care that you do not pinch your fingers when it locks in place.
  • Page 23 Portable Capture Station User Manual Rotate the cradle toward you until it latches into place.

  • Page 24: Connecting The Reader To The Capture Station

    Chapter 2. Getting Started Connecting the Reader to the Capture Station Slide the Reader into the cradle with the display screen facing you. Then press up on the mini-USB connector, the left-most of the three connectors at the bottom edge of the cradle. This connector is marked by one raised dot.

  • Page 25: Removing The Protective Covering

    Portable Capture Station User Manual Removing the Protective Covering The plastic strip that lies across the base of the Capture Station is the page holder. The page holder keeps pages flat so the camera can capture a better image. Before using the Capture Station for the first time, peel off the three strips of shipping tape on the base.
  • Page 26 Chapter 3 Chapter 3. Capturing Text Placing Reading Material in the Capture Station ....19 Avoiding Glare on the Page ..........20 Using the Capture Button ..........21 Using a Mouse ..............22 Using the Capture Station with Other Devices ....23 Keeping the Reader Battery Charged .......

  • Page 27: Chapter 3. Capturing Text Placing Reading Material In The Capture Station

    Portable Capture Station User Manual Chapter 3. Capturing Text Placing Reading Material in the Capture Station Locate the page holder arms on either side of the Capture Station base. Each page holder arm has six raised dots. Lift the page holder arms to raise the page holder. If the text is on a single page or lies flat on its own, you can place it on top of the page holder.

  • Page 28: Avoiding Glare On The Page

    Chapter 3. Capturing Text TIP: For best results, align the upper left corner of the reading material with the upper left corner of the base, in the area illuminated by the autofocus light. Carefully lower the page holder arms until the page holder presses the pages of the book or text flat.

  • Page 29: Using The Capture Button

    Portable Capture Station User Manual Using the Capture Button Connect the mini-USB connector into the Reader. The mini-USB is the connector on the left, on the bottom edge of the cradle. It is marked with one raised dot. Push it up to connect it to the Reader.

  • Page 30: Using A Mouse

    Chapter 3. Capturing Text Using a Mouse By connecting a mouse to the Capture Station, you can scroll through menu items, select items, capture text, and navigate through the menu tree. To use a mouse to capture text, plug the mouse into the standard USB port at the back of the Capture Station.

  • Page 31: Using The Capture Station With Other Devices

    Any device, such as a keyboard or a computer, that can be connected to the Reader can also be used when the Reader is in the Capture Station. Connect the device to the back of the Portable Capture Station, and then connect the corresponding Capture Station connector to the Reader.

  • Page 32: Keeping The Reader Battery Charged

    Chapter 3. Capturing Text Keeping the Reader Battery Charged To keep the Reader battery charged while it is in the Capture Station, connect the power to the Reader, by pushing up on the power connector at the front of the Capture Station.
  • Page 33 Chapter 4 Chapter 4. Storing the Portable Capture Station Safely Storing the Capture Station ........ 26...

  • Page 34: Chapter 4. Storing The Portable Capture Station

    Chapter 4. Storing the Portable Capture Station Safely Storing the Capture Station Before you close the Capture Station, it is important to disconnect the cables and remove the Reader. CAUTION: Do not store the Reader, power adapter, or any other items in the Capture Station carrying case.
  • Page 35 Portable Capture Station User Manual Push the arm release button and carefully lower the arm toward you until it locks into place. To prevent injury, keep your hands away from the capture button on the Capture Station base when you lower the arm.
  • Page 36 Chapter 5 Chapter 5. FAQs and Support Frequently Asked Questions (FAQs) ......... 29 Customer Support ............31...

  • Page 37: Chapter 5. Faqs And Support Frequently Asked Questions (Faqs)

    Portable Capture Station User Manual Chapter 5. FAQs and Support Frequently Asked Questions (FAQs) Question: Why are the images I capture not clear? Answer: Check the page holder. If the protective covering has not been removed from the top and bottom of the page holder, remove it now. If the page holder is damaged, replace it.
  • Page 38 Chapter 5. FAQs and Customer Support Question: What is the purpose of the three connectors on the cradle? Answer: Use the mini-USB connector to connect the Reader to the Capture Station, so that you can use the capture button on the Capture Station. Use the standard USB connector to connect the Capture Station to another USB device, such as a keyboard or external flash drive.

  • Page 39: Customer Support

    Intel recommends that you contact your local dealer or reseller before contacting Intel, if you have any questions about the Portable Capture Station. In the event your dealer or reseller is not able to resolve the issue, you can contact Intel...
  • Page 40 Appendix A Appendix A. Technical Specifications Portable Capture Station Specifications ......33...

  • Page 41: Appendix A. Technical Specifications

    Portable Capture Station User Manual Appendix A. Technical Specifications Portable Capture Station Specifications Dimension Description Capture Area Maximum size of 12.5” x 18” (0.3175 m x 0.4572 m) Maximum Book Thickness 1.9" with 0.78" margins (50mm with 20mm margins) Connectivity Passthrough power to the Reader USB 2.0 compliant type A connector...
  • Page 44 Copyright ©2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries. *Other names and brands may be claimed as the property of others.
