ITEM PART NO. QTY.
1 0D2126 1
2 0D2131 1
3 0C5088 1
4 0C5644 4
5 056326 2
6 029451 677MM
7 0C7857 4
8 070936E 4
9 0C6721 1
10 0C6722 1
11 042907 8
12 022129 8
13 022097 3
42 Generac Power Systems, Inc.
®
Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 65D Recreational Vehicle Generator

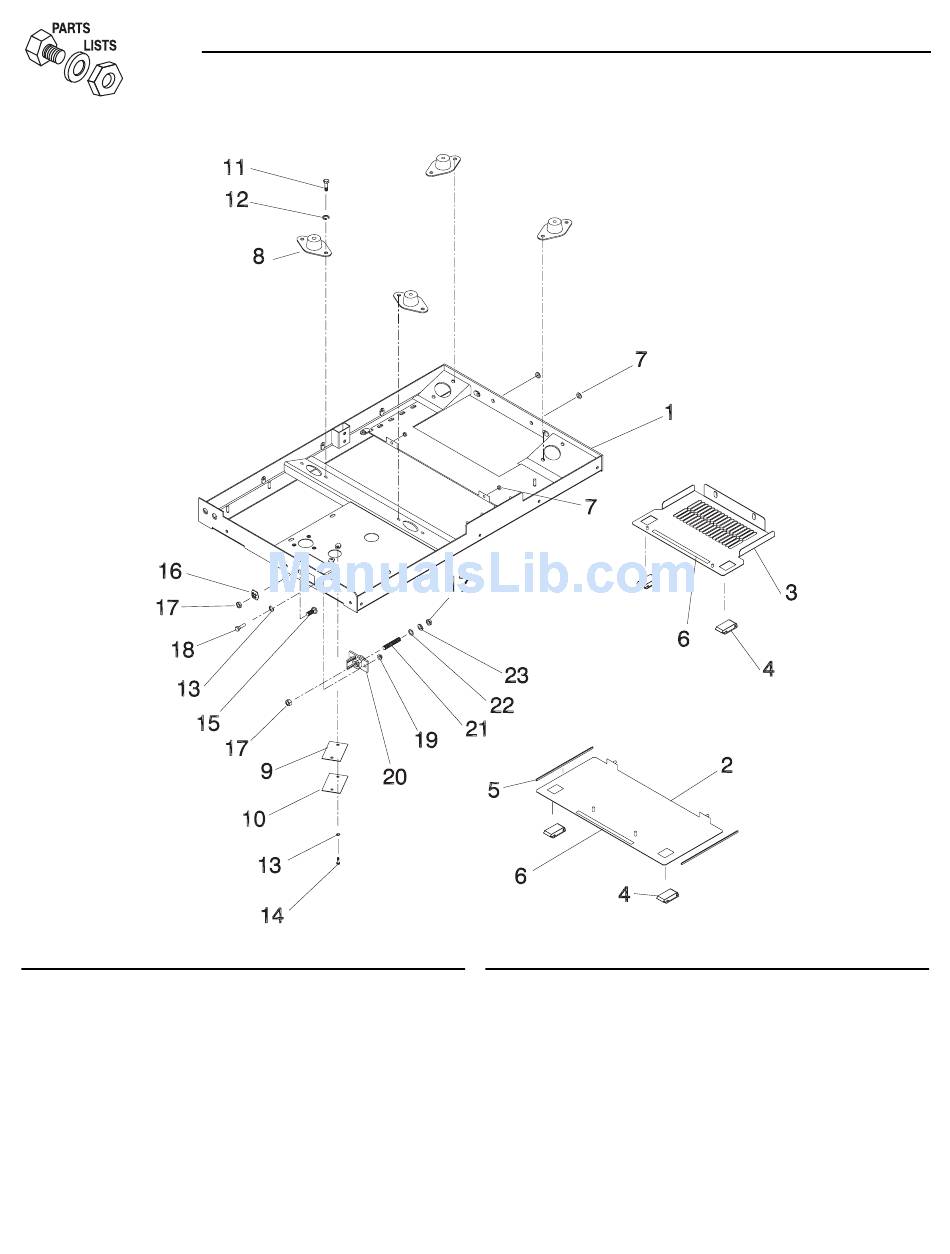

Base Frame – Drawing No. D2357-A
DESCRIPTION
BASE FRAME WELDMENT
DOOR, SERVICE REAR
DOOR, SERVICE FRONT
SLIDE LATCH FLUSH
VINYL TRIM -BLACK 180MM
RUBBER TAPE 1/8 X ½"
GROMMET 1/8 X 13/32
VIBRATION MOUNT
GASKET, CLEANOUT
PLATE, CLEANOUT
HHCS M8-1.25 X 16
WASHER, SPLIT LK- M8
WASHER, SPLIT LK -1/4-M6
ITEM PART NO. QTY.
14 043146 2
15 0C7561 1
16 0A4456 1
17 0C7968 3
18 047411 2
19 049813 2
20 0C5443 1
21 0C7423 1
22 022131 1
23 022237 1
MM = MILLIMETRES
DESCRIPTION
HHCS M6-1.00 X 10
CARRIAGE BOLT 3/8 -16 X 55MM
3/8 SPECIAL LOCK WASHER
HEX NUT 3/8-16 BRASS
HHCS M6-1.00 X 16
NUT, HEX M6.0 -1.0
BLOCK, TERMINAL BATTERY POST
STUD 3/8-16 X 55MM
WASHER 3/8 FLAT
WASHER SPLIT LK -3/8
