r e f r i g e r a t o r
INSTRUCTION BOOKLET
ER 6633 I
UK
2222 747-47

Advertisement

Table of Contents
loading

Related Manuals for Electrolux ER 6633I

Summary of Contents for Electrolux ER 6633I

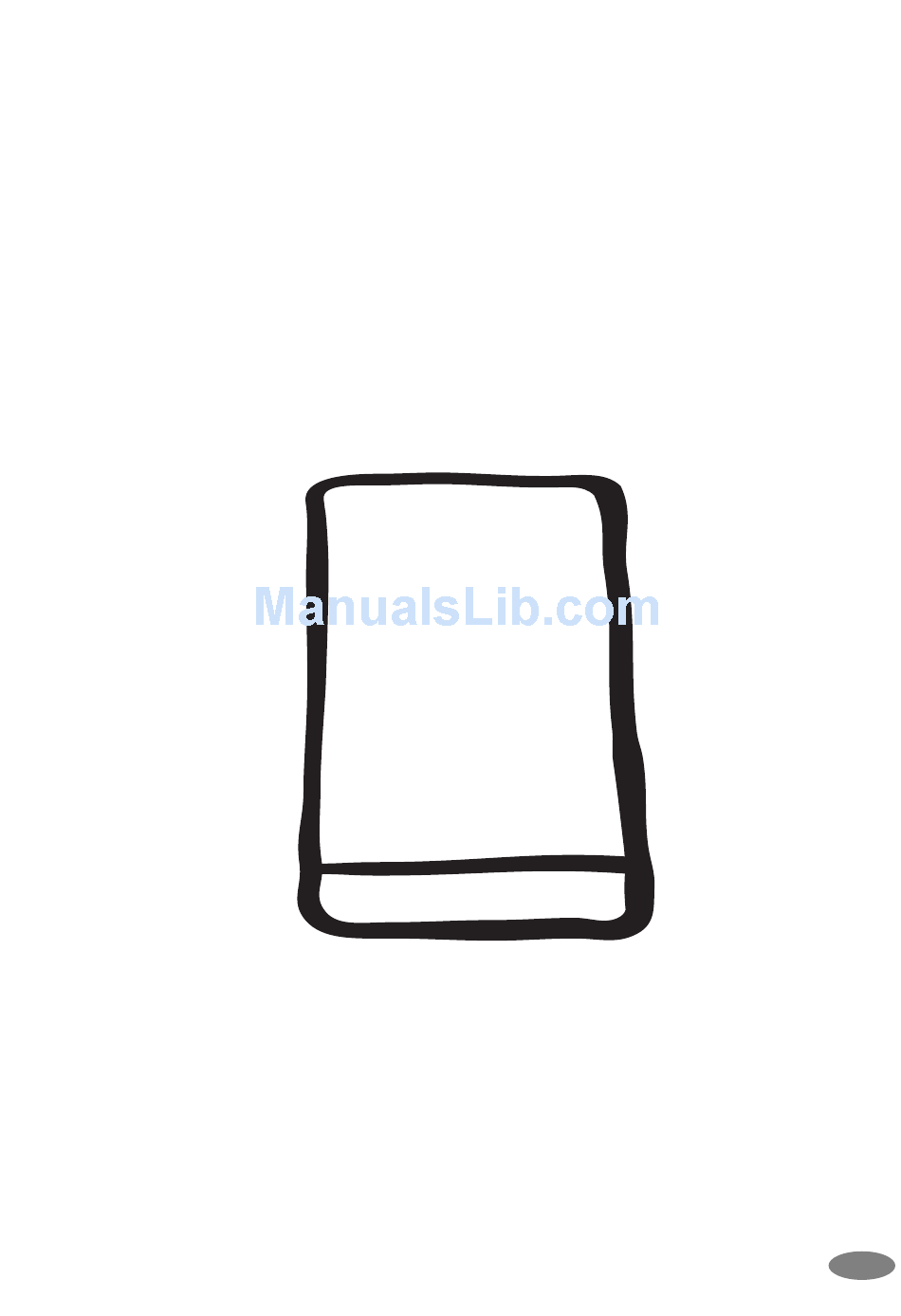

  • Page 1 r e f r i g e r a t o r INSTRUCTION BOOKLET ER 6633 I 2222 747-47...

  • Page 2: Table Of Contents

    CONTENTS Instructions for the User Instructions for the Installer Important Safety Instructions Technical specifications Description of the Appliance Installation Positioning Operation Door reversal Before use Setting the temperature Electrical Connection Fresh food refrigeration Building in The door shelves Instructions for building-in the appliance Normal Operating Sounds Health and safety guidelines...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department. Prior to Installation General Safety Check the appliance for transport damage.

  • Page 4: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Dairy compartment Can storage shelf Bottle storage shelf Salad bin Glass shelf (for storing fresh meat) Storage shelves Thermostat control OPERATION Before use Remove all securing tapes. Wash inside the When altering the temperature setting, allow 24 hours appliance with lukewarm water and bicarbonate of for the temperature to stablise before making further soda (5 ml to 0.5 litre of water).

  • Page 5: Fresh Food Refrigeration

    Fresh food refrigeration To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour. Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

  • Page 6: Normal Operating Sounds

    Normal Operating Sounds You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing at the rear, to the cooling plate. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring sound or pulsating noise from the compressor.

  • Page 7: Defrosting

    DEFROSTING The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates. Important To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator...

  • Page 8: Something Not Working

    SOMETHING NOT WORKING? Before contacting your local Service Force Centre check the following points. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. Symptom Solution No power to appliance...

  • Page 9: Service And Spare Parts

    SERVICE AND SPARE PARTS In the event of your appliance requiring service, or if When you contact the Service Force Centre you will you wish to purchase spare parts, please contact need to give the following details: your local Service Force Centre by telephoning:- 1.

  • Page 10: Guarantee Conditions

    GUARANTEE CONDITIONS Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

  • Page 11: Technical Specifications

    TECHNICAL SPECIFICATIONS POWER SUPPLY VOLTAGE AND FREQUENCY 220-240 V / 50 Hz TOTAL POWER ABSORBED 100 W AVERAGE DAILY UNITS ELECTRICITY (*) 0,49 kWh GROSS CAPACITY 158 l NET CAPACITY 154 l (*)This figure is based on standard test results in accordance with European Standard EN153. Actual consumption will depend on how the appliance is used and where it is located.

  • Page 12: Electrical Connection

    ELECTRICAL CONNECTION This appliance complies with the E.E.C. Directive WARNING: No. 87/308 of 2.6.87 relative to radio interference THIS APPLIANCE MUST BE EARTHED. suppression. The manufacturer declines any liability This appliance complies with the following should this safety measure not be E.E.C.

  • Page 13: Building In

    BUILDING IN Instructions for building-in the appliance Dimensions of the recess Height of housing mm 880 Depth of housing mm 550 Width of housing mm 560 D132 3. Press in the joint covers between the appliance and the kitchen furniture. PR 32 1.
  • Page 14 PR266 PR167 6. Separate parts A, B, C, D as shown in the figure. 9. Open the appliance door and the furniture door at 90°. Insert the small square (B) into guide (A). Put together the appliance door and the furniture door and mark the holes as indicated in the figure.
  • Page 16 © Electrolux Household Appliances Limited 2001 ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE...
