Summary of Contents for Electrolux EW 1034W

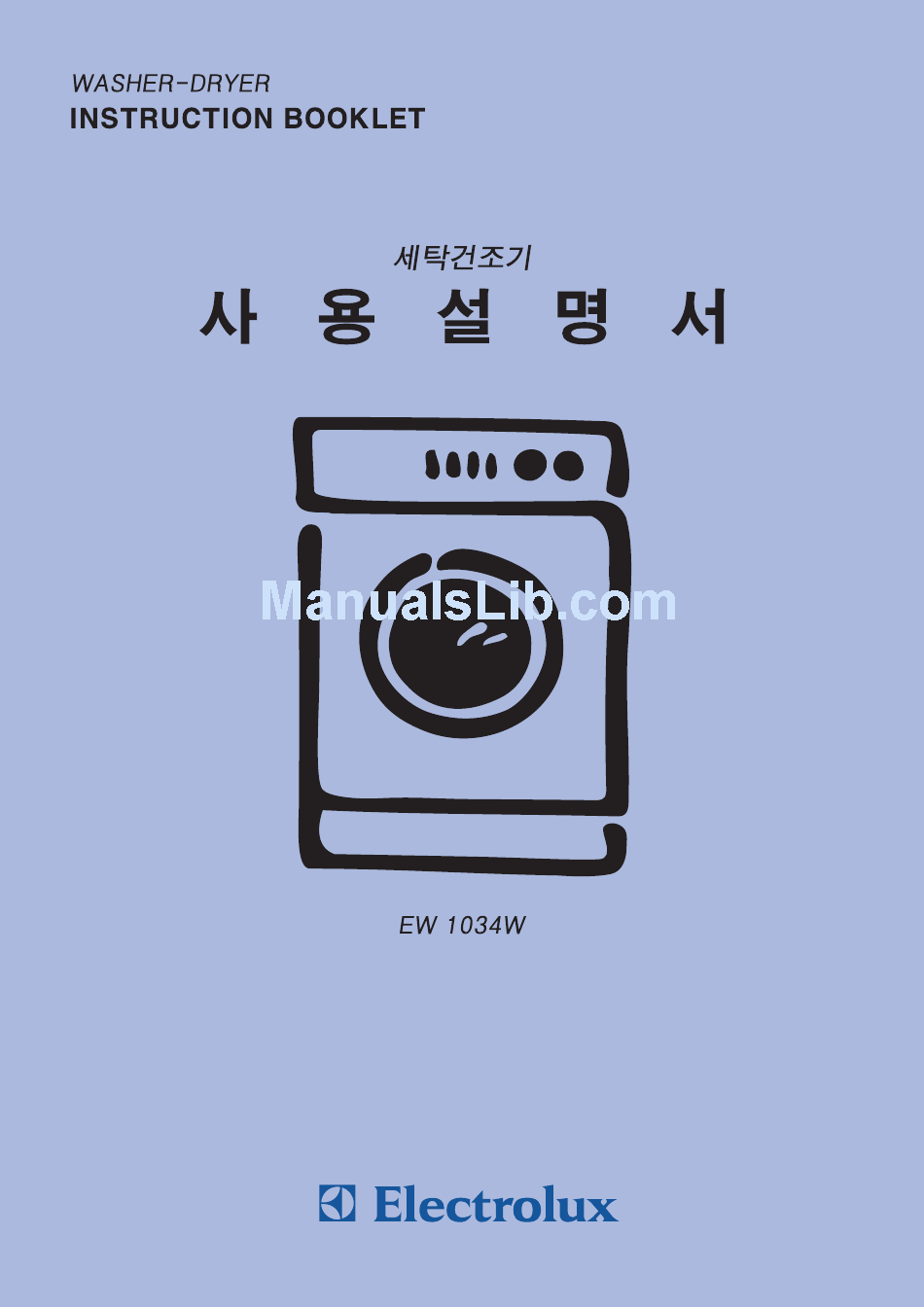

- Page 1 124 970 070...
-
Page 2: Table Of Contents
CONTENTS Warnings . Page Installation Page Unpacking . Page Positioning. Page Water inlet . Page Water drainage Page Electrical connection . Page Use. Page Control panel . Page Detergent dispenser drawer. Page Controls Page Programme selection Page Washing and drying hints Page 23-27 Detergents and additives... -
Page 3: Warnings
WARNINGS It is important that this instruction book be kept Leave the porthole door slightly ajar when the with the appliance for future reference. If you sell appliance is not in use. This preserves the door or give the appliance away, make sure that the seal and prevents the formation of musty smells. -
Page 4: Installation
INSTALLATION Unpacking Positioning All transit bolts and packing must be removed before Install the machine on a flat hard floor. using the appliance. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the Proceed as follows: machine does not touch the wall or other kitchen Using a spanner, un-... -
Page 5: Water Drainage
Water drainage Electrical connection Before plugging the appliance into the wall socket, The end of the drain hose can be positioned in three make sure that: ways: 1. the mains voltage corresponds to the voltage given Hooked over the edge in the technical specifications;... -
Page 6: Control Panel
Control panel 3 4 5 6 1 Detergent dispenser drawer and 4 Super rinse button programme chart By pressing this button on programmes for cotton and linen the machine will increase the water level in the Symbols rinse phases. Prewash This is particularly useful for people allergic to deter- gents or with delicate skin and in areas with very soft Main wash... -
Page 7: Programme Selection
Programme selection Washing only Automatic washing and drying (NON-STOP pro- gramme) Load size: – cotton, linen max 6.5 kg Automatic washing and drying is only possible – synthetics, delicate fabrics with linen, cotton and synthetic programmes. – woollens The maximum load size is 3 kg for cotton and 2 kg for synthetics. -
Page 8: Washing And Drying Hints
Washing and drying hints Removing stains Sorting the laundry Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them Follow the wash code symbols on each garment label prior to washing. and the manufacturer’s washing instructions. Blood: treat fresh stains with cold water. -
Page 9: Detergents And Additives
Detergents and additives Hints on how to save energy and protect the environment Good washing results also depend on the choice of detergent and use of the correct quantities to avoid By following these hints, you will obtain economical waste and protect the environment. Although washing without damaging the environment: biodegradable, detergents contain substances which, –... - Page 10 ENERGETIC PROGRAMMES FOR COTTON AND LINEN Washing : maximum load 6.5 kg Possible Progr. Temp. Type of laundry Cycle description options Wash at 95°C Whites, 95° 4 rinses normally soiled Spin at 1000 rpm Wash at 60°C Fast coloureds, 60° 4 rinses normally soiled Spin at 1000 rpm...
- Page 11 GENTLE PROGRAMMES FOR SYNTHETICS, MIXED FIBRES, DELICATES AND WOOLLENS Washing: maximum load 3 kg, woollens 2 kg At the end of these programmes, the last rinse water is not emptied out, so as to avoid creasing of the fabrics. To empty out the water, select programme H or P.
- Page 12 Wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not wash...
-
Page 13: Operating Sequence
Operating sequence Automatic washing plus drying (NON-STOP 5 Select the drying time operation) Turn the selector dial clockwise to the required time (light blue or yellow sector, depending on the type of This option is only possible for cottons and synthetics. fabric). -
Page 14: Maintenance
MAINTENANCE Bodywork Drain filter The drain filter collects threads and small objects Clean the outside of the machine with warm water and inadvertently left in the laundry. Check regularly that a neutral, non-abrasive household detergent. Rinse the filter is clean, especially after running drying pro- with clean water and dry with a soft cloth. -
Page 15: Something Not Working
SOMETHING NOT WORKING? Problems which you can resolve yourself Unsatisfactory washing results Too little detergent or unsuitable detergent has The machine does not start up: been used. Check that the door is firmly closed. Stubborn stains have not been treated prior to washing.
