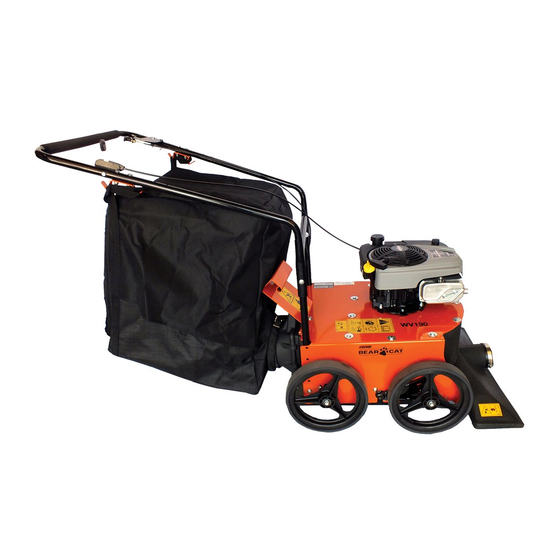

- Page 1 WV160 - honda 160cc push WV160s - honda 160cc self propelled WV190 - B&s 190cc push WV190s - B&s 190cc self propelled pn: 13888-00 rev 121409 Companion to 13887-00 sn range: a00673 - a05912...
-
Page 2: Before You Begin
If you have any questions or comments about this manual, please call us toll-free at 1-800-247-7335. If you have any questions or problems with your machine, please call or write your local authorized ECHO Bear Cat Dealer. This document is based on information available at the time of its publication. ECHO Bear Cat is continually making improvements and developing new equipment. -
Page 3: Table Of Contents
TABLE OF CONTENTS desCriPTion PaGe WV160 driVe assemBlY ............................2 WV160 enGine & Fan ..............................4 WV160 handleBar ..............................6 WV160s driVe assemBlY ............................8 WV160s enGine & Fan .............................. 10 WV160s handleBar ..............................12 WV190 driVe assemBlY ............................14 WV190 enGine &... -
Page 4: Wv160 Drive Assembly
WV160 driVe assemBlY 12/09 Page 2... - Page 5 WV160 assemBlY 12/09 WV160 driVe assemBlY iTem ParT numBer desCriPTion 12172 DECAl, PROTECTION 12574 BEARINg, 1/2 FlANgE 13851-00 ClIP, HAIRPIN ZP (ClIP NO. 13) 13890-00 DECAl, DANgER 14181-00 DECAl, 97 DB 15030 WASHER, 1/4 FlAT 15068 PIN, 5/32 X 1-1/4 COTTER...
- Page 6 WV160 enGine & Fan 12/09 Page 4...
-
Page 7: Wv160 Engine & Fan
WV160 enGine & Fan 12/09 WV160 enGine & Fan assemBlY iTem ParT numBer desCriPTion 12512 ENgINE, 5.5 HP HONDA gCV 13816-00 HOuSINg, FAN W/ INTAKE 13850-00 CAP, ROuND VINyl (4 X 1) 13890-00 DECAl, DANgER 15040 WASHER, 5/16 FENDER 15131... - Page 8 WV160 handleBar 12/09 Page 6...
-
Page 9: Wv160 Handlebar
WV160 handleBar 12/09 WV160 handleBar assemBlY iTem ParT numBer desCriPTion 13857-00 PAD, FOAM HANDlEBAR 13870-12 HANDlEBAR, BEARVAC uPPER 13874-00 CONTROl, THROTTlE 13877-00 CONTROl, HEIgHT ADJuSTMENT 15030 WASHER, 1/4 FlAT 15093 BOlT, 1/4 X 2 HEX HD 15250 WASHER, 5/16 FlAT... - Page 10 WV160s driVe assemBlY 12/09 Page 8...
-
Page 11: Wv160S Drive Assembly
WV160s driVe assemBlY 12/09 WV160s assemBlY iTem ParT numBer desCriPTion 12174 DECAl, SHIElD DANgER 12574 BEARINg, 1/2 FlANgE 13851-00 ClIP, HAIRPIN ZP (NO. 13) 13853-00 SPROCKET, 35 B10 13854-00 PullEy, 4 O.D. X 12 MM BORE 13871-00 CHAIN, #35 X 62 PITCH W/ CONN. lINK 15030 WASHER, 1/4 FlAT 15068... - Page 12 WV160s enGine & Fan 12/09 Page 10...
-
Page 13: Wv160S Engine & Fan
WV160s enGine & Fan 12/09 WV160s enGine & Fan assemBlY iTem ParT numBer desCriPTion 12172 DECAl, OPERATINg INSTRuCTIONS 12512 ENgINE, 5.5 HP HONDA gCV 13816-00 HOuSINg, FAN W/INTAKE 13850-00 CAP, ROuND VINyl (4 X 1) 13855-00 PullEy, 2.85 O.D. X 7/8 IN BORE 13884-00 BElT, SP BEARVAC (3l32) 13890-00... - Page 14 WV160s handleBar 12/09 Page 12...
-
Page 15: Wv160S Handlebar
WV160s handleBar 12/09 WV160s handleBar assemBlY iTem ParT numBer desCriPTion 0040-0137-00 STRAP, NylON TIE 12849 DECAl, 3 SPEED 13857-00 PAD, FOAM HANDlEBAR 13870-12 HANDlEBAR, BEARVAC uPPER 13874-00 CONTROl, THROTTlE 13875-00 CONTROl, TRANS. SHIFT 13876-00 CONTROl, CluTCH ENgAgEMENT 13877-00 CONTROl, HEIgHT ADJuSTMENT 15030 WASHER, 1/4 FlAT 15093... - Page 16 WV190 driVe assemBlY 12/09 Page 14...
-
Page 17: Wv190 Drive Assembly
WV190 driVe assemBlY 12/09 WV190 driVe assemBlY iTem ParT numBer desCriPTion 12172 DECAl, OPERATINg INSTRuCTIONS ISO 12574 BEARINg, 1/2 FlANgE 13851-00 ClIP, HAIRPIN ZP (ClIP NO. 13) 13890-00 DECAl, DANgER 31246-00 DECAl, 160 CC PuSH BEARVAC INFORMATION 14181-00 DECAl, 97 DB 15030 WASHER, 1/4 FlAT 15068... - Page 18 WV190 enGine & Fan 12/09 Page 16...
-
Page 19: Wv190 Engine & Fan
WV190 enGine & Fan 12/09 WV190 enGine & Fan assemBlY iTem ParT numBer desCriPTion 12415 ENgINE, 190CC B&S INTEK/IC VERT. 13816-00 HOuSINg, FAN W/INTAKE 13850-00 CAP, ROuND VINyl (4X1) 13890-00 DECAl, DANgER 15040 WASHER, 5/16 FENDER 15131 SCREW, 5/16-18 X 5/8 SQ HD SET 15154 BOlT, 5/16 X 2-1/2 HEX 15219... - Page 20 WV190 handleBar 12/09 Page 18...
-
Page 21: Wv190 Handlebar
WV190 handleBar 12/09 WV190 handleBar assemBlY iTem ParT numBer desCriPTion 13857-00 PAD, FOAM HANDlEBAR 13870-12 HANDlEBAR, BEARVAC uPPER 13874-00 CONTROl, THROTTlE 13877-00 CONTROl, HEIgHT ADJuSTMENT 15030 WASHER, 1/4 FlAT 15093 BOlT, 1/4 X 2 HEX HD 15250 WASHER, 5/16 FlAT 15350 BOlT, 5/16 X 1-3/4 CRg gR5 ZP 15355... - Page 22 WV190s driVe assemBlY 12/09 Page 20...
-
Page 23: Wv190S Drive Assembly
WV190s driVe assemBlY 12/09 WV190s driVe assemBlY iTem ParT numBer desCriPTion 0040-0137-00 STRAP, NylON TIE 12174 DECAl, SHIElD DANgER ISO 12574 BEARINg, 1/2 FlANgE 13851-00 ClIP, HAIRPIN ZP (ClIP NO. 13) 13853-00 SPROCKET, 35 B10 13854-00 PullEy, 4 O.D. X 12 MM BORE 13871-00 CHAIN, #35 X 62 PITCH W/CONN. - Page 24 WV190s enGine & Fan 12/09 Page 22...
-
Page 25: Wv190S Engine & Fan
WV190s enGine & Fan 12/09 WV190s enGine & Fan assemBlY iTem ParT numBer desCriPTion 12172 DECAl, OPERATINg INSTRuCTIONS ISO 12415 ENgINE, 190CC B&S INTEK/IC VERT. 13816-00 HOuSINg, FAN W/INTAKE 13850-00 CAP, ROuND VINyl (4X1) 13855-00 PullEy, 2.85 O.D. X 7/8” BORE 13884-00 BElT, 3l320 13890-00... - Page 26 WV190s handleBar 12/09 Page 24...
-
Page 27: Wv190S Handlebar
WV190s handleBar 12/09 WV190s handleBar assemBlY iTem ParT numBer desCriPTion 0040-0137-00 STRAP, NylON TIE 12849 DECAl, 3 SPEED 13857-00 PAD, FOAM HANDlEBAR 13870-12 HANDlEBAR, BEARVAC uPPER 13874-00 CONTROl, THROTTlE 13875-00 CONTROl, TRANS. SHIFT 13876-00 CONTROl, CluTCH ENgAgEMENT 13877-00 CONTROl, HEIgHT ADJuSTMENT 15030 WASHER, 1/4 FlAT 15093... -
Page 28: Debris Bag
deBris BaG all Models 12/09 deBris BaG iTem ParT numBer desCriPTion 13817-00 HANDlE, BAg WITH DEFlECTOR 36402-00 BAg, BEAR VAC DuST REDuCINg Page 26... -
Page 29: All Models
Models iTem ParT numBer desCriPTion 17913 DECAl, ECHO BEARCAT 18666-00 DECAl, CRARy BEARCAT 13896-00 DECAl, ECHO BEARCAT 18660-00 DECAl, CRARy BEARCAT 36679-00 DECAl, MODEl WV160 36680-00 DECAl, MODEl WV160S 36050-00 DECAl, MODEl WV190 18940-00 DECAl, MODEl WV190S Page 27... -
Page 30: Caster Wheel Kit
CasTer Wheel KiT OPTIONAl 12/09 CasTer Wheel KiT, 73607-00 iTem ParT numBer desCriPTion 13872-00 WHEEl, 4 X 2 CASTER 15006 BOlT, 3/8 X 1 gR5 HEX CAPSCREW ZP 15031 WASHER, 3/8” FlAT ZP 15368 HAIRPIN ClIP ZP #203 15388 NuT, 3/8” Nyl INSERT, NE, ZP 73671-35 WElDMENT, CASTER WHEEl MOuNT Page 28... -
Page 31: Optional
VaCuum hose KiT 12/09 OPTIONAl EXISTING 5/16" X 5/8" BOLT EXISTING 5/16" FLAT WASHER RETAIN PLASTIC CAP EXISTING 5/16" X FOR FUTURE USE 5/8" BOLT EXISTING 5/16" WASHER FOR USE WITH NOZZLE WEAR PLATE EXISTING HOSE CLAMP APPLY FOAM AROUND TO BE RE-USED PERIMETER OF SEAL PLATE. -
Page 32: Optional
housinG inTaKe Wear PlaTe KiT OPTIONAl 12/09 housinG inTaKe Wear PlaTe KiT, 73640-00 iTem ParT numBer desCriPTion 15695-00 SCREW, 1/4 X 3/4” HWH TAPPINg ZP 73675-12 guARD, NOZZlE WEAR Page 30... -
Page 33: Liner Kit
liner KiT 12/09 OPTIONAl Wheeled VaCuum liner KiT, Pn 76466-00 ParT no. desCriPTion 15239 BOlT, 1/4 X 1’ CRg 15355 NuT, 1/4 NylOCK 76464-12 lINER, VAC HOuSINg Page 31... -
Page 34: Service Parts
serViCe ParTs all Models 12/09 sPaCer is on leFT side onlY. leFT side reFers To When The oPeraTor is Behind The maChine in oPeraTion PosiTion 76371-00, VaCuum driVe Wheels KiT selF-ProPelled model iTem ParT numBer desCriPTion 12868 BOX, 18 X 18 X 8 15399 PuSHNuT, 1/2 IN 76367-00... - Page 36 Bear CaT www.bearcatproducts.com 237 NW 12th Street, West Fargo, ND 58078-0849 Phone: 701.282.5520 • Toll Free: 800.247.7335 • Fax: 701.282.9522 E-mail: service@bearcatproducts.com • sales@bearcatproducts.com...
