Summary of Contents for Electrolux ERB3902X

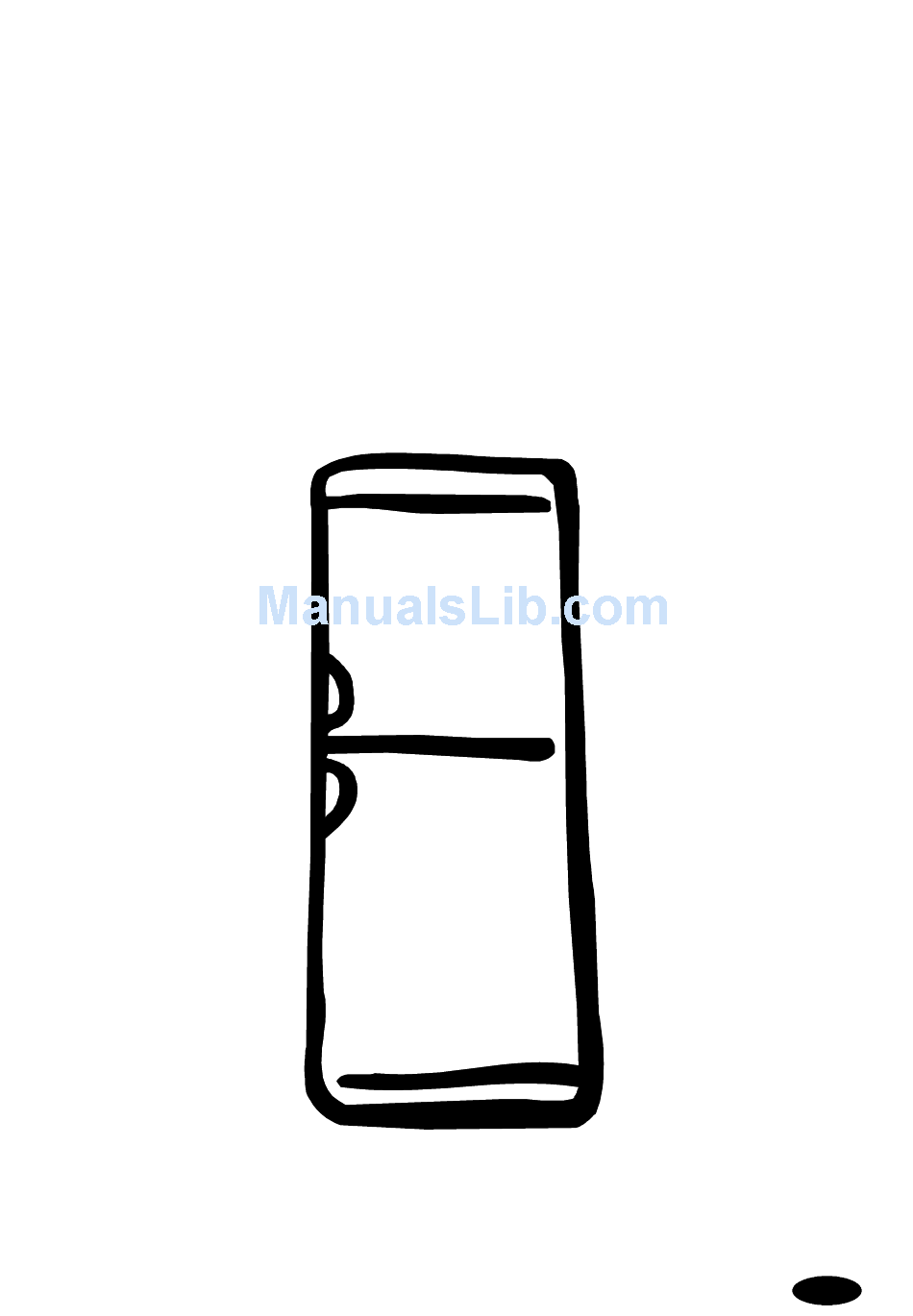

- Page 1 F r i d g e -- F r e e z e r INSTRUCTION BOOK ERB3902X 818 36 91--02/4...
-
Page 2: Table Of Contents
Safety instructions Your new fridge/freezer may have other functions compared to your previous one. Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety. -
Page 3: Description Of The Appliance
Description of the Appliance Model ERB3902X Glass shelf Bottle shelf Vegetable drawer Butter compartment Door shelf Egg holder Bottle shelf Freezer plate Freezer drawer Ventilation grille Control Panel -- 18 ACTION FREEZE ACTION COOL A. Refrigerator power switch G. Temperature display Switches the refrigerator on and off. -
Page 4: Before Use
Before use Position and clean the cabinet as explained in the section "Installation". Check that the drain hose at the rear of the cabinet discharges into the drip tray. Before inserting the power plug into the outlet and switching on the cabinet for the first time, leave it standing upright for about 4 hours. -
Page 5: Measuring The Temperature
Measuring the temperature If the temperature is measured using a standard, single thermometer, this should be put in a glass of water centrally placed inside the cabinet. This will reflect the temperature inside the food products. Do not place the thermometer hanging or lying directly on the shelf. -
Page 6: Using The Freezer
The vegetable drawer has two moveable partitions with five different choices in order to separate different vegetables. The vegetable drawer has a removable ventilation edging to increase the circulation of air and reduce the risk of condensation. Using the freezer To start the freezer and set the correct temperature - 18... -
Page 7: Alarms And Other Features
Alarms and other features Door open alarm If the door remains open for more than about 1,5 minute, the red indicator lamp starts flashing and an audible alarm sounds. - 18 To switch off the alarm: Press the alarm shut-off button. As long as the door remains open, the audible alarm will sound anew at 1-minute intervals. -
Page 8: Suitable Storage Periods
Fast freeze can be discontinued by pressing the fast freeze button once again. The yellow fast freeze lamp remains lit as long as the fast freeze button is engaged. "A" (ACTION FREEZE) is displayed in the temperature display. Practical advice on freezing ·... -
Page 9: Hints And Tips
Freezer tray Use the freezer tray to freeze berries and vegetables. After about 4 hours the food will be thoroughly frozen and can then be packaged normally. Food that is frozen in this way will not stick together, enabling you to use only the amount required. Hints and Tips Saving energy Make sure the door gasket is complete and... -
Page 10: Removing The Ventilation Grille
Cleaning Clean the cabinet at regular intervals. Don't use detergents, abrasive powders, high perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol when cleaning the product Disconnect the appliance from electricity supply. Internal Cleaning Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0,5 litre water) Rinse and dry thoroughly. -
Page 11: Defrosting The Freezer
Defrosting the freezer A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. Remove the freezer drawers and place them on top of each other by turning every other drawer one half turn. -
Page 12: Something Not Working
Something Not Working Before contacting your local Service Force Centre check the following point: Problem Possible cause / Remedy " " is displayed in the temperature An error has occurred in measuring the temperature. Call your display. service representative. (The cooling system will continue to keep food products cold, but temperature adjustment will not be possible.) Audible alarm + flashing red warning... -
Page 13: Customer Care Department
The compressor operates continuously. Set a warmer temperature. Make sure that the door is completely closed and that the insulating strip is complete and clean. The cabinet does not operate at all. The cabinet is not switched on. Cooling or interior light does not Power does not reach the cabinet. -
Page 14: Technical Specification
Technical specification Model ERB3902X Volume Refrigerator 226 l 118 l Freezer Width 595 mm Height 2000 mm Depth 623 m m Energy consumption 312 kWh/y Energy class Rated power 130W Freezing capacity 18 kg/24 hours Installation Mains Cable Do not remove the power cord by pulling on its lead, particulary when the product is being pulled out of its niche. -
Page 15: Installing The Cabinet
Installing the cabinet When two appliances are placed beside each other, the distances enclosed in the plastic wrapping should be glued between the appliances. As shown in the illustration. Make sure that the power plug is not squashed or damaged by back of the product. A damaged power plug may overheat and cause a ·... -
Page 16: Door Reversal
Door Reversal 1. Close the cabinet and remove the plug from the electrical socket. 2. Remove the ventilation grille. There is a part on the grille that can be removed. Remove and reposition it on the other side. 3. Put the cabinet on a wooden board when it is laid down. - Page 17 Electrolux 818 36 91-02/4...
- Page 18 Electrolux 818 36 91-02/4...
- Page 19 Electrolux 818 36 91-02/4...
- Page 20 www.electrolux.com MARIESTAD DT-AV...
