GE MONOGRAM ZIC360NR User Manual

Ge monogram refrigerator - refrigerator freezer user manual.

Download Manual (6 pages, 0.18 Mb) Add to your account Write a comment Upload Manual
1 2 3 4 5 6

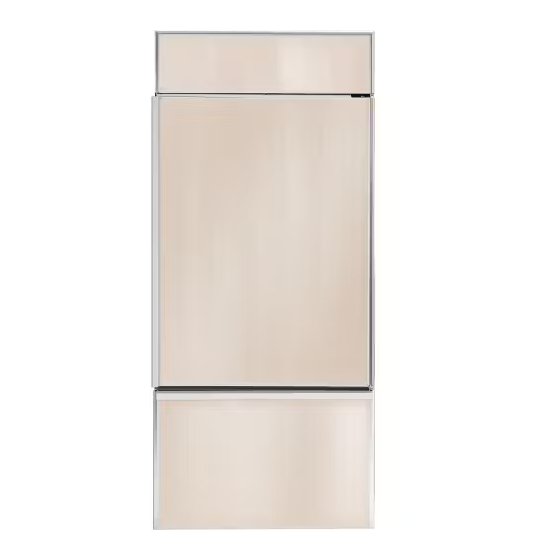

ZIC360NR – GE Monogram 36" Built-In Bottom Freezer Refrigerator
with Automatic Icemaker
The Installation Space
The finished cutout width must be 35-1/2" .
35-1/2"
Finished Width
2-5/16"
6"
10"
Electrical
Area
84-1/2" max
83-1/2" min
24" Cutout Depth
Finished
Opening
5"
Water Supply
3 1/2"
3 1/2"
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent cabinetry,
depending on your installation.
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the 24"
installation depth shown. The top case trim overlaps the bottom
of the soffit.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An individual
696Dia7
properly grounded branch circuit or circuit breaker is recommended.
Install a properly grounded 3-prong electrical receptacle recessed
into the back wall. Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
All models are equipped with an automatic icemaker. The water line can
enter the opening through the floor or back wall. Route GE SmartConnect
Kit or 1/4" O.D. copper tubing between the cold water line and the water
connection location at the front of the refrigerator. The installation of an
easily accessible shut-off valve in the water line is required.
Product Dimensions
35"
Case Depth:
Case Width
25-3/8" Framed Models
25-3/4" Stainless Steel Models
*84" From
*83-1/2"
Floor to
at
Top Frame
Rear
36"
Frame to Frame Width
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models
Specification Created 5/04
110100
429Dia9
Wall View
75" From
Floor to Bottom
of Electrical
Area
5"
*Shipping Height. The
refrigerator can be
adjusted to fit into a
cutout that is 83-1/2" min.
to 84-1/2" max. height.
The top case trim at the
front is 1/2" higher and
will overlap upper
cabinetry or soffit.
Use leveling legs and
wheels for a maximum
1" height adjustment.
Door Swing Clearances
The installation must allow for clearances to adjacent walls or cabinets.
These refrigerators are equipped with a 2-position door stop. The
factory-set 130° door swing can be adjusted to 90° if clearance to
adjacent cabinets or walls is restricted.
25"
Min. to
Wall
130° Door Swing
130°
605Dia20
Allow 25" minimum clearances for a full 130° door swing. Allow 15"
for pan removal.
• 4" minimum clearance is required when the door swing is adjusted to
90°. If the 90° door stop position is used, pan access is maintained,
but pan removal is restricted.
• See door swing illustrations to determine interaction with adjacent
cabinets or countertops.
ZUG2, ZUGSS2 Unified Grille Panel Kit
• If you are installing two refrigerators side by side, the installation space
must be 71-1/2" wide.
Note: Additional cutout width may be required when side panels are
used. Add side panel thickness to the finished cutout to calculate
rough-in width.
™
• The water and electrical locations for each product must be located
as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is recommended for
each product.
71-1/2" Finished Width
2-5/16"
Electrical
10"
84-1/2" max
24" Cutout
83-1/2" min
Depth
Finished
Opening
5"
Water Supply
26"
3-1/2"
For answers to your Monogram,
GE appliance questions, visit our website at
Listed by
Underwriters
GEAppliances.com or call
Laboratories
696Dia8
R
GE Answer Center
23-7/8"
Behind
90° Door Swing
Frame
36-3/4"
90°
4" Min.
to Wall
605Dia21
Wall View
24-3/16"
6"
10"
75" From
Floor to Bottom
of Electrical
Area
5"
Water Supply
26"
3-1/2"
GE Profile
®
service, 800.626.2000.
®
or
™
