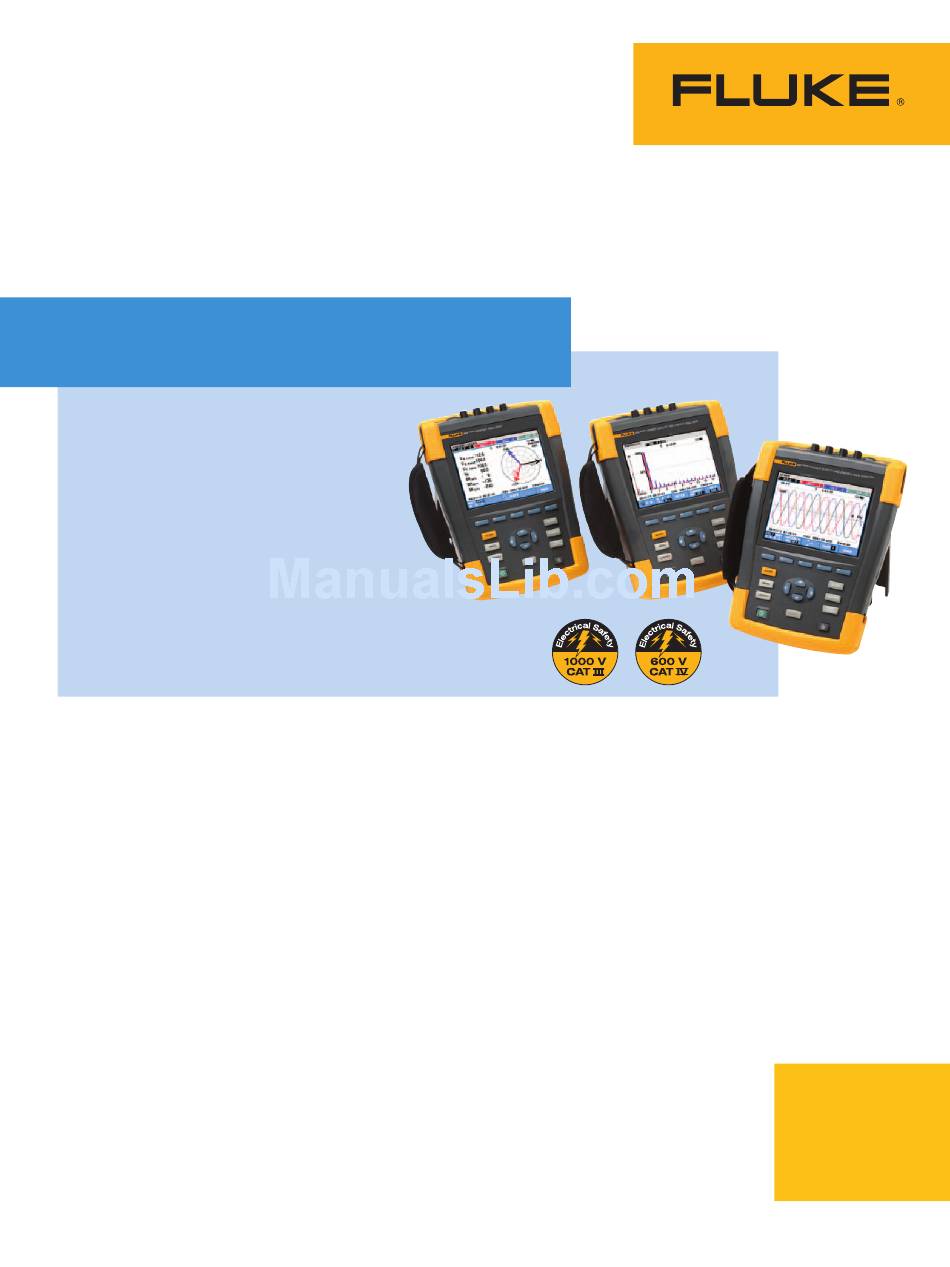

Fluke 435-II Technical Data Manual

Fluke 430 Series II
Three-Phase Power Quality
More detailed power quality analysis
capability, and a new Fluke-patented
energy monetization function
The new 430 Series II Power Quality and Energy
Analyzers offer the best in power quality analysis
and introduce, for the first time ever, the ability
to monetarily quantify energy losses.
The new Fluke 434, 435 and 437 Series II
models help locate, predict, prevent, and trouble-
shoot power quality problems in three-phase
and single-phase power distribution systems.
Additionally, the Fluke-patented energy loss
algorithm, Unified Power Measurement, measures
and quantifies energy losses due to harmonics
and unbalance issues, allowing the user to pinpoint
the origin of energy waste within a system.
• Energy loss calculator: Classic active and
reactive power measurements, unbalance and
harmonic power, are quantified to pinpoint true
system energy losses in dollars (other local
currencies available).
• Power inverter efficiency: Simultaneously
measure AC output power and DC input power
for power electronics systems using optional
DC clamp.
• PowerWave data capture: 435 and 437 Series
II analyzers capture fast RMS data, show
half-cycle and waveforms to characterize
electrical system dynamics (generator start-ups,
UPS switching etc.).
• Waveform capture: 435 and 437 Series II
models capture 100/120 cycles (50/60Hz)
of each event that is detected in all modes,
without set-up.
• Automatic Transient Mode: 435 and 437
Series II analyzers capture 200 kHz waveform
data on all phases simultaneously up to 6 kV.
• Fully Class-A compliant: 435 and 437 Series
II analyzers conduct tests according to the
stringent international IEC 61000-4-30 Class-A
standard.
• Mains signaling: 435 and 437 Series II
analyzers measure interference from ripple
control signals at specific frequencies.
Shop for Fluke products online at:
and Energy Analyzers
• 400 Hz measurement: 437 Series II analyzer
captures power quality measurements for
avionic and military power systems.
• Troubleshoot real-time: Analyze the trends
using the cursors and zoom tools.
• Highest safety rating in the industry:
600 V CAT IV/1000 V CAT III rated for use
at the service entrance.
• Measure all three phases and neutral:
With included four flexible current probes
with enhanced thin flex designed to fit into
the tightest places.
• Automatic Trending: Every measurement
is always automatically recorded, without
any set-up.
• System-Monitor: Ten power quality
parameters on one screen according to
EN50160 power quality standard.
• Logger function: Configure for any test
condition with memory for up to 600
parameters at user defined intervals.
• View graphs and generate reports:
With included analysis software.
• Battery life: Seven hours operating time
per charge on Li-ion battery pack.
