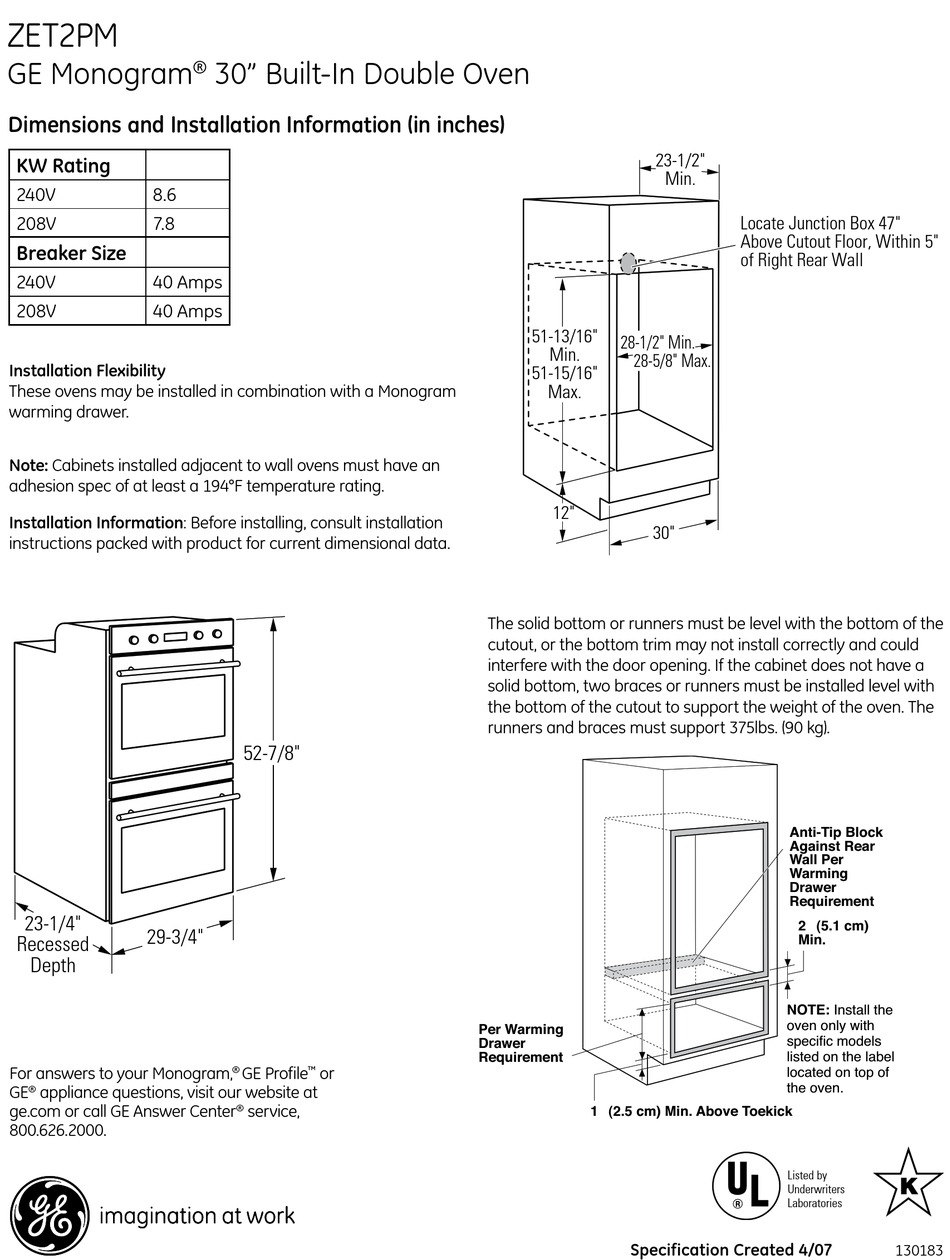

GE Monogram ZET2PM Dimensions And Installation Information

ZET2PM
GE Monogram
Dimensions and Installation Information (in inches)
KW Rating
240V 8.6
208V 7.8
Breaker Size
240V 40 Amps
208V 40 Amps
Installation Flexibility
These ovens may be installed in combination with a Monogram
warming drawer.
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data. Locate Junction Box 47"
Above Cutout Floor, Within 5"
of Right Rear Wall
23-1/4"
29-3/4"
Recessed
Depth
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
30" Built-In Double Oven
®
52-7/8"
GE Profile or
® ™
service,
®
23-1/2"
51-13/16"
28-1/2" Min.
Min.
28-5/8" Max.
51-15/16"
Max.
12"
30"
The solid bottom or runners must be level with the bottom of the
cutout, or the bottom trim may not install correctly and could
interfere with the door opening. If the cabinet does not have a
solid bottom, two braces or runners must be installed level with
the bottom of the cutout to support the weight of the oven. The
runners and braces must support 375lbs. (90 kg).
Per Warming
Drawer
Requirement
1 (2.5 cm) Min. Above Toekick
Specification Created 4/07
Min.
Locate Junction Box 47"
Above Cutout Floor, Within 5"
of Right Rear Wall
23-1/4"
Recessed
Depth
Anti-Tip Block
Against Rear
Wall Per
Warming
Drawer
Requirement
2 (5.1 cm)
Min.
NOTE: Install the
oven only with
specific models
listed on the label
located on top of
the oven.
Listed by
Underwriters
Laboratories
52-7/8"
29-3/4"
130183
