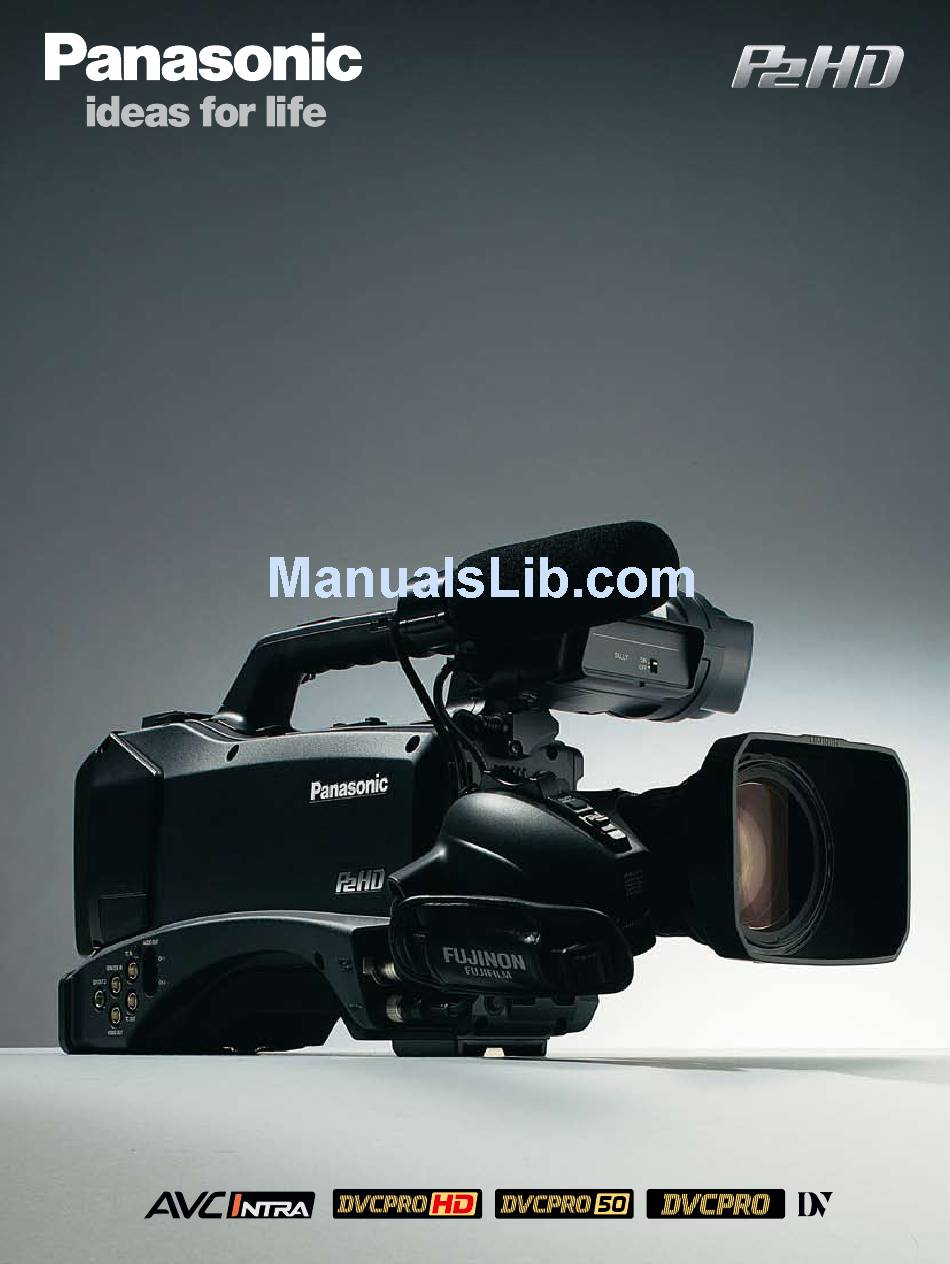

- Page 1 AG-HPX370 series Memory Card Camera Recorder (AG-HPX370/371/372/374) A Breakthrough P2 Cam with High Image Quality and High Sensitivity. *Shown above with Standard Lens,Permanetly-set Viewfinder, Optional Microphone, and Optional Battery.
-
Page 2: H I G H Q U A L I T Y
H I G H Q U A L I T Y & A New Full-HD U. L. T. (Ultra Luminance Technology) Image Sensor Rivals Panasonic’s AG-HPX370 series P2 HD camera recorder moves you up to a whole new level of production quality. A new, state-of-the-art 2.2 megapixel 3-chip U.L.T. -
Page 3: H I G H S E N S I T I V I T Y
P2 Card Users can also take advantage of a special five- power. For example, the AG-HPX370 series year free-repair service program that Panasonic uses about 51% less power than the tape- offers for P2 HD equipment. -
Page 4: Camera Section
Camera Section The AG-HPX370 series features a newly developed camera section with a 2.2-megapixel image sensor and 20 bit digital signal processor. Image quality is outstanding. Newly Developed U.L.T.* Image Sensor with F10* Fujinon High-Performance 17x Zoom Lens Sensitivity and Superb Image Quality The AG-HPX370 series comes equipped with a Fujinon 1/3-inch 17x zoom lens. - Page 5 This is called the flash band F5: CINE V Cine-Like setting shifted to prioritize contrast* effect. The AG-HPX370 series is equipped with highly accurate flash F6: CINE D Cine-Like setting shifted to prioritize dynamic range* band detection and compensation software on the camera’s signal *Selecting this file does not change the video recording format.
- Page 6 P2 card. 100% (Standard) 92% (Slow) 115% (Quick) *In 25 pN mode in 50 Hz system mode, AG-HPX370 series records only 25 frames instead of 96% (Slow) 89% (Slow) 111% (Quick) the normal 50 frames •...
- Page 7 *24p = 23.98p, 30p = 29.97p, 60p = 59.94p and 60i = 59.94i Scan Reverse Function for Use with Film Lenses The AG-HPX370 series comes with scan reverse. This function cancels the image inversion that occurs when a Cinema lens adaptor is used.
- Page 8 With the same bit rate as DVCPRO HD, this mode supports full 10 bit included as standard equipment. recordings with 1920 x 1080 pixels. It enables the AG-HPX370 series to It allows recording in either of two capture master-quality video for high-end video production.
- Page 9 48-kHz/16 bit, 4-Channel Digital Audio The AG-HPX370 series also supports the conventional DVCPRO HD The AG-HPX370 series can record full 48-kHz/16 bit digital audio on all codec. Because the AG-HPX370 series are designed to be used with the four channels. You can freely select the audio source for each channel, AG-HPX170 series/HVX200A series or a DVCPRO HD VTR, it adapts to choosing from mic-in, line-in and wireless receiver.
- Page 10 Immediate Startup and Better Data Protection Clip Thumbnail Function When you press the Record button in standby mode, the AG-HPX370 The P2 HD camcorder automatically generates a thumbnail image for series instantly finds a blank area on the P2 card and begins recording. It each clip.
- Page 11 Text information can also be consecutive cuts written into each memo using the AG-HPX370 series or a PC with P2 Viewer installed. A shot mark, which allows convenient OK and NG REC STOP...
-
Page 12: Operation
The new design improves mobility and operating ease while supporting a variety of assist functions. New Design for an enhanced Level of Mobility The AG-HPX370 series innovative new form brings greater mobility, comfort and operating ease to the familiar shoulder-held shooting style. - Page 13 Three User Buttons All operation switches and volume controls are set on the left side of the The AG-HPX370 series allows 16 functions (listed below) to be assigned camera. P2 card slots, which were set on the right side in previous to the User buttons.
-
Page 14: System Interface
System Interface The AG-HPX370 series comes equipped with a wealth of interfaces. New Camera Studio System For use with the AG-HPX370 series, the AG-EC4G Extension Remote A camera extension system to support low-cost studio integration. Two Control Unit, which enables full control over image adjustments and... - Page 15 VTR or P2 HD recorder for degradation-free backup recording. *The AJ-RC10G can control only functions supported by the AG-HPX370 series. It cannot * Output is not possible in 720p native mode (25pN), Interval-rec, and One-shot rec mode.
-
Page 16: System Workflow
Memory Card (P2 card E series* *1: P2 card E series may require to update the software of P2 equipment. please go to the P2 support page from the Panasonic web page https://eww.pavc.panasonic.co.jp/pro-av/ *2: Before using P2 card E series, you must install the latest version of the software in the AJ-PCD35. -
Page 17: Optional Accessories
Memory Card Portable Recorder Hard Disk Storage Unit Viewing Software Contents Management Software [Coming Soon] “P2 Portable” “P2 Rapid Writer” (Download Free* (Download Free* AVC-Intra supported. SDI-Input available. *3: For P2 Viewer or P2 CMS download and operating requirement information, visit https://eww.pavc.panasonic.co.jp/pro-av/. - Page 18 Viewfinder (fixed) IEEE1394 (not available for AVC-I) HD SDI AG-HPG20 P2 portable Fujinon 17x zoom Lens SD/SDHC Memory Card AG-HPX370 series SHAN-TM700 BT-CS80G VF Cable* BT-LH80WU Tripod Adapter Shoulder Strap 7.9" LCD Monitor* *1: VF cable cannot be used. .
-
