AJ-HPX3100G
Memory Card Camera Recorder

Advertisement

Table of Contents
loading

Related Manuals for Panasonic AJ-HPX3100G

Summary of Contents for Panasonic AJ-HPX3100G

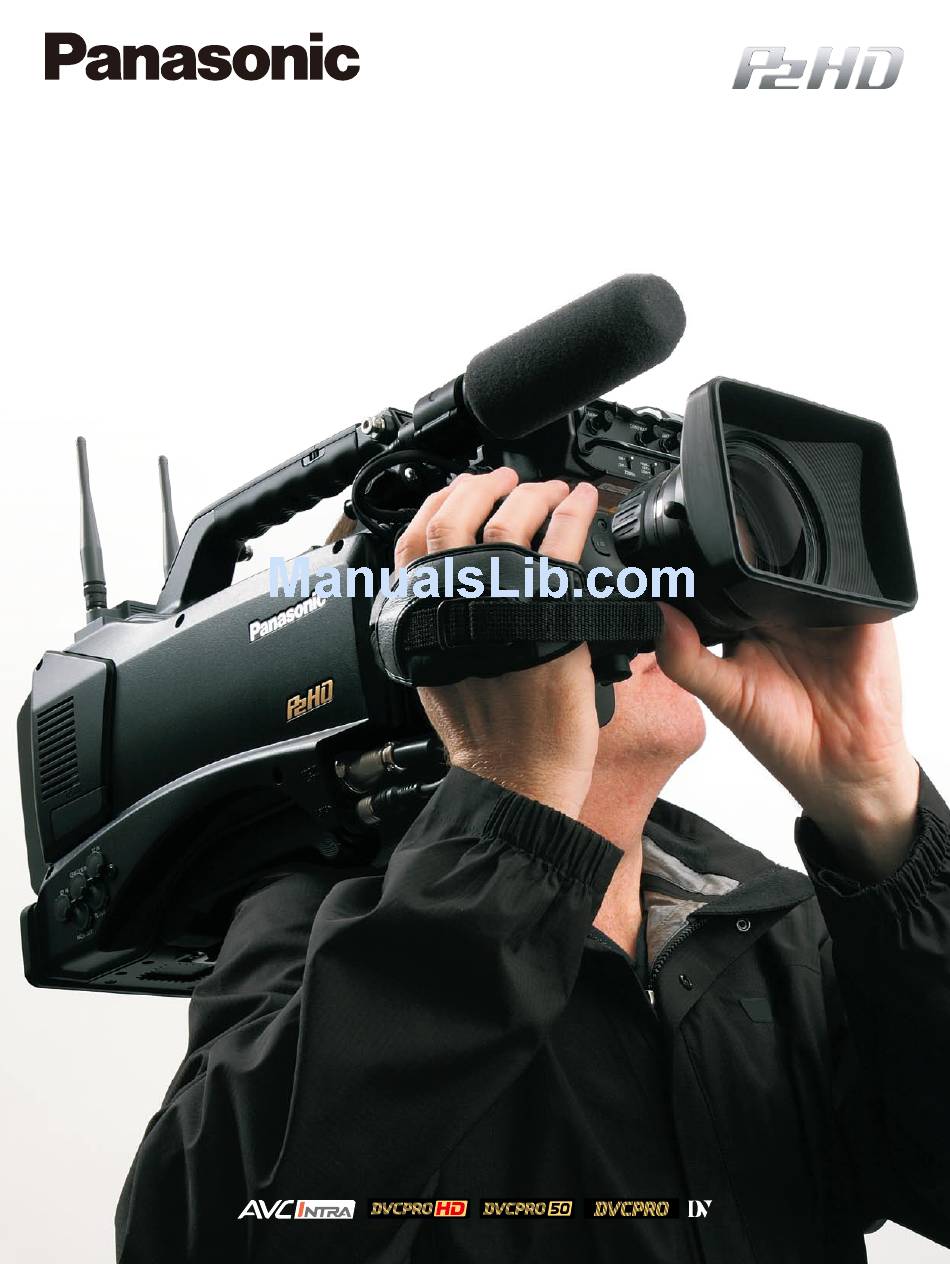

  • Page 1 AJ-HPX3100G Memory Card Camera Recorder...
  • Page 2 AJ-YDX30G Video Encoder Board is required. *5: The optional AJ-WM30 Wireless Module and AJ-SFU3100G Upgrade Software Key are required. *6: You may need to update its firmware. Please refer to the “service and support” on the Panasonic Website (http://pro-av. panasonic.net/). Requires the optional AJ-P2AD1G Memory Card Adapter to use the microP2 Card .
  • Page 3 *3: The optional AJ-YDX30G Video Encoder Board is required for use of proxy data. *4: Proxy data can be saved only in PCs/Macs. *5: AJ-HPX3100G may need to be updated. Please refer to the following web site for details. http://pro-av.panasonic.net/ Picture simulated The use of DCF Technologies is under license from Multi-Format, Inc.
  • Page 4 The high-performance DSP circuit The digital super gain (frame cumulative mode) lets the provides rich gradation and AJ-HPX3100G record with a high S/N ratio* and less of the noise superb color reproduction based that commonly comes with higher gain. The gain and digital super on 14 bit A/D conversion.

  • Page 5: User Buttons

    (1 inch) 1,500,000-dot-equivalent (960 x 540 x 3 [RGB]) transmission- type LCOS (Liquid Crystal On Silicon) to achieve high resolution, high The AJ-HPX3100G scan reverse function cancels the image inversion brightness and high response. It helps to reduce the possibility of that occurs when Angenieux or Canon HD lens adaptors are used.
  • Page 6 The AVC-Intra mode supports 24 bit digital audio recording* (16-bit using it to preview video. In normal use, there is no chance of for DVCPRO HD, DVCPRO and DV). The AJ-HPX3100G offers accidentally overwriting a recording. Recordings will not be erased 4-channel audio in all recording modes.

  • Page 7: Advanced Recording Functions

    The AJ-HPX3100G records the A/V data for each recording as a file • Pre-rec: This stores approximately 8 seconds of video and audio on the P2 card, which eliminates the need for digitizing. The files can...
  • Page 8 *3: Proxy data can be saved only in PCs/Macs. filter position, metadata and others can be checked remotely. *For the latest information, see “Support & Download” on the Panasonic website (http:// • Proxy video* playback and storage* : Recorded video clips can pro-av.panasonic.net/).
  • Page 9 Control Unit* offer both studio use and direct connection to the front/rear switching function automatically selects the rear input AJ-HPX3100G. This lets you adjust the images and control the signal when input is connected to the rear terminal. camera operation while viewing the monitor.

  • Page 10: S Y S T E M W O R K F L O W

    *1: The optional AJ-SFU3100G Upgrade Software Key is required. *2: Proxy data can be stored and transferred by Mac/PC only. *3: The AG-MBX10 Removable SSD Interface Box is required. Use a commercially available optional SSD (must be a model for which compatibility has been confirmed by Panasonic). *4: Must support proxy video data. *5: To link with an off-line editing system, compatibility with project data of the off-line editing system is required.
  • Page 11 *1: The P2 card E Series may require P2 equipment software to be updated. Please go to the P2 support page on the Panasonic web page https://eww.pavc.panasonic.co.jp/pro-av/ *2: Use a commercially available removable SSD that is recommended by Panasonic. In addition to the removable SSD interface box that comes with the AG-MSU10 as a standard accessory, an additional AG-MBX10 can be purchased as an option.

  • Page 12: Optional Accessories

    The use of Canon, Fujinon and Angenieux lenses with CAC (Chromatic Aberration Compensation) is recommended. * For the latest information on CAC applicable lenses, see “Support & Download” on the Panasonic website (http://pro-av. Anton/Bauer panasonic.net/). The installation of CAC data might be required depending on Ultra Light the lens.

  • Page 13: Specifications

    S p e c i f i c a t i o n S a S o f J u n e , 2 0 1 3 General Specification Digital Video Power Supply: DC12V (11V to 17V) Sampling Frequncy: AVC-Intra 100/AVC-Intra 50/DVCPRO HD: Y: 74.1758 MHz, P : 37.0879 MHz (59.94 Hz) Power Consumption: 34W (main unit only)
  • Page 14 HD content on Windows PCs and Macs. For P2 Viewer Plus or P2 CMS download and operating requirement information, visit http://pro-av.panasonic.net/. For operating requirements and details of other P2 editing software, visit the website of the relevant software manufacturer.
