Pioneer DVH-3150UB Operation Manual

Dvd receiver
Hide thumbs Also See for DVH-3150UB:
Table of Contents

Advertisement

Quick Links

DVD RECEIVER
DVH-3150UB
Operation Manual
English

Advertisement

Table of Contents
loading

Related Manuals for Pioneer DVH-3150UB

Summary of Contents for Pioneer DVH-3150UB

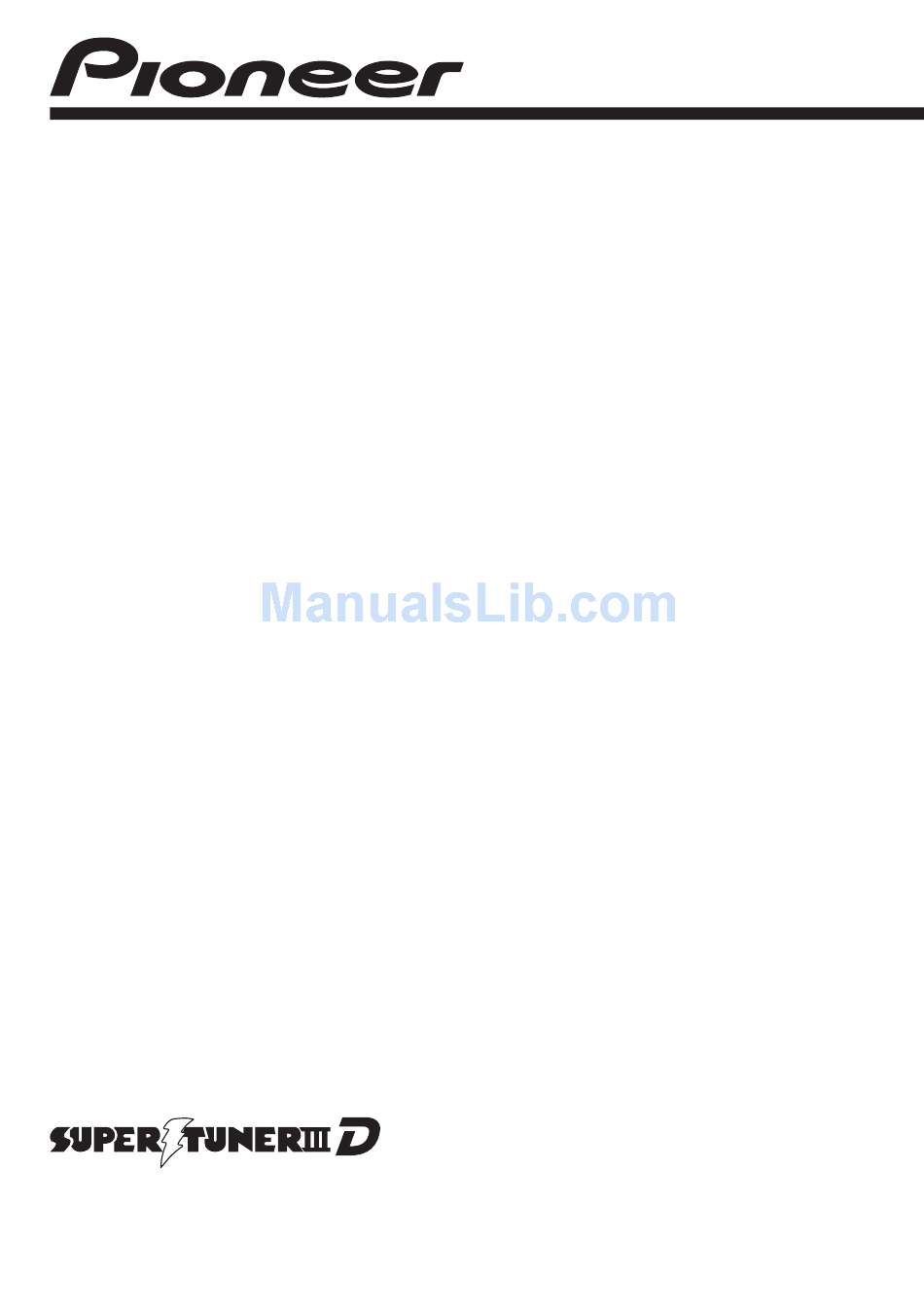

  • Page 1 DVD RECEIVER DVH-3150UB Operation Manual English...

  • Page 2: Table Of Contents

    Contents Thank you for purchasing this PIONEER product. Please read through this manual before using the product for the first time, to en- sure proper use. After reading, please keep the manual in a safe and accessible place for future reference.
  • Page 3 Contents – Switching the information display 24 – Setting the FM tuning step 35 – Setting the AM tuning step 36 USB portable audio player/USB memory 26 – Basic Operations 26 – Switching the auxiliary setting 36 – Switching the media file type 26 –...

  • Page 4: Dvd Video Disc Region Numbers

    ! We offer the latest information about Also, damage to this unit, smoke, and over- heating could result from contact with liquids. Pioneer Corporation on our website. ! “CLASS 1 LASER PRODUCT” This product contains a laser diode of higher Features class than 1.

  • Page 5: When An Operation Is Prohibited

    Section Before You Start ® MP3 file playback Plays all versions of DivX video (including ® ® You can play back MP3 files recorded on CD- DivX 6) with standard playback of DivX R/RW/ROM (ISO9660 Level 1/Level 2 stan- media files dard), DVD-R/RW/ROM (ISO9660 Level 1/Level 2 standard, UDF 1.02) and USB storage device When an operation is...

  • Page 6: Attaching The Front Panel

    Section Before You Start Attaching the front panel CAUTION Slide the front panel to the left until it ! Use one CR2025 (3 V) lithium battery. clicks. ! Remove the battery if the remote control is not Front panel and the head unit are jointed on used for a month or longer.

  • Page 7: Operating This Unit

    What’s what memory is projected forward from the unit, it is dangerous to connect directly. Head unit Pioneer CD-U50E USB cable is also avail- able. For details, consult your dealer. (detach) button Press to remove the front panel from the head unit.
  • Page 8 Section Operating this unit — Pressing a is the same function as turning MULTI-CONTROL right. — Pressing b is the same function as turning MULTI-CONTROL left. — Pressing c is the same function as pressing DISP/BACK/SCRL. — Pressing and holding c is the same function as pressing and holding DISP/BACK/SCRL.

  • Page 9: Remote Control

    Section Operating this unit Remote control Button names DVH mode DVD and S-DVD mode Press to cycle through all the available sources. Press and hold to turn the source SOURCE button off. Press to quickly lower the volume level by about 90%. Press once more to return ATT button to the original volume level.

  • Page 10: Using The Remote Control Operation Mode Switch

    Section Operating this unit CM BACK/CM SKIP but- Press to skip progressively backward/forward through the video playing. tons DIRECT button Press to select channels directly. Not used. A.MENU button Press to select various sound quality controls. FUNC button Press to select functions. Press 0 to 9 to input numbers.

  • Page 11: Display Indication

    Section Operating this unit ! The thumb pad on the remote control can (artist) indicator perform the same operations as Appears when the disc (track) artist name is MULTI-CONTROL on the head unit. displayed on the main display section. (disc) indicator DVD mode operation Appears when the disc (album) name is dis- If you switch the mode to DVD, the thumb pad...

  • Page 12: Basic Operations

    Section Operating this unit Basic Operations terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the Power ON/OFF antenna, turn the source off. Turning the unit on Adjusting the volume % Press SRC/OFF to turn the unit on. % Turn VOLUME to adjust the sound Turning the unit off level.

  • Page 13: Tuner

    Section Operating this unit Tuner Introduction to advanced operations Basic Operations Press MULTI-CONTROL to display the % Selecting a band main menu. Press BAND/ESC. # Band can be selected from among FM1, FM2, Use MULTI-CONTROL to select FM3 or AM. FUNCTION.

  • Page 14: Tuning In Strong Signals

    Section Operating this unit Press MULTI-CONTROL to turn BSM on. Built-in DVD player The six strongest broadcast frequencies are Basic Operations stored in the order of their signal strength. # To cancel, press MULTI-CONTROL again. % Inserting a disc into the disc loading slot # When loading a disc, face the label side of Tuning in strong signals...

  • Page 15: Basic Playback Controls

    Section Operating this unit # When playing DVD video or Video CD, fast for- Basic playback controls ward/fast reverse may not be possible at certain The table below shows the basic controls for locations on some discs. If this happens, normal playing discs.

  • Page 16: Operating The Dvd Menu

    Section Operating this unit Operating the DVD menu Playing DivX VOD content ® Some DVDs allow you to select from the disc Some DivX VOD (video on demand) content contents using a menu. may only be playable a fixed number of times. ! This function is available for DVD video.

  • Page 17: Resume Playback (Bookmark)

    Section Operating this unit % To skip progressively backward or for- Specifying title ward, press CM BACK or CM SKIP. ! This function is available for DVD. Each time you press CM BACK or CM SKIP it ! To perform this function, set the remote changes steps in the following order: control to DVD mode.

  • Page 18: Changing Audio Language During Playback (Multi-Audio)

    Section Operating this unit Press DIRECT. nected, DTS audio will not be output, so select an audio setting other than DTS. Press 0 to 9 to input the desired num- ! Display indications such as Dolby D and Mch ber. indicate the audio system recorded on the # To cancel the inputted numbers, press CLEAR.

  • Page 19: Changing The Viewing Angle During

    Section Operating this unit Changing the viewing angle Frame-by-frame playback during playback (Multi-angle) This lets you move ahead one frame at a time during playback. With DVDs featuring multi-angle (scenes shot ! This function is available for DVD, DivX from multiple angles) recordings, you can disc and Video CD.

  • Page 20: Automatic Playback Of Dvds

    Section Operating this unit % Press RETURN to return to the specified For compressed audio files scene. Play time—FLD NAME (folder name)— # If a specified scene has not been prepro- FILE NAME (file name)—TRACKTITLE (track title)—ARTISTNAME (artist name)— grammed in DVD disc, this function is not possi- ALBUMTITLE (album title)—COMMENT ble.

  • Page 21: Selecting Files From The File Name List

    Section Operating this unit # If you do not operate the list within about 30 Press LIST/ to switch to the title list mode. seconds, the display automatically returns to the ordinary display. Use MULTI-CONTROL to select the de- sired title. Selecting tracks from the track Turn to change the title.

  • Page 22: Selecting A Repeat Play Range

    Section Operating this unit Turn MULTI-CONTROL to select the For compressed audio and DivX, play range function. can be selected from DISC (disc repeat), For DVD video and Video CD FOLDER (folder repeat) and TRACK (file re- REPEAT (repeat play)—LR SELECT (audio out- peat).

  • Page 23: Playing Tracks/Files In Random Order

    Section Operating this unit Playing tracks/files in random Selecting audio output order When playing DVD video discs recorded with LPCM audio, you can switch the audio output. Tracks/files in a selected repeat range are When playing Video CD discs, you can switch played in random order.

  • Page 24: Selecting The Play Mode

    Section Operating this unit Note Note You can also perform this operation in the menu You can also perform this operation in the menu that appears by using MULTI-CONTROL. that appears by using MULTI-CONTROL. Selecting the play mode Rotating the displayed picture ! This function is available for JPEG files.
  • Page 25 Section Operating this unit For DVD-VR discs Information display 1—Information display 2 —Disc name display—Title display—Normal playback display For Video CDs Information display—Normal playback display For JPEG files and DivX discs Information display—Folder name display— File name display—Normal playback display For CD TEXT discs and compressed audio files Title display...

  • Page 26: Usb Portable Audio Player/Usb Memory

    Section Operating this unit ! If a USB storage device contains a mixture of USB portable audio player/ various media file types such as JPEG and USB memory compressed audio, you can switch between You can play compressed audio files and JPEG media file types to play.

  • Page 27: Selecting Files From The File Name List

    Section Operating this unit Selecting files from the file Function name Operation name list Refer to Selecting a repeat play The operation is the same as that of the built- range on page 22. However, the repeat play ranges in DVD player. you can select are different from Refer to Selecting files from the file name list that of the built-in DVD player.

  • Page 28: Switching The Information Display

    Section Operating this unit Switching the information display Press MULTI-CONTROL to display the setting mode. The operation is the same as that of the built- in DVD player. Press MULTI-CONTROL to select the seg- Refer to Switching the information display on ment you wish to set.

  • Page 29: Adjusting Equalizer Curves

    Section Operating this unit ! The AM volume level can also be adjusted Adjusting equalizer curves with source level adjustments. You can adjust the currently selected equalizer curve setting as desired. Adjusted equalizer Compare the FM volume level with the curve settings are memorized in CUSTOM.

  • Page 30: Setting Up The Dvd Player

    Section Operating this unit Setting up the DVD player Setting the subtitle language You can set a desired subtitle language. If the Introduction of DVD setup selected subtitle language is recorded on the adjustments DVD, subtitles are displayed in that language. You can use this menu to change audio, subti- Move the thumb pad up or down to se- tle, parental lock and other DVD settings.

  • Page 31: Setting The Menu Language

    Section Operating this unit Move the thumb pad up, down, left or Setting the on screen display right to select the desired audio language. language Click the thumb pad. You can set the preferred language for infor- The audio language is set. mation display, DVD setup menu and list dis- # Pressing RETURN takes you back to the pre- play etc.

  • Page 32: Setting The Aspect Ratio

    Section Operating this unit Click the thumb pad to select on or off. Setting the slide show interval Each time you click the thumb pad the se- Slide show is possible when JPEG files are lected setting switches on or off. playing with this unit.

  • Page 33: Setting The Divx Subtitle File

    Section Operating this unit Press 0 to 9 to input a four digit code Move the thumb pad left or right to number. move the cursor to the previous or next po- sition. Move the thumb pad left or right to move the cursor to the previous or next po- Click the thumb pad after entering the sition.

  • Page 34: Setting For Digital Output

    Section Operating this unit ! Make a note of the code as you will need it Notes when you register with a DivX VOD provider. ! Up to 42 characters can be displayed on one # Pressing RETURN takes you back to the pre- line.

  • Page 35: Initial Settings

    Section Operating this unit Initial Settings Use MULTI-CONTROL to select CLOCK SET in the initial setting menu. Adjusting initial settings Refer to Adjusting initial settings on this page. Using the initial settings, you can customize Press MULTI-CONTROL to display the various system settings to achieve optimal per- setting mode.

  • Page 36: Setting The Am Tuning Step

    Section Operating this unit # You can also perform the same operations by Use MULTI-CONTROL to select AUX1/ pressing a or b. AUX2/AUX in the initial setting menu. Refer to Adjusting initial settings on the pre- Press MULTI-CONTROL to determine vious page.

  • Page 37: Setting The Display Connection On Or Off

    Section Operating this unit ! Playing a compressed audio file and pressing Press MULTI-CONTROL to display the setting mode. DISP/BACK/SCRL in the file name list — When the display connection is set to on, # Press DISP/BACK/SCRL to return to the pre- the name of the currently playing file is se- vious display.

  • Page 38: Other Functions

    Section Operating this unit Other Functions Selecting AUX as the source % Press SRC/OFF to select AUX (AUX1 or Using the AUX source AUX2) as the source. For Southeast Asian models # If the auxiliary setting is not turned on, AUX Up to two auxiliary devices such as VCR or cannot be selected.
  • Page 39 Section Operating this unit % Press BOOKMARK to turn pause on when selecting the following sources: ! DVD – Built-in DVD player ! USB – USB portable audio player/USB memory # To turn pause off, press BOOKMARK again. % Press BOOKMARK and hold to turn BSM on when selecting TUNER as the source.

  • Page 40: Additional Information

    Appendix Additional Information Troubleshooting Common Symptom Cause Action (See) Power doesn’t turn on. Leads and connectors are incor- Confirm once more that all connections are The unit doesn’t operate. rectly connected. correct. The fuse is blown. Rectify the reason for the fuse blowing, then replace the fuse.

  • Page 41: Error Messages

    The Video CD playing features PBC. This operation is not possible with Video CDs search are not possible. featuring PBC. Error messages When you contact your dealer or your nearest Pioneer Service Center, be sure to have the error message recorded.
  • Page 42 Appendix Additional Information Built-in DVD player Message Cause Action REGION ERR (DIFFERENT RE- The disc does not have the same re- Replace the DVD video with one bearing the GION DISC) gion number as this unit correct region number. ERROR-02-XX Dirty disc Clean disc.
  • Page 43 Appendix Additional Information The USB device connected to is not Connect a USB portable audio player or USB supported by this unit. memory that is USB Mass Storage Class N/A USB (INCOMPATIBLE DE- compliant. VICE) USB device is not formatted with USB device should be formatted with FAT16 FAT16 or FAT32 or FAT32.

  • Page 44: Handling Guideline Of Discs And Player

    Appendix Additional Information ! Check all discs for cracks, scratches or Handling guideline of discs warping before playing. Discs that have and player cracks, scratches or are warped may not ! Use only discs featuring any of following play properly. Do not use such discs. ! Avoid touching the recorded (non-printed) logos.

  • Page 45: Avchd Recorded Discs

    Appendix Additional Information ! It may not be possible to play back DVD-R/ CD-R/CD-RW discs DVD-RW discs, because of disc character- ! When CD-R/CD-RW discs are used, play- istics, scratches or dirt on the disc, or dirt, back is possible only for discs which have condensation, etc.

  • Page 46: Compressed Audio Compatibility

    44.1, 48 kHz for emphasis) CAUTION ! Compatible ID3 tag version: 1.0, 1.1, 2.2, Pioneer accepts no responsibility for data lost on 2.3, 2.4 (ID3 tag Version 2.x is given priority the USB memory/USB portable audio player even than Version 1.x.) if that data is lost while using this unit.

  • Page 47: Example Of A Hierarchy

    Appendix Additional Information ! Do not leave the USB portable audio The sequence of audio files on player/USB memory in direct sunlight for the disc extended amounts of time. Extended expo- ! This unit assigns folder numbers. The user sure to direct sunlight can result in USB cannot assign folder numbers.

  • Page 48: Jpeg Picture Files

    Appendix Additional Information ® JPEG picture files code, refer to Displaying your DivX VOD re- gistration code on page 34. ! JPEG is short for Joint Photographic Ex- ! For more details about DivX, visit the follow- perts Group and refers to a still image com- ing site: pression technology standard.

  • Page 49: Language Code Chart For Dvd

    Appendix Additional Information Language code chart for DVD Language (code), input code Language (code), input code Language (code), input code Japanese (ja), 1001 Guarani (gn), 0714 Pashto, Pushto (ps), 1619 English (en), 0514 Gujarati (gu), 0721 Quechua (qu), 1721 French (fr), 0618 Hausa (ha), 0801 Rhaeto-Romance (rm), 1813 Spanish (es), 0519...

  • Page 50: Copyright And Trademark Notice

    Appendix Additional Information Copyright and trademark Supply of this product only conveys a license notice for private, non-commercial use and does not ! This product incorporates copyright protec- convey a license nor imply any right to use tion technology that is protected by method this product in any commercial (i.e.
  • Page 51 Appendix Additional Information Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide pa- tents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. ©...

  • Page 52: Terms

    Appendix Additional Information Terms ious manufacturers use this compressed file format which carries date, time and thumbnail information, as well as the picture data. AAC is short for Advanced Audio Coding and ID3 tag refers to an audio compression technology standard used with MPEG 2 and MPEG 4.
  • Page 53 Appendix Additional Information Linear PCM (LPCM)/Pulse code Multi-session modulation Multi-session is a recording method that al- This stands for linear pulse code modulation, lows additional data to be recorded later. which is the signal recording system used for When recording data on a CD-ROM, CD-R or music CDs and DVDs.
  • Page 54 Appendix Additional Information Region number DVD players and DVD discs feature region numbers indicating the area in which they were purchased. Playback of a DVD is not pos- sible unless it features the same region num- ber as the DVD player. Title DVD video discs have high data capacity, en- abling recording of multiple movies on a sin-...

  • Page 55: Specifications

    Appendix Additional Information Specifications Signal-to-noise ratio ....96 dB (1 kHz) (IEC-A net- work) (RCA level) General Number of channels ....2 (stereo) MP3 decoding format ... MPEG-1 & 2 Audio Layer 3 Rated power source ....14.4 V DC WMA decoding format ..
  • Page 56 TEL: (03) 9586-6300 PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901 TEL: 905-479-4411 PIONEER ELECTRONICS DE MEXICO, S.A. de C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270 先鋒股份有限公司...
