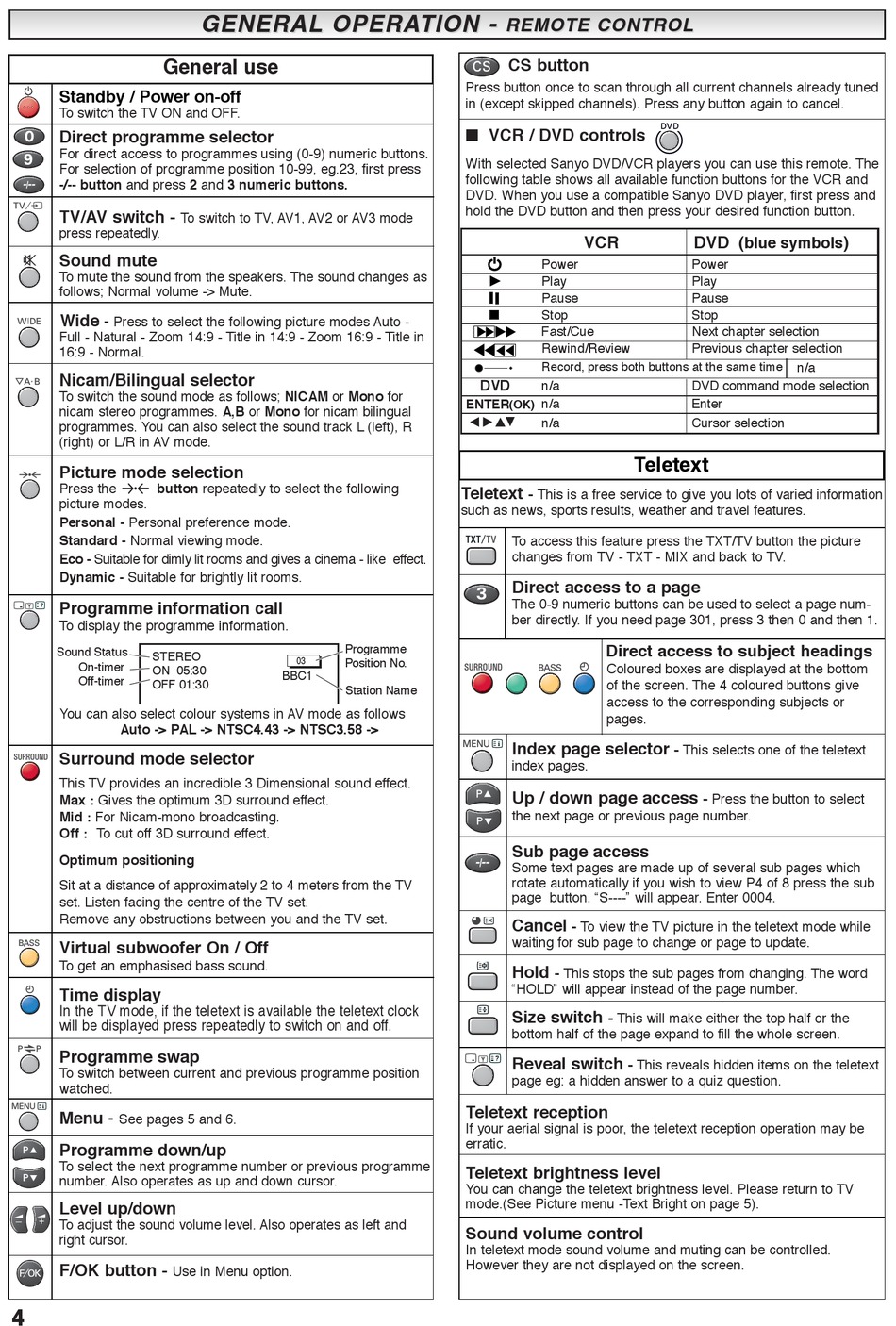

Opera Tion - Remote Control; General Use - Sanyo CE28FWN6-B Instruction Manual

General use

Standby / Power on-off
To switch the TV ON and OFF.
Direct programme selector
For direct access to programmes using (0-9) numeric buttons.
For selection of programme position 10-99, eg.23, first press
-/-- button and press 2 and 3 numeric buttons.
TV/AV switch -
To switch to TV, AV1, AV2 or AV3 mode
press repeatedly.
Sound mute
To mute the sound from the speakers. The sound changes as
follows; Normal volume -> Mute.
Wide
-
Press to select the following picture modes Auto -
Full - Natural - Zoom 14:9 - Title in 14:9 - Zoom 16:9 - Title in
16:9 - Normal.
Nicam/Bilingual selector
To switch the sound mode as follows; NICAM or Mono for
nicam stereo programmes. A,B or Mono for nicam bilingual
programmes. You can also select the sound track L (left), R
(right) or L/R in AV mode.
Picture mode selection
Press the 9 button repeatedly to select the following
picture modes.
Personal - Personal preference mode.
Standard - Normal viewing mode.
Eco - Suitable for dimly lit rooms and gives a cinema - like effect.
Dynamic - Suitable for brightly lit rooms.
Programme information call
To display the programme information.
Sound Status
STEREO
On-timer
ON 05:30
Off-timer
OFF 01:30
You can also select colour systems in AV mode as follows
Auto -> PAL -> NTSC4.43 -> NTSC3.58 ->
Surround mode selector
This TV provides an incredible 3 Dimensional sound effect.
Max : Gives the optimum 3D surround effect.
Mid : For Nicam-mono broadcasting.
Off : To cut off 3D surround effect.
Optimum positioning
Sit at a distance of approximately 2 to 4 meters from the TV
set. Listen facing the centre of the TV set.
Remove any obstructions between you and the TV set.
Virtual subwoofer On / Off
To get an emphasised bass sound.
Time display
In the TV mode, if the teletext is available the teletext clock
will be displayed press repeatedly to switch on and off.
Programme swap
To switch between current and previous programme position
watched.
Menu -
See pages 5 and 6.
Programme down/up
To select the next programme number or previous programme
number. Also operates as up and down cursor.
Level up/down
To adjust the sound volume level. Also operates as left and
right cursor.
F/OK button -
Use in Menu option.
4
GENERAL OPERA
GENERAL OPERA
Programme
03
Position No.
BBC1
Station Name
TION -
TION -
REMOTE CONTROL
REMOTE CONTROL
CS button
Press button once to scan through all current channels already tuned
in (except skipped channels). Press any button again to cancel.
VCR / DVD controls
With selected Sanyo DVD/VCR players you can use this remote. The
following table shows all available function buttons for the VCR and
DVD. When you use a compatible Sanyo DVD player, first press and
hold the DVD button and then press your desired function button.
VCR
Power
Play
Pause
Stop
Fast/Cue
Rewind/Review
Record, press both buttons at the same time
DVD n/a
n/a
ENTER
(OK)
n/a
Teletext
-
This is a free service to give you lots of varied information
such as news, sports results, weather and travel features.
To access this feature press the TXT/TV button the picture
changes from TV - TXT - MIX and back to TV.
Direct access to a page
The 0-9 numeric buttons can be used to select a page num-
ber directly. If you need page 301, press 3 then 0 and then 1.
Index page selector
index pages.
Up / down page access
the next page or previous page number.
Sub page access
Some text pages are made up of several sub pages which
rotate automatically if you wish to view P4 of 8 press the sub
page button. "S----" will appear. Enter 0004.
Cancel
-
To view the TV picture in the teletext mode while
waiting for sub page to change or page to update.
Hold
-
This stops the sub pages from changing. The word
"HOLD" will appear instead of the page number.
Size switch
bottom half of the page expand to fill the whole screen.
Reveal switch
page eg: a hidden answer to a quiz question.
Teletext reception
If your aerial signal is poor, the teletext reception operation may be
erratic.
Teletext brightness level
You can change the teletext brightness level. Please return to TV
mode.(See Picture menu -Text Bright on page 5).
Sound volume control
In teletext mode sound volume and muting can be controlled.
However they are not displayed on the screen.
DVD (
blue symbols
Power
Play
Pause
Stop
Next chapter selection
Previous chapter selection
DVD command mode selection
Enter
Cursor selection
Teletext
Direct access to subject headings
Coloured boxes are displayed at the bottom
of the screen. The 4 coloured buttons give
access to the corresponding subjects or
pages.
-
This selects one of the teletext
-
Press the button to select
-
This will make either the top half or the
-
This reveals hidden items on the teletext
)
n/a
