Summary of Contents for iOptron ST-4

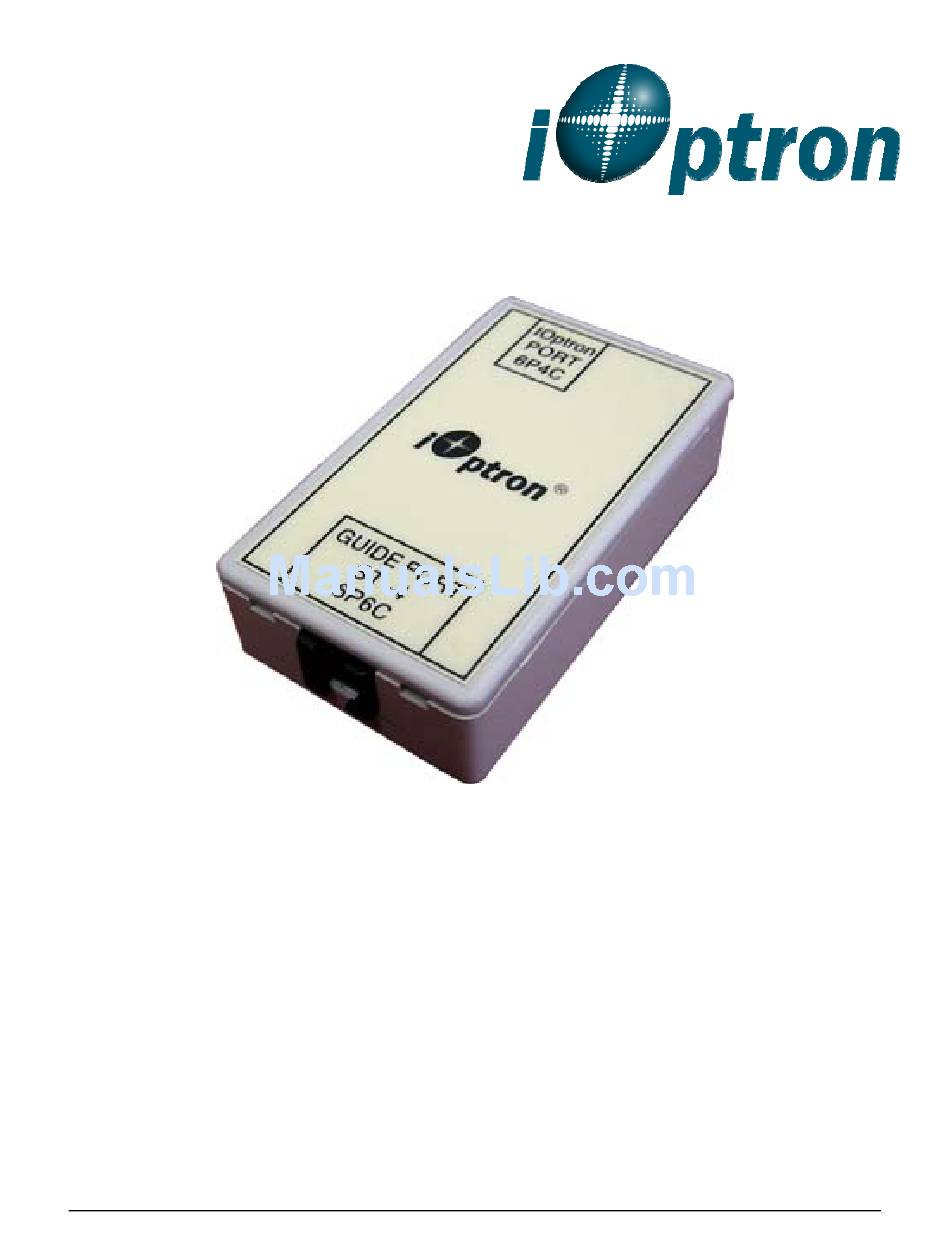

- Page 1 ST-4 Autoguiding Adapter # 8427 Instruction Manual iOptron Corporation, 6E Gill Street, Woburn, MA 01801 www.iOptron.com...
- Page 2 ST-4 Adapter has two ports, as indicated in Figure 1: iOptron Port and Guide Port. Connect one end of supplied 6P4C coiled cable to the iOptron Port of the adapter. Plug the other end into an available HBX port (Port A or Port B socket on the mount.) Connect Guide Port to ST-4 compatible autoguiding equipment using a 6P6C RJ-12 cable (not included).
- Page 3 Figure 3. Inside of an ST-4 adapter Figure 4 shows different wiring direction. Figure 4. ST-4 wiring May 2011 V2.0 iOptron reserves the rights to revise this instruction without notice. Actual color/contents/design may differ from those described in this instruction.
