Summary of Contents for YATOUR YT-M05B

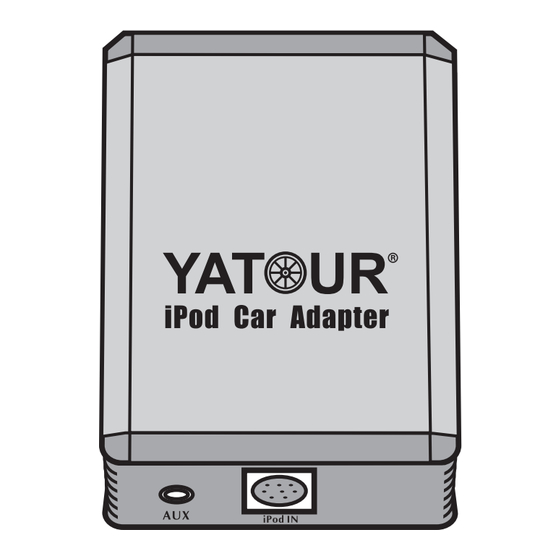

- Page 1 Car Adapter YT-M05B User Manual English...
-
Page 2: I Product Introduction
5. AUX Input: Connects any external audio device. 6. Works with iPhone: Call-in reminding via radio speaker. 7. Last position memory: 8. Supports iPod playlist: Support Apple iTunes playlist as Virtual CDs. II Accessories iPod Car Adapter YT-M05B User Manual 3.5mm Module Unit Wire Harness iPod Cable... - Page 3 WIRE HARNESS BACK OF THE HEAD UNIT Power And CD Changer Speaker Port SOCKET ORIGINAL SOCKET (FOR USE IN SOME CARS ONLY) iPod iPod Touch iPhone 原车CD/VCD/DVD机械碟盒 CD CHANGER CD CHANGER MP3、PSP 、GPS、 tc. NOTE: MP3/CDC Switch Cable is optional, Available for some vehicles only. IV Installation Guide Important note : Before installation, please carefully read the User Manual.
- Page 4 2. Unmount the radio from the dash in order to get access to the back side of the radio, and find CD Changer port at the back of the radio. 3. Attach the wire harness connector to the back of the stereo to the CD changer port.
- Page 5 (The 3-pin and the 6-pin connector, both are located in the trunk, must be disconnected), otherwise, Yatour will not be recognised. Besides, if the BMW radios are with DSP, extra DSP kit and specific iPod Adapter would be used.
- Page 6 This iPod Car Adapter supports memory playback, once you press select FM/AM buttons, disconnect the iPod, or power off the radio or ACC, it will memorize the disc number and track number to host, when you return to the playback status of iPod Car Adapter, it will continue playing from the memorized point.
- Page 7 VI CONNECTING & PLAYING of iPod 1. Connecting iPod to the interface After iPod connect to the adapter, iPod will take a few moments to get into the external control mode. During the initialization, iPod screen may shift or change continuously for approximately 25 seconds. If connect iPhone to the adapter, iPhone will register a message stating “This accessory is not made to work with iPhone.”...
- Page 8 After playing the last song in the current Playlist, playback will start again from the first track of this Playlist. 6. Playback function controls You can control playback with several functions. These functions are generally cancelled when you press FM/AM buttons, disconnect the iPod, or power off the radio or ACC.
-
Page 9: Common Troubleshooting
7.Switch Between Yatour and Existing CD Changer For VAG vehicles, Parallel Harness (without MP3/CDC switch) is... -
Page 10: Specifications
Future iPod and iTunes firmware updates may affect the features and functions described in this User manual. For more information about our products, technology and the usage technique, please visit our website at www.yatour.net. The trade marks and brands therein are protected by the law. Guangzhou Yatour Electronics Technology Co.,Ltd.
