Casio 3230 Operation Manual

MA1010-EA
Contents
General Guide .......................................................................................................... E-4
Timekeeping ............................................................................................................. E-6
Alarm ...................................................................................................................... E-10
Countdown Timer .................................................................................................. E-14
Stopwatch .............................................................................................................. E-17
Specifi cations ........................................................................................................ E-19
E-2
General Guide
All of the illustrations in this manual show Module 3230.
Timekeeping
E-4
Timekeeping
Day of week
Month
Day
PM indicator
Hour : Minutes Seconds
E-6
About the backlight
When you switch the backlight function on, the backlight of the watch fl ashes
whenever alarm (page E-10), countdown timer or hourly time signal is sounding.
Pressing D in any mode illuminates the display, regardless of the backlight's on/
off setting.
The backlight of this watch employs an electro-luminescent (EL) light, which loses its
illuminating power after very long term use.
Frequent use of the backlight shortens the battery life.
The watch will emit an audible sound whenever the display is illuminated. This is
caused by a transistor that vibrates when the EL panel lights up. It does not indicate
malfunction of the watch.
The illumination provided by the backlight may be hard to see when viewed under
direct sunlight.
The backlight automatically stops illuminating whenever an alarm sounds.
E-8

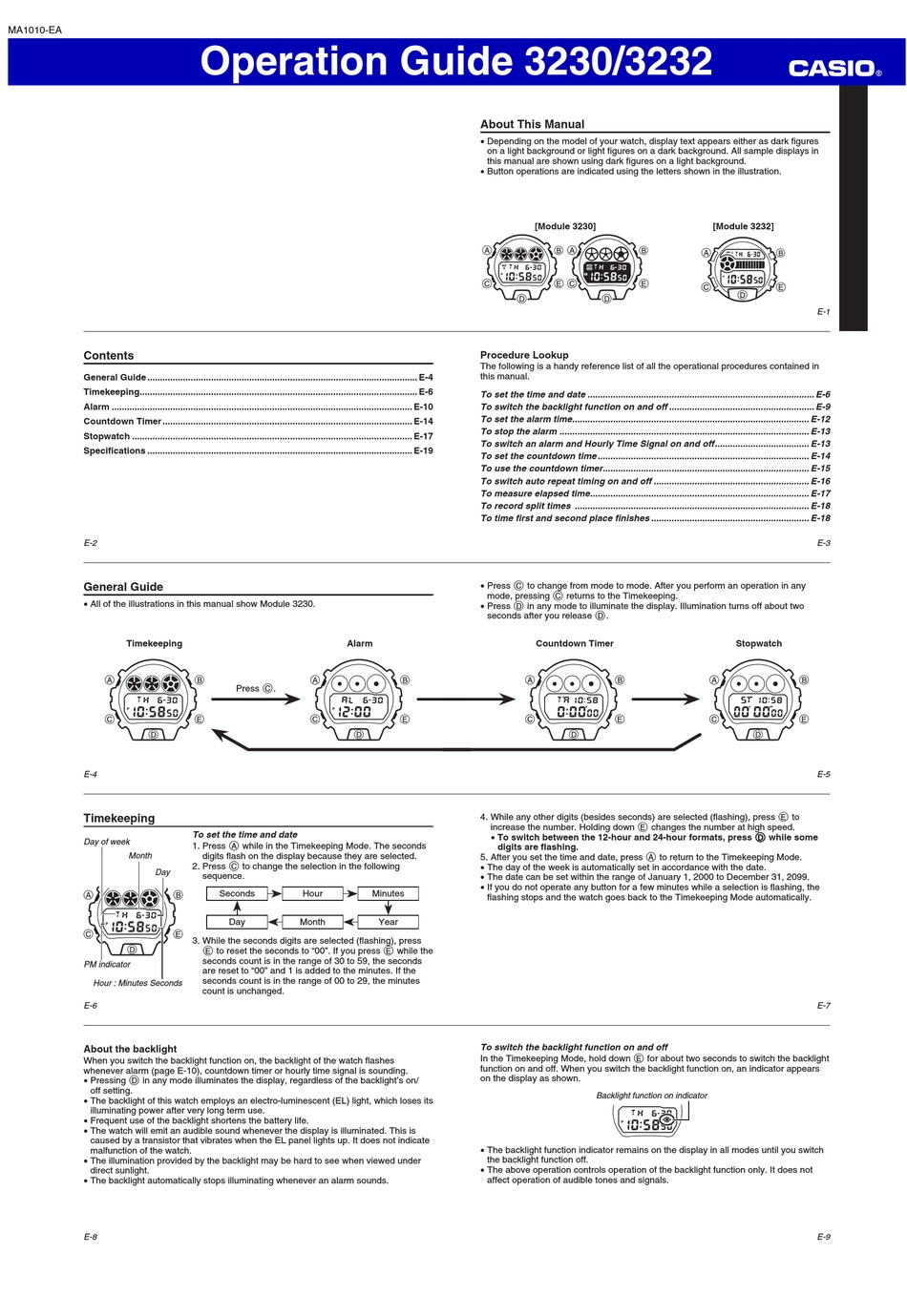

Operation Guide 3230/3232
Alarm
Press C.
To set the time and date
A while in the Timekeeping Mode. The seconds
1. Press
digits fl ash on the display because they are selected.
C to change the selection in the following
2. Press
sequence.
Seconds Hour
Day Month
3. While the seconds digits are selected (fl ashing), press
E to reset the seconds to "00". If you press E while the
seconds count is in the range of 30 to 59, the seconds
are reset to "00" and 1 is added to the minutes. If the
seconds count is in the range of 00 to 29, the minutes
count is unchanged.
About This Manual
Depending on the model of your watch, display text appears either as dark fi gures
on a light background or light fi gures on a dark background. All sample displays in
this manual are shown using dark fi gures on a light background.
Button operations are indicated using the letters shown in the illustration.
[Module 3230]
Procedure Lookup
The following is a handy reference list of all the operational procedures contained in
this manual.
To set the time and date ......................................................................................... E-6
To switch the backlight function on and off ......................................................... E-9
To set the alarm time ............................................................................................. E-12
To stop the alarm .................................................................................................. E-13
To switch an alarm and Hourly Time Signal on and off ..................................... E-13
To set the countdown time ................................................................................... E-14
To use the countdown timer ................................................................................. E-15
To switch auto repeat timing on and off ............................................................. E-16
To measure elapsed time ...................................................................................... E-17
To record split times ............................................................................................ E-18
To time fi rst and second place fi nishes .............................................................. E-18
Press C to change from mode to mode. After you perform an operation in any
mode, pressing C returns to the Timekeeping.
Press D in any mode to illuminate the display. Illumination turns off about two
seconds after you release D.
Countdown Timer
4. While any other digits (besides seconds) are selected (fl ashing), press
increase the number. Holding down E changes the number at high speed.
To switch between the 12-hour and 24-hour formats, press D while some
digits are fl ashing.
5. After you set the time and date, press
The day of the week is automatically set in accordance with the date.
The date can be set within the range of January 1, 2000 to December 31, 2099.
If you do not operate any button for a few minutes while a selection is fl ashing, the
Minutes
fl ashing stops and the watch goes back to the Timekeeping Mode automatically.
Year
To switch the backlight function on and off
In the Timekeeping Mode, hold down E for about two seconds to switch the backlight
function on and off. When you switch the backlight function on, an indicator appears
on the display as shown.
The backlight function indicator remains on the display in all modes until you switch
the backlight function off.
The above operation controls operation of the backlight function only. It does not
affect operation of audible tones and signals.
[Module 3232]
Stopwatch
A to return to the Timekeeping Mode.
Backlight function on indicator
E-1
E-3
E-5
E to
E-7
E-9
