Summary of Contents for Edimax WD-1000TR

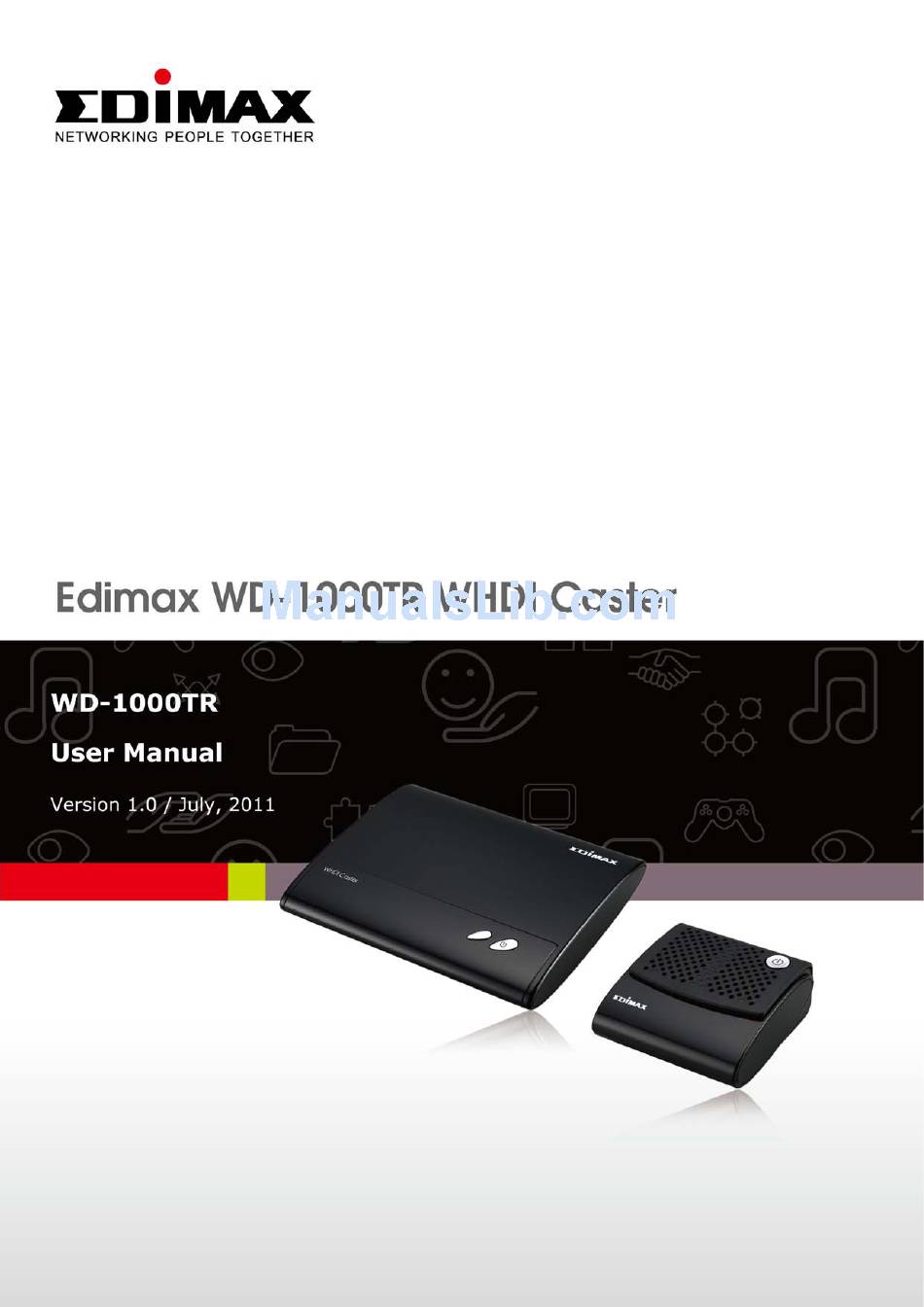

- Page 1 ...
-
Page 2: Table Of Contents
Table of Contents TABLE OF CONTENTS ......................0 1. IMPORTANT INFORMATION ..................... 2 ......................2 AFETY RECAUTIONS ................2 ANGER E CAREFUL WITH ELECTRICITY 2. INTRODUCTION ........................ 6 ......................6 ACKING ONTENT ........................7 VERVIEW 3. INSTALLATION ........................9 WD‐1000TX ............... 9 TEP ... -
Page 3: Important Information
1. Important Information make sure to use the appropriate AC adapters as power supply to the transmitter and the receiver. Please take the time to read this user manual Power cord: Be sure the power cord is before using the WD‐1000TX and WD‐1000RX. routed so that it will not be stepped on or It contains important information about pinched by heavy items. operating your PC to TV wireless kit. Power overloading: Avoid overloading electrical outlets or extension cords which Our company’s limited warranty applies when otherwise could result in electric shock or the product is handled properly for intended use, fire. in accordance with its operating instruction. Lightning: Disconnect the product from However, the warranty may be void in the the power source if it is left unattended following cases: for a long period of time, and to protect Repair, product modification or alteration the product from lightning. have been performed by unauthorized Always disconnect the power cord from service personnel the power outlet when you are not using Damages caused by accidents, including your Full HD Video wireless kit. This but not limited to, lightning, water, fire, or reduces the risk of electric shocks or fire. moisture ... - Page 4 ...
- Page 5 CAUTION: Using the RF module in The following regulatory and Safety the US notices must be published in Any changes or modifications not documentation supplied to the end user expressly approved by the grantee of this of the product or system incorporating an device could void the user's authority to adapter in compliance with local operate the equipment. regulations, Host system must be labeled This equipment must be installed and with “Contains FCC ID: XXX‐XXXXX”, FCC operated in accordance with provided ID displayed on label. instructions and the antenna(s) used for this transmitter must be installed to System Warning provide a separation distance of at least FEDERAL COMMUNICATIONS COMMISSION 20 cm from all persons and must not be INTERFERENCE STATEMENT co‐located or operating in conjunction with any other antenna or transmitter. This equipment has been tested and found to End‐users and installers must be provide comply with the limits for a Class B digital device, with antenna installation instructions and pursuant to Part 15 of the FCC Rules. These transmitter operating conditions for limits are designed to provide reasonable satisfying RF exposure compliance. Outdoor operations in the 5150 ~ protection against harmful interference in a 5250MHz, 5600~5650MHz band are residential installation. This equipment prohibited. generates, uses and can radiate radio frequency ...
- Page 6 CAUTION: Using this System in CAUTION: Using the System in Canada the US Industry Canada regulatory information Operation is subject to the following two Any changes or modifications not conditions: expressly approved by the grantee of this This device may not cause device could void the user's authority to interference, operate the equipment. This device must accept any This equipment must be installed and interference, including interference operated in accordance with provided that may cause undesired instructions and the antenna(s) used for operation of the device. this transmitter must be installed to The user is cautioned that this device provide a separation distance of at least should be used only as specified within 20 cm from all persons and must not be this manual to meet RF exposure co‐located or operating in conjunction requirements. Use of this device in a with any other antenna or transmitter. manner inconsistent with this manual End‐users and installers must be provide could lead to excessive RF exposure with antenna installation instructions and conditions. transmitter operating conditions for ...
-
Page 7: Introduction
2. Introduction 2.1 Packing Content WD‐1000TX (TX) and WD‐1000RX (RX) wireless Please check whether the following items are HD audio/video transmission solution allows present in the package. If any items missed or users to see on the HDTV a great variety of damaged, please call your dealer. uncompressed 1080p content or web entertainment that’s available on thief computer, free of the constraint of cables. Just connect the HDTV to the WD‐1000RX (receiver) with an HDMI cable, and connect the HDMI‐ready computer or any HDMI source to the WD‐1000TX (transmitter). This solution delivers uncompressed 1080p full HD video and audio content to your existing HDTV set wirelessly. It operates the transmission in 4.9 GHz~ 5.9 GHz frequencies and it can ... -
Page 8: Overview
2.2 Overview WD‐1000TX (TX): PC to TV Transmitter Main Unit Back Panel HDMI IN Connect Transmitter to PC / Notebook or any ... - Page 9 WD‐1000RX (RX): PC to TV Receiver Main Unit Back Panel HDMI OUT Connect the HDTV set via an HDMI cable. DC IN Connect the receiver’s power adapter. Front Panel Buttons and LEDs Power Button with LED indicator Press to turn the receiver on and off. The indicator in the power button lights up in blue when the power is on, and turns red in standby mode. INFO./CHANNEL Selection Button Press this button once for OSD displayed the information on the HDTV screen. Keep pressing this button over 3 seconds for manual switching Channel function if user experiences the video noise. ...
-
Page 10: Installation
3. Installation Step 1: Setup the WD‐1000TX transmitter Connect an HDMI‐ready computer to the WD‐1000TX: (1) Connect the WD‐1000TX’s (transmitter) “HDMI IN” to the HDMI‐ready computer’s “HDMI OUT” or Source player’s “HDMI OUT” with an HDMI cable (included). (2) Power Connection : A. Connect dual USB ports of HDMI‐ready computer with mini USB port (POWER labeled on back panel) of WD‐1000TR transmitter through the USB Y‐cable for power supply. One mini USB connector is located on one end of USB Y‐cable and another two USB type A connectors are located on another end of USB Y‐cable. B. Connect the power adapter with a mini USB connector to the mini USB port of the WD‐1000TR for power supply, and then to a wall socket. The LED indicator in the POWER button should lights up in blue when the WD‐1000TX is connected to the computer through USB. ... -
Page 11: Step 2: Setup The Wd-1000Rx Receiver
Step 2: Setup the WD‐1000RX receiver HDTV set Connection with WD‐1000RX: (2) Connect the supplied power adapter to (1) Connect the HDMI cable to the HDMI OUT jack of the the DC IN jack of the WD‐1000RX and a WD‐1000RX and to your HDTV wall socket. The LED indicator on the set (or an HD projector). POWER button lights up in solid purple when the WD‐1000RX is connected to the power mains. ... -
Page 12: Step 3: Boot Up The Wd-1000Tx And Wd-1000Rx
Step 3: Boot up the WD‐1000TX and WD‐1000RX (1) After the power cord is plugged into the electrical outlet, the WD‐1000TR will be turned on automatically. (2) If it is in Standby mode (Both POWER LED of transmitter and receiver are lit in red), press the POWER button on both transmitter and receiver to turn on the WD‐1000TX and WD‐1000RX. It will take about 1 minute for the system to boot up. ... - Page 13 (4) During the warm‐up period, the POWER LED will blink in blue until the signal link between the WD‐1000TX and the WD‐1000RX is established. Ensure your TV set or projector is in “HDMI input” mode, and is already powered on. (5) If you have electronic devices such as a cordless phone, wireless access point/ router sharing the 5GHz channel frequency, when you use it near the WD‐1000TR, you may experience disturbed picture or diminished sound quality. Press the INFO./CHANNEL button on the top of Receiver box to change the WD‐1000TR to different channels. ...
- Page 14 3. Exit the wireless 1. Enter the wireless RF 2. Changes to the next RF channel channel adjustment mode available RF wireless channel adjustment mode Press the INFO./CHANNEL Press the INFO./CHANNEL button on the top of Receiver button on the top of Receiver No button is pressed Method box over 3 seconds for current box again within 5 seconds to for 5 seconds. channel status display. switch channel randomly. ▃▆█ HDMI [CH 8] 1280x1024 OSD Display Exit. Status Press again to change channel B. Channel Number Indicating the Wireless Frequency : Frequency US ( DFS ) Europe ( DFS ) Taiwan ( DFS ) [MHz] Support Channel Support ...
- Page 15 (6) If all operation is normal, the POWER LED and INFO./CHANNEL LED will glow in solid blue. Please refer to the next form containing detailed LED description : Note: Make sure the display for your HDMI‐ready computer connected to the WD‐1000TX has already been turn on the external display. Please see the Chapter4.1 for the detail operation. Warming‐up or source switching time should take approximately 15~20 seconds if the operation is in normal condition. ...
- Page 16 Note: A. If the RF connection over 80sec and still not established, it might link is lost or the transmitter is most likely out of range. You may have to verify the range and adjust or shorten the distance between your HDTV set with the transmitter and the receiver. The maximum video transmission range for 1080p content is up to 30 feet in line of sight (LOS). < The minimum range is 6.5 feet. > Please make sure the computer have been power on and switched the signal output to HDMI out; also try to re‐plug the HDMI cable to make sure the HDMI connector had settled well. If there is no video displayed and OSD displayed “Not Supported Format”, this is an indication that the video frame rate from the computer is not supported, please refer chapter 5 to switch a supported video timing. ...
- Page 17 (8) TRANSMITTER/RECEIVER Status on OSD vs. buttons: Press the POWER button on the top of Transmitter (or Receiver) to enter “Standby mode” from “active mode”. OSD Displayed : ▃▆█ HDMI CH10 1280x1024 Standby Mode Press the INFO./ CHANNEL button on the top of Receiver, the Signal Quality, Source, Channel and resolution will be displayed for user reference. OSD Displayed : ▃▆█ HDMI CH10 1280x1024 Press again to exit the OSD Press the INFO./ CHANNEL button on the top of Receiver to manually switch wireless channels if the user experiences video noise. Keep press “INFO./Channel” button over 3 seconds for current Channel status displayed on the OSD : ▃▆█ ...
-
Page 18: Step 4: Mounting The Wd-1000Rx To The Wall
Step 4: Mounting the WD‐1000RX to the Wall (1) Refer the drawing of the bottom page (5) Place WD‐1000RX key holes over the that have relative position of the key protruding screws and slide down into holes and attach this paper on wall. position. (2) Drill pilot holes. (3) Insert the supplied two Anchors into the wall. (4) Insert two screws into the anchors. Leave 1/8” length for mounting the Transmitter or receiver. ... -
Page 19: Troubleshooting
4. Troubleshooting Problem Solution • Check if the power plugs of WD‐1000TX/WD‐1000RX are properly The WD‐1000TR front inserted into a functioning power outlet. panel power indicator • Make sure both POWER LED of WD‐1000TX/ZWD1222R are lit in the (red LED) doesn't light up. blue. • The wireless link might require 80 seconds to connect between transmitter and receiver, and show video on the TV screen. Please be patient and wait for a while. • Verify that the proper cables have been selected and installed between the WD‐1000TX (transmitter) input and your High‐end PC output. ... -
Page 20: Windows Os Display Setting Of Laptop For Enables External Display
WD‐1000TR transmitter are powered on. * Ensure the display setting for your PC (or laptop) had been switched to clone mode, Projector out mode or dual display mode for enable external display. (Refer Chapter 4.1 for the detail operation.) • Check if your video resolution with HDMI input from your PC device is either 1080p, 1080i, 720p, 576p, or 480p. Please refer to the “Supported Resolution” chapter where the video frame rate from Poor picture quality or your PC device WD‐1000TR can support is defined. intermittent video ... - Page 21 On Windows Vista OS: 1. Click to open Windows Mobility Center from Start to open New display 2. On the External Display title, click Connect display Detected 3. Choose Mirrored or Extended mode to enable external display. On Windows XP OS: ...
-
Page 22: Mac Os Display Setting Of Laptop For Enables External Display
4.2 MAC OS Display setting of Laptop for enables external display MAC OS will detect external display equipment automatically and switch to a better video resolution when user plugs in the display cable to Apple Mac series. Once MAC OS do not detect external display automatically, please check below : 1. Click to open Displays form / System Performance 2. Click Detect Displays for re‐detect the external display 4.3 Windows OS Audio setting of Laptop for switch to HDMI output On Windows7 OS : 1. Click to open Audio setting from Control panel 2. Select HDMI Output and Press OK On Vista OS : ... - Page 23 On the Volume title, click the Change Audio setting icon to open Sound page Select HDMI output and press OK On Windows XP OS : 1. Click to open Audio setting from Control panel 2. Select HDMI Output and Press OK Note: For more information, please check “Windows Help and Support”. ...
-
Page 24: Supported Resolution
5. Supported Resolution If the SOURCE LED continues to blink in blue (slower than “no signal” mode); OSD display: “No Supported Format” and there is no video displayed or the video quality suffers, it indicates that the video frame rate from your A/V source device is not supported. Ensure that the consumer timing of your HD device is compliant with the standard listed below: Video Format Timings Resolution Supported Primary CEA Video Timing 640x480p @ 59.94 / 60Hz YES 720x480p @ 59.94Hz 480p YES 720x480p @ 60Hz YES 720x576p @ 50Hz 576p YES 1280x720p @ 50Hz YES 720p 1280x720p @ 59.94 / 60Hz YES 1920x1080i @ 50Hz YES 1080i 1920x1080i @ 59.94 / 60Hz YES 1920x1080p @ 50Hz YES 1080p / 60 1920x1080p @ 59.94 / 60Hz YES Secondary CEA Video Timing 1920x1080p @ 23.98 / 24Hz YES 1920x1080p @ 25Hz 1080p / 24 YES ... -
Page 25: Audio Bit Rate Support
6. Audio Bit Rate Support Digital Audio from HDMI inputs: Up to 6Mbit/s bit‐rate support. Support AC3 and DTS. 2‐channel PCM audio : 16~24 bits audio sample with 32~48KHz sampling rate 2channel PCM 32KHz 44.1KHz 48KHz 96KHz 16 bits YES YES YES YES 24 bits YES YES YES YES ... -
Page 26: Product Specification
7. Product Specification General Specifications Supported Video HDMI Input 1080p, 1080i, 720p, 576p, 480p Resolutions Supported Audio Digital Audio up to 6 Mbps AC3 and DTS Formats The maximum video transmission range is 10 meters (30 feet) Transmission Distance (The minimum range is 2 meters) line of sight (LOS) scenarios System Latency No latency (<1ms) Antenna High Performance Internal Antennas Operating Frequencies 4.9~ 5.9GHz (Include non‐DFS and DFS Frequency Bands) Power Supply 100~ 240V AC in, 5V 2A DC out Power Adaptor Operating Temperature 0~40°C Interfaces WD‐1000TX WD‐1000RX A/V HDMI Input One (Type A) ‐ Interfaces HDMI Output ‐ One (Type A) ... - Page 27 ...
- Page 28 ...
