CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Select Thermostat Location . . . . . . . . . . . . . . . . . . . . . . 1
Install Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Set Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Heat Pump Configuration . . . . . . . . . . . . . . . . . . . . . . . . 3
Configure Advanced Setup. . . . . . . . . . . . . . . . . . . . . . . 3
Install Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Program Thermostat Schedules. . . . . . . . . . . . . . . . . . 5
Calibrate Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Check Thermostat Operation. . . . . . . . . . . . . . . . . . . . . 6
Final Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Auto-Changeover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Two-Stage Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Clock Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Fan Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Emergency Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electric Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Holiday Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Temperature Sensor . . . . . . . . . . . . . . . . . . . . . 7
Keypad Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Dry Contact Switch/External Control . . . . . . . . . . . . . 7
10-Watt Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IMPORTANT Read entire instructions before starting the

installation.

SAFETY CONSIDERATIONS

Read and follow manufacturer instructions carefully. Fol-
low all local electrical codes during installation. All wiring
must conform to local and national electrical codes. Improper
wiring or installation may damage thermostat.
Recognize safety information. This is the safety alert sym-
bol
. When the safety alert symbol is present on equipment
or in the instruction manual, be alert to the potential for person-
al injury.
Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety alert symbol.
DANGER identifies the most serious hazards which will result
in severe personal injury or death. WARNING signifies a haz-
ard which could result in personal injury or death. CAUTION
is used to identify unsafe practices which would result in minor
personal injury or property damage.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
PC 111
Book 1
4
Tab
1a 13a
Commercial Programmable Thermostat
Installation, Start-Up, and
Operating Instructions
Part Number 33CS250-01
Page
Catalog No. 533-317
Printed in U.S.A.

GENERAL

The 7-day, commercial, programmable thermostats are
wall-mounted, low-voltage thermostats which maintain room
temperature by controlling the operation of an HVAC (Heating,
Ventilation, and Air Conditioning) system. Separate heating
and cooling set points and auto-changeover capability allow
occupied and unoccupied programming for energy savings.
All thermostats allow up to 4 time/temperature settings to
be programmed per 24-hour period. Each thermostat stores
programs for 7 independent days. Batteries are not required.
During power interruption the internal NEVERLOST™ mem-
ory stores programmed schedules for an unlimited time while
the clock continues to run for at least 48 hours.
The thermostat can be configured to accept several different
equipment configurations, including heat pump operation.
NOTE: The thermostat is not factory-configured for use in heat
pump applications. The advanced setup must be performed to
configure the thermostat for use with heat pump units.
INSTALLATION

Select Thermostat Location -

be mounted:
• approximately 5 ft from the floor
• close to or in a frequently used room, preferably on an
inside partitioning wall
• on a section of wall without pipes or ductwork
• where temperature operating limits are within 41 to 104 F
(5 to 40 C)
• where humidity operating range is within 0 to 95% rela-
tive humidity, non-condensing
The thermostat should NOT be mounted:
• close to a window, on an outside wall, or next to a door
leading to the outside
• where exposed to direct light and heat from a lamp, the
sun, a fireplace, or any other temperature-radiating
object which may cause a false reading
• close to or in direct airflow from supply registers or
return air grilles
• in areas with poor air circulation (such as behind a door
or in an alcove)

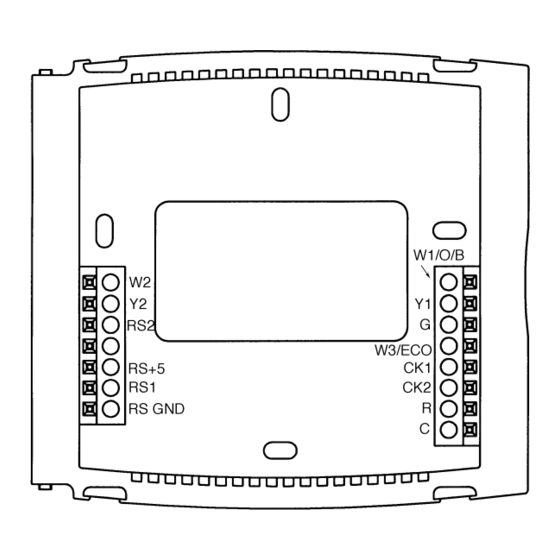

Install Thermostat

Before installing thermostat, turn off all power to the unit.
There may be more than one power disconnect. Electrical
shock can cause injury or death.
Form 33CS-12SI
Pg 1
1204
Debonair®
33CS
The thermostat should
12-97
Replaces: New
