GE JGBS23SEM Dimensions And Installation Information

JGBS23SEM
GE 30" Free-Standing Gas Range
®

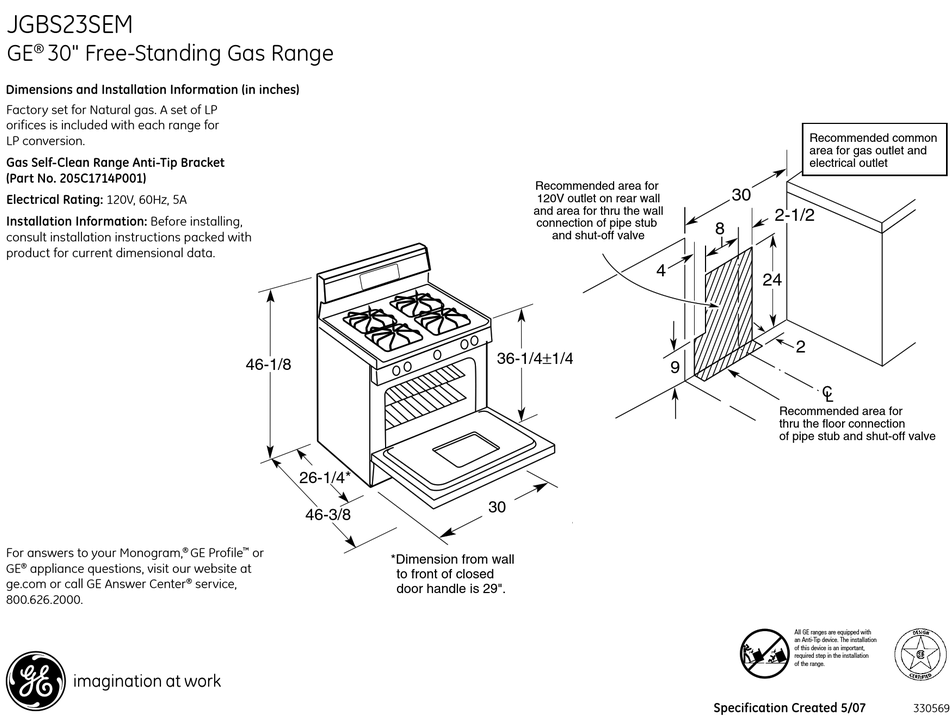

Dimensions and Installation Information (in inches)
Factory set for Natural gas. A set of LP
orifices is included with each range for
LP conversion.
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
46-1/8
26-1/4*
Installation Information (Dimensions in inches)
46-3/8
*Dimension from wall
to front of closed
door handle is 29".
46-1/8
26-1/4*
46-3/8
GE Profile ™ or
service,
®
36-1/4±1/4
Recommended area for
30
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36-1/4±1/4
30
*Dimension from wall
to front of closed
door handle is 29".
30" FS Gas Ranges-CL
30
8
4
9
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
4
9
Specification Created 5/07
Recommended common
area for gas outlet and
electrical outlet
2-1/2
24
2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
24
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
2
required step in the installation
of the range.
330569
