GE Profile PB970SP Dimensions And Installation Information

PB970SP
GE Profile 30" Free-Standing Electric Range
™
Dimensions and Installation Information (in inches)
KW Rating
240V
13.9
208V 10.4
Breaker Size
40 Amps †
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires that new
construction (not existing) utilize a 4-conductor connection to an electric range.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals

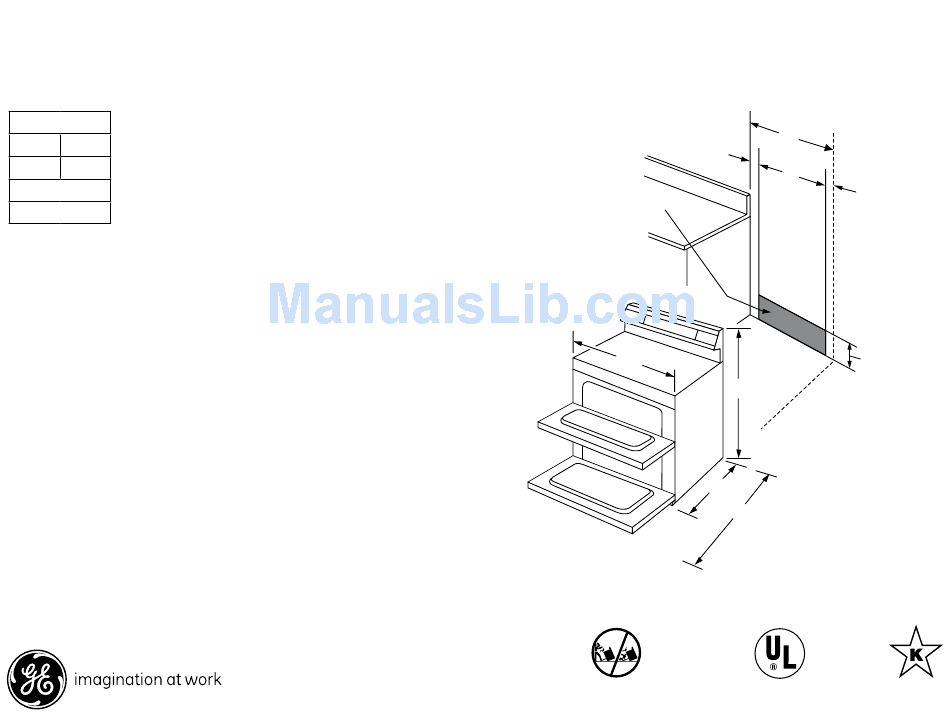

are not accessible after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow range to be installed
directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent
walls below countertops. To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow for possible extended, high-
heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
or
™
service,
fse_dual_cavity_install.eps
Acceptable electrical
outlet area
Orient the electrical
receptacle so the length
is parallel to the floor.
29-7/8
25-3/4*
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
30
3
24
3
7-1/2
47
*Dimension from wall to front of
closed oven door handle is 28-7/8.
