OWNER'S MANUAL
SWP-2 Spot Welder Pedestal (040 872)
WARNING
ELECTRIC SHOCK can kill.
Do not touch live electrical parts.
Turn Off resistance spot welder, and disconnect
input power before inspecting or installing.
3/8, 7/16, 1/2 in
See spot welder instruction manual for
procedure on adjusting tong pressure and
alignment before installing spot welder
onto pedestal.

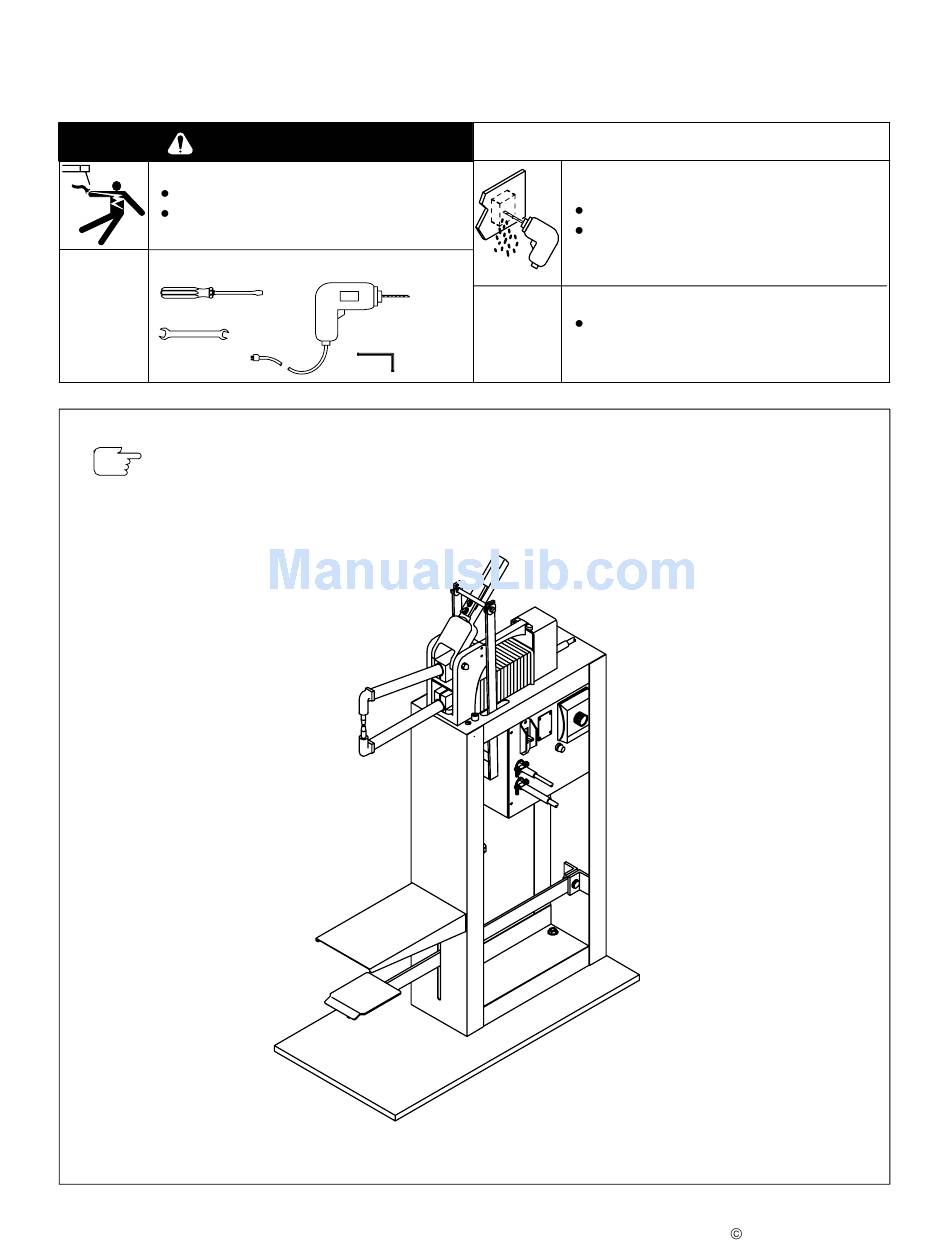

Figure 1. Assembled SWP-2 (MSW Spot Welder And Timer Illustrated)
Tools Needed:
7/32 in
3/32, 7/64 in
OM-712
2007−03
Use above FORM number when ordering extra manuals.
FILINGS AND TOOLS HITTING INSIDE
PARTS can damage unit.
Cover parts.
Clean unit and remove covers before operating.
MOVING PARTS can cause injury.
Keep away from pinch points.
029 822F
swarn3.1 2/93 / fwarn4.1 9/91
ST-800 203
2007 MILLER Electric Mfg. Co.
Advertisement
Related Manuals for Miller Electric SWP-2 Spot Welder Pedestal
Summary of Contents for Miller Electric SWP-2 Spot Welder Pedestal
- Page 1 OWNER’S MANUAL OM-712 029 822F 2007−03 Use above FORM number when ordering extra manuals. SWP-2 Spot Welder Pedestal (040 872) WARNING ELECTRIC SHOCK can kill. FILINGS AND TOOLS HITTING INSIDE PARTS can damage unit. Do not touch live electrical parts.
- Page 2 Item Part Part Description (Qty) 023 937 Pedal (1) 023 933 Extension Spring (1) 023 940 Case (1) 605 394 Cotter Pin, 1/8 x 3/4 (2) 010 910 Washer, 3/8 flat (7) For permanent installation, discard base (7) and mount case directly to floor. 024 292 Clevis Pin (1) 023 989 Pedestal Base (1) 601 865 Nut, 1/4-20 (7)
- Page 3 Assembly Instructions Continued 4. Assemble items 11 through 19, 5, 27 and 28, and connect to foot pedal. 5. Mount pedal guard (24) to case with supplied hardware. OM-712 Page 3...
- Page 4 Assembly Instructions Continued 6. Secure spot welder to case with u-bolt (31) and supplied hardware. 7. Secure pivot bracket (28) to spot welder handle with supplied hardware. 8. Route aircord cable (29) through trigger, both ring terminnals (21), collar (14) and collar (12). 9.
