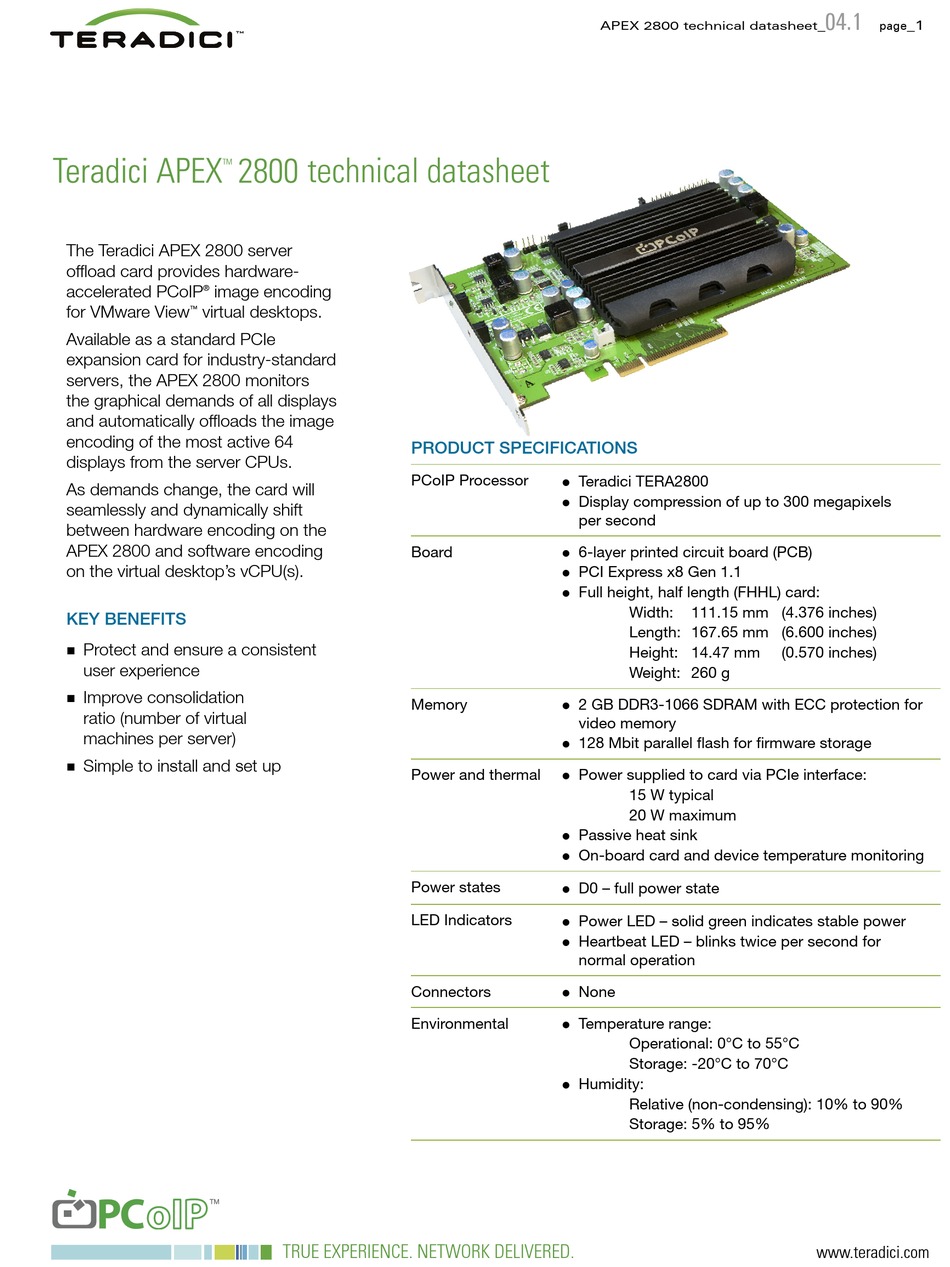

Teradici APEX 2800 Specifications

The Teradici APEX 2800 server
offload card provides hardware-
accelerated PCoIP image encoding
®
for VMware View virtual desktops.
™
Available as a standard PCIe
expansion card for industry-standard
servers, the APEX 2800 monitors
the graphical demands of all displays
and automatically offloads the image
encoding of the most active 64
displays from the server CPUs.
As demands change, the card will
seamlessly and dynamically shift
between hardware encoding on the
APEX 2800 and software encoding
on the virtual desktop's vCPU(s).
Key benefits
Protect an d ensure a consistent
„ „
user experience
Improve consolidation
„ „
ratio (number of virtual
machines per server)
Simple to install and set up
„ „
technical datasheet

PRODUCt sPeCifiCatiOns

PCoIP Processor
Board
Memory
Power and thermal
Power states
LED Indicators
Connectors
Environmental
TRUE EXPERIENCE. NETWORK DELIVERED.
APEX 2800 technical datasheet
Teradici TE RA2800
z „
Display compression of up to 300 megapixels
z „
per second
6-layer printed circuit board (PCB)
z „
PCI Express x8 Gen 1.1
z „
Full height, half length (FHHL) card:
z „
Width: 111.15 mm (4.376 inches)
Length: 167.65 mm (6.600 inches)
Height: 14.47 mm
Weight: 260 g
2 GB DDR3-1066 SDRAM with ECC protection for
z „
video memory
128 Mbit parallel flash for firmware storage
z „
Power supplied to card via PCIe interface:
z „
15 W typical
20 W maximum
Passive heat sink
z „
On-board ca rd and device temperature monitoring
z „
D0 – full pow er state
z „
Power LED – solid green indicates stable power
z „
Heartbeat LED – blinks twice per second for
z „
normal operation
None
z „
Temperature range:
z „
Operational: 0°C to 55°C
Storage: -20°C to 70°C
Humidity:
z „
Relative (non-condensing): 10% to 90%
Storage: 5% to 95%
04.1
_ _
1
page
(0.570 inches)
