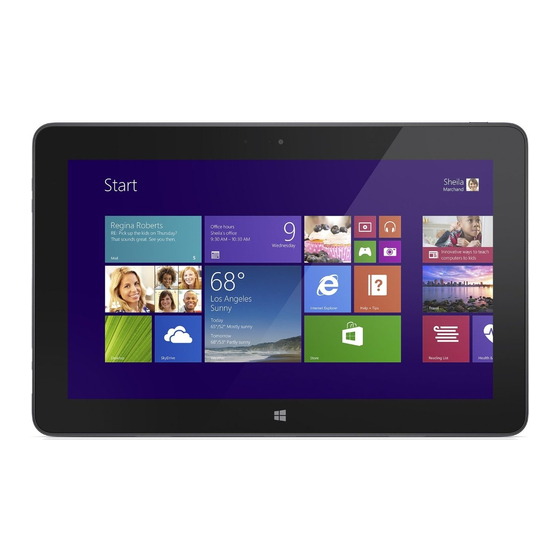

Dell Venue 11 Pro Manual

Statement of Volatility – Dell Venue 11 Pro-7130/7139
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
The Dell Venue 11 pro contains both volatile and non-volatile (NV) components. Volatile components lose their data
immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even
after power is removed from the component. The following NV components are present on the Dell Venue 11 pro system
board.
Table 1. List of Non-Volatile Components on System Board
Reference
Description
Designator
U3001
Embedded
Flash in
embedded
controller
MEC1641
U3101
Embedded
Flash in
embedded
controller
MSP430
U5801
Embedded
Flash in
sensor
controller
STM32F10
3CBU6
U6201
Embedded
Flash in
TPM
controller
AT97SC32
04
Part of panel
Panel
assembly
EEDID
EEPROM
System U2801
BIOS
J2801
System
BIOS
On board
System
memory
Memory –
solution.
LP-DDR3
memory
U1601,
U1602,
U1701,
Month yyyy
Volatility Description
Embedded Flash –
288KB user space, 32-bit Access,
10K cycles Endurance.
Embedded Flash –
NV-RAM 8KB user space. Single
bit write.
Embedded Flash –
NV-RAM 128KB user space for
programing.
Embedded Flash –
NV-RAM 1280 Bytes user space
for programing.
Non Volatile memory, 64K
bytes.
Non Volatile memory, 16 MB,
System BIOS and Video BIOS
for basic boot operation, PSA
(on board diags), PXE diags.
Non Volatile memory
1.2V LP-DDR3 SDRAM
device is a low-current self
refresh version of the 1.2V LP-
DDR3 SDRAM device.
User
Remedial Action (Action
Accessible
necessary to prevent loss of
for external
data)
data
No N/A
No N/A
No N/A
No N/A
No Part of panel assembly
No N/A
No N/A
Yes Power off system
