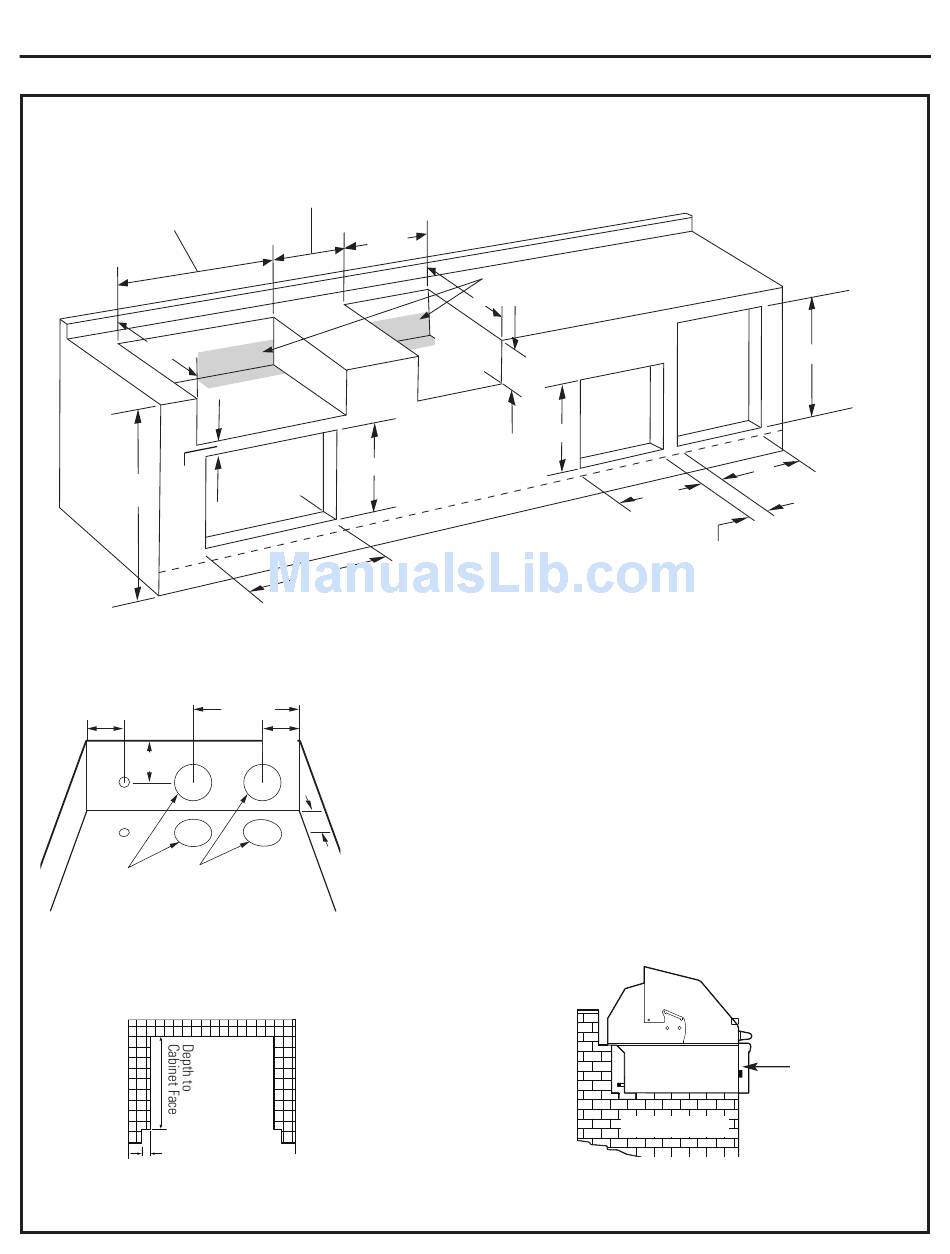

OUTDOOR GRILL, COOKTOP AND ACCESSORY CUTOUT DIMENSIONS

28-3/4" for 30" Models
40-3/4" for 42" Models
52-3/4" for 54" Models
24-1/2"
1-1/8"
36"
Min.
Min.
Gas and Electrical Locations
3-1/2"
7-3/8"
3-1/2" Dia. Hole 3-1/2" Dia. Hole
for Stationary for LP Tank Hose
Gas Line
• If the countertop has an overhang, it must be notched or
cut back flush with the front face of the cabinet below. This
will allow the grill or side burner to fit flush at the front.
Countertop Notch Detail
5/8" for Grills
9/16" for Outdoor Cooktop
Installation Preparation
12" Min.
Separation
Between Cutouts
11-7/8"
Grill Cutout
Non-Combustible
Access Doors 18-1/4"
ZX27AD
24-1/8"
GAS LOCATION:
10" Min.
Cut a 3-1/2" dia. hole for
the manifold connection
3-1/2"
as shown for LP tank
or stationary gas line
connections.
ELECTRICAL LOCATION:
Cut a 1" dia. hole
2"
at the back left side
of the cutout.
Gas and Electrical Locations
24-1/2"
Outdoor
Cooktop
ZGU122
10-7/8"
2-Drawer
Storage
ZX18DS
18-9/16"
*See Note.
*Note: When installing more than one accessory below the countertop, align the
accessories across the bottom by adjusting the dimension above the floor. The
cutouts must be offset depending on the product overlap below the cutout.
Overlap for ZX27AD is 7/8", for ZX18DS is 1-1/4" and for ZX18TC is 1-3/16".
• The grill and outdoor cooktop drops into the opening and
hangs from the side flanges. A deck is not required for
support on the bottom.
• The construction must be level and stable and capable
of supporting up to 400 lbs.
• The opening for the cooktop must be 24-1/2" deep from
the front of the countertop. Cut a 1" dia. hole below the
cooktop for the drain hose.
• Cut a 1" dia. hole at the back left side of the cutout
for the grill's electrical connection.
• A 120 volt outlet must be located within reach of the grill's
6' power cord. The transformer bracket must be mounted
within 3-1/2 feet of the outdoor grill.
• Maintain 12" separation between cutouts for an outdoor
grill and an outdoor cooktop installation.
The grill rotisserie connection is on the left side near
the front. Installation into a 24-1/2" front-to-back
opening allows access to the rotisserie outlet.
11
Trash Bin
ZX18TC
16"
17-1/4"
2-1/4" min.
Rotisserie
Connection
Non-Combustible
24"
