- Page 1 Laney Alliance USER MANUAL MODEL : VC50 : VC100 : VH100R...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric products, basic cautions should always be followed, including the following. Read all safety and operating instructions before using this product All safety and operating instructions should be retained for future reference Obey all cautions in the Operating instructions and on the back of the unit All operating instructions should be followed This product should not be used near water, i.e. - Page 3 Laney Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient to constitute a risk of electrical shock to persons Intended to alert the user of the presence of important operating and maintainance (servicing)
-
Page 4: Before Switching On
Laney INTRODUCTION Laney Congratulations on your decision to purchase a amplifier. Laney products are designed with ease of operation as a primary objective, however to ensure you derive the best from your new amplifier, it is important you take time to read this user manual and to familiarise yourself with the control functions and... - Page 5 MODEL VC50/VC100 & VH100R CLEAN Reverb & Effect levels should be set to required DRIVE MIDDLE VOLUME BRIGHT VOLUME BASS TREBLE REVERB EFFECTS RESONANCE Both HI and LO Both HI and LO Both HI and LO inputs should be inputs should be inputs should be experimented with experimented with...
-
Page 6: Explanation Of Terms

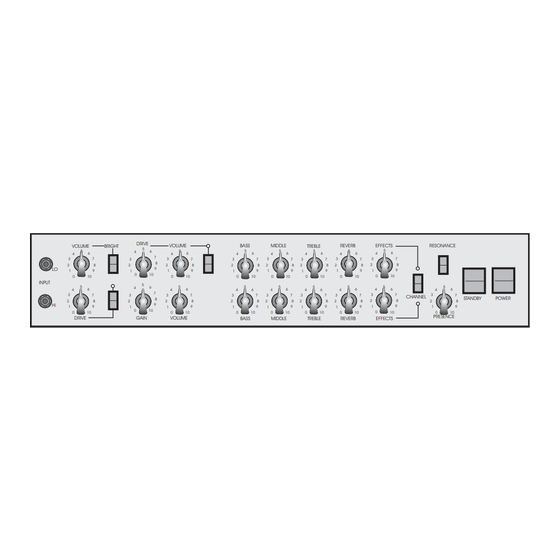

MODEL VC50/VC100/VH100R 11 12 DRIVE VOLUME VOLUME BASS MIDDLE TREBLE REVERB EFFECTS RESONANCE BRIGHT INPUT CHANNEL STANDBY POWER PRESENCE DRIVE GAIN VOLUME BASS MIDDLE REVERB EFFECTS TREBLE EXPLANATION OF TERMS N.B. It should be noted that the layout of the control panel is reversed and inverted on the VH100R when compared to the layout diagrams LO INPUT: This input is attenuated down approximately 6dB from the high input. - Page 7 MODEL VC50/VC100/VH100R 11 12 DRIVE VOLUME BRIGHT VOLUME BASS MIDDLE TREBLE REVERB EFFECTS RESONANCE INPUT CHANNEL STANDBY POWER PRESENCE DRIVE GAIN VOLUME BASS MIDDLE TREBLE REVERB EFFECTS PRESENCE: Controls the high frequency material in the power amplifier. Adjusts the overall volume of the overdrive channel VOLUME Adjusts the input level of the overdrive channel.
- Page 8 MODEL VC50/VC100/VH100R VC50/VC100 REAR PANEL FOOTSWITCH 4 OHM 8 OHM LINE INSERT EFFECTS LOOP EFFECTS LOOP 5881 EL34 POWER FUSE HT FUSE RETURN POWER BIAS LEVEL INSERT EXTENSION INTERNAL RETURN SEND SIDE BYPASS RETURN SEND CABINET CABINET SEND RETURN RETURN CHAIN OVERDRIVRE CHANNEL B CLEAN CHANNEL A...
- Page 9 CLEAN CHANNEL A Slave power amplifier FX.C FX.B EG. Multi-FX unit EG. Chorus in 'side chain' mode FX.A Laney EG. Slap back delay In via power amp socket Nominal Level 0dBu or Graphic EQ in insert mode FOOTSWITCH 4 OHM 8 OHM...
-
Page 10: Useful Hints And Tips
USEFUL HINTS AND TIPS Laney The following hints and tips are provided so that you can get the best performance out of your valve amplifier. These are only guidelines and should be adapted for your own preferences:- Valve amplifiers take a short time to 'warm up' to optimum operating temperature. To get optimum performance out of your amp allow the amplifier to 'warm up' for three mins. -
Page 11: Technical Specification
No.6. All of these trouble shooting procedures can be performed quickly, without the aid of any sophisticated test gear. We suggest that Laney you always maintain spare valves for emergency purposes. Keep your free of dirt, dust and moisture to prevent... - Page 13 Laney POWER TO THE MUSIC In the interest of continued product development BLT Industries Ltd. Reserves the right to amend product specification without prior notification.
