INSTALLATION INSTRUCTIONS FOR UPPER AND LOWER GRILLE KITS
UPPER GRILLE KITS - SUNRISE
Cat. No.#
Model
Description
H3565
SUGK35C
35" Charcoal
H3567
SUGK35SP
35" Satin Pewter
H3573
SUGK40C
40" Charcoal
H3575
SUGK40SP
40" Satin Pewter
H3581
SUGK45C
45" Charcoal
H3583
SUGK45SP
45" Satin Pewter
LOWER GRILLE KITS - SUNRISE
Cat. No.#
Model
Description
H3569
SLGK35C
35" Charcoal
H3571
SLGK35SP
35" Satin Pewter
H3577
SLGK40C
40" Charcoal
H3579
SLGK40SP
40" Satin Pewter
H3585
SLGK45C
45" Charcoal
H3587
SLGK45SP
45" Satin Pewter
KIT CONTENTS
ITEM
QUANTITY DESCRIPTION
1
1 ea.
Grill, Upper or Lower
2
1 ea.
Instruction Sheet
Table 1
- Refer to Figure 1
Notes:
• The upper and lower grilles are ordered
separately.
• Only the lower grilles include knobs (see 2
knobs shown on Crescent Style, Figure 1).
750,202M
REV. NC 02/2006
FOR USE WITH LENNOX
Model Series
MPD3530, MPD35ST,
MPB-35ST & EDV3530
EDV4035, EDVST,
MPD4035, EBVST
EDV4540,
MPD4540
Model Series
MPD3530, MPD35ST,
MPB-35ST & EDV3530
EDV4035, EDVST,
MPD4035, EBVST
EDV4540,
MPD4540

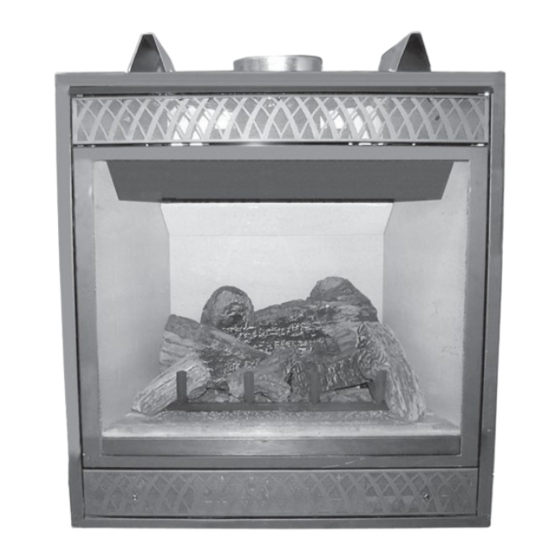

Figure 1
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
DECORATIVE UPPER AND LOWER GRILLE KITS
35/40/45 GAS FIREPLACES
™
UPPER GRILLE KITS - CRESCENTS
Cat. No.#
Model
H3541
CUGK35C
35" Charcoal
H3543
CUGK35SP
35" Satin Pewter
H3549
CUGK40C
40" Charcoal
H3551
CUGK40SP
40" Satin Pewter
H3557
CUGK45C
45" Charcoal
H3559
CUGK45SP
45" Satin Pewter
LOWER GRILLE KITS - CRESCENTS
Cat. No.#
Model
H3545
CLGK35C
35" Charcoal
H3547
CLGK35SP
35" Satin Pewter
H3553
CLGK40C
40" Charcoal
H3555
CLGK40SP
40" Satin Pewter
H3561
CLGK45C
45" Charcoal
H3563
CLGK45SP
45" Satin Pewter
Sunrise Style
(upper grille shown)
Crescent Style
(lower grille shown)
Knobs
LENNOX HEARTH PRODUCTS
KITS AND ACCESSORIES
CHARCOAL & SATIN PEWTER
Description
Model Series
MPD3530, MPD35ST,
MPB-35ST & EDV3530
EDV4035, EDVST,
MPD4035, EBVST
EDV4540,
MPD4540
Description
Model Series
MPD3530, MPD35ST,
MPB-35ST & EDV3530
EDV4035, EDVST,
MPD4035, EBVST
EDV4540,
MPD4540
1
Advertisement
Related Manuals for Lennox MPD3530
Summary of Contents for Lennox MPD3530
- Page 1 LENNOX HEARTH PRODUCTS KITS AND ACCESSORIES 750,202M DECORATIVE UPPER AND LOWER GRILLE KITS REV. NC 02/2006 CHARCOAL & SATIN PEWTER INSTALLATION INSTRUCTIONS FOR UPPER AND LOWER GRILLE KITS FOR USE WITH LENNOX 35/40/45 GAS FIREPLACES ™ UPPER GRILLE KITS - SUNRISE UPPER GRILLE KITS - CRESCENTS Cat.
- Page 2 Read and understand all instructions and warnings in this docu- Lower Panel - Remove the lower louvered or radiant panel assemby as ment before beginning the installation. follows: • Hinged Panel (see Figure 3) - Gently depress the outer top corners of TOOLS REQUIRED the louvered Control Compartment Access Panel until the spring-loaded magnetic catches "pop"...
- Page 3 2. If fi replace has a modesty panel with side locating tabs as shown in 3. Remove Magnet in the Control Compartment (if necessary) per Figure 5, the left tab will require the following modifcation: instructions in Figure 6. a. Remove the modesty panel from the control compartment (see instructions in Homeowners Care and Operation Manual).
- Page 4 Figure 8 - COMPLETED INSTALLATION NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifi cations, prices and the discontinuance of colors, styles and products. Consult your local distributor for fi...
