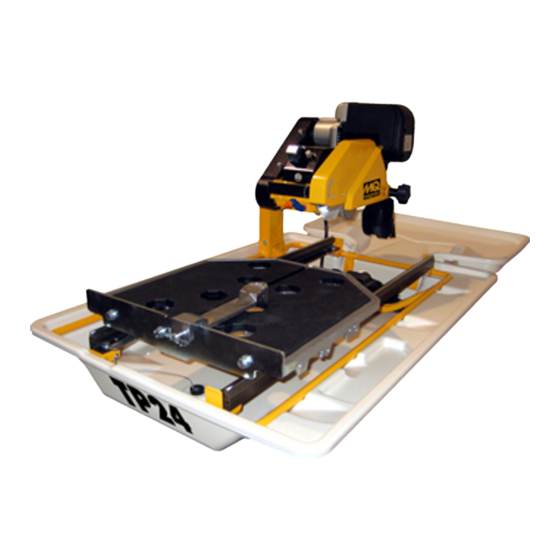

MULTIQUIP TP24 Operation And Parts Manual

Tile saw (electric motor)
Hide thumbs
Table of Contents

Advertisement

Quick Links

OperatiOn and parts Manual
MOdel tp24
tile saw

(electric MOtOr)

Revision #2 (04/12/12)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading

Related Manuals for MULTIQUIP TP24

Summary of Contents for MULTIQUIP TP24

  • Page 1: Electric Motor

    OperatiOn and parts Manual MOdel tp24 tile saw (electric MOtOr) Revision #2 (04/12/12) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65 Warning

    2 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 3: Silicosis/Respiratory Warnings

    NIOSH/MSHA for the materials being used. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 3...

  • Page 4: Table Of Contents

    Tools And Accessories ........50-51 Terms And Conditions Of Sale — Parts ....52 NOTICE Specifications and part numbers are subject to change without notice. page 4 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 5: Parts Ordering Procedures

    All orders are treated as Standard Orders and will ship the same day if received prior to 3PM PST. We aCCepT aLL maJor CredIT CardS! Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 5...

  • Page 6: Safety Information

    CouLd result in deaTH or SerIouS InJury. CauTIon Indicates a hazardous situation which, if not avoided, CouLd result in mInor or moderaTe InJury. NOTICE Addresses practices not related to personal injury. page 6 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 7: General Safety

    „ aLWayS check the equipment for loosened threads or bolts before starting. „ do noT use the equipment for any purpose other than its intended purposes or applications. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 7...

  • Page 8: Blade Safety

    „ Rotating blade can cut and crush. aLWayS keep hands and feet clear while operating the saw. page 8 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 9 „ aLWayS make certain that proper power or extension cord has been selected for the job. „ Protect the cable from heat, oil, and sharp edges. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 9...

  • Page 10: Specifications

    115V, 60 Hz — 100 GPH Weight 65 lbs. (29 kg) Table 2. electric motor Specifications Horsepower volts amps motor rpm 3000 RPM Cycle phase Class page 10 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 11: Dimensions

    Figure 1. Dimensions Table 3. dimension reference Letter dimensions 36.5 in. (927 mm) 26 in. (660 mm) 20.4 in. (518 mm) Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 11...

  • Page 12: General Information

    10-inch (254 mm) diamond blades that match the material being cut. Ask your dealer, or call Multiquip about your specific cutting application. page 12 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 13 Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 13...

  • Page 14: Saw Components

    Figure 2. Saw Components page 14 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 15: Saw Components

    12. Blade guard Brushes — Prevents foreign matter and debris from accumulating on the saw blade. Replace brushes immediately when they become worn or damaged. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 15...

  • Page 16: Electric Motor Components

    „ Universal Wrench „ Rip Guide of the legs. „ Saw Blade 3. Seat the saw securely onto the stand. page 16 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 17: Set-Up

    BLADE GUARD WATER WATER PUMP HOSES DRAIN PLUG BEARING HOUSING Figure 6. Connecting the Water Pump Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 17...

  • Page 18: Cutting Depth

    “under cutting” condition brought about by highly abrasive material or improper under cutting core protection. page 18 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 19: Blade Installation

    Do not cut too deep or too fast into the material. Do not cut any material not recommended by blade Do not use damaged blades. manufacturer. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 19...

  • Page 20: Sawing Guides

    If possible use a ground fault circuit interrupter to protect the operator Figure 12. Cutting Table from possible electric shock. page 20 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 21: Sawing Guides

    3. Place material onto miter block and you are ready to cut. Figure 13. Optional Miter Block Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 21...

  • Page 22: Operation

    The possibility exists of electrical Figure 15. Power ON/OFF Switch (ON) shock, electrocution which could cause severe bodily harm, even death. page 22 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 23: Operation

    5. Store saw in a clean dry location where it will be out of the reach of children. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 23...

  • Page 24: Maintenance

    15. Grease pivot bearings periodically. a day in heavy cutting. The sludge is abrasive and will shorten the life of the water pump and blades. page 24 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 25: Maintenance Intervals

    If the motor does not run, have the machine inspected by a qualified electrician. Figure 17. Water Tray Removal Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 25...

  • Page 26: Water Pump Maintenance

    6. To reassemble, follow steps 1-4 in reverse order. Make sure belt is at the proper tension before tightening the four bolts at the base of the motor. page 26 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 27 Do not adjust the bearing housing pulley. 7. After aligning the belt, tighten the hex screw. 8. Replace the belt guard and lock into place using 4 screws. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 27...
  • Page 28 Figure 22. Adjust Right Guide Rail page 28 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 29 RUBBER CAP C RUBBER CAP B Figure 26. Add Shims Figure 24. Lowering Roller 5. Once alignment is successful, replace saw back into water tray. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 29...
  • Page 30 1. Be sure to tighten the lock nuts and replace the rubber caps. FLAT ROLLERS ROTATE IN THIS MANNER Figure 27. Flat Roller Rotation page 30 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 31: Wiring Diagram (Electric Motor)

    Power Outlet for Water Pump Black Motor White Green Power Cable White White Switch Black Black Black Overcurrent Breaker Wiring Box Figure 28. Electric Motor Wiring Diagram Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 31...

  • Page 32: Troubleshooting (Blade)

    Poor tension in blade material Have the saw blade tensioned The material feed is too high; proceed more Too much load on the saw blade slowly page 32 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 33: Troubleshooting (Saw)

    Clean the filter of the water pump water at all Pump wheel of the immersion pump is Disassemble the immersion pump and clean it blocked by dirt Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 33...

  • Page 34: Explanation Of Code In Remarks Column

    Multiquip. Other entries will for sale through Multiquip. be clarifi ed in the “Remarks” Column. page 34 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 35: Suggested Spare Parts

    1....TPS100003 ...SWITCH, TOGGLE 15A 1....TP100152 .....CARBON BRUSH NOTICE Part numbers on this Suggested Spare Parts list may supersede/replace the part numbers shown in the following parts lists. Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 35...
  • Page 36 Main saw assy. CUTTING TABLE page 36 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 37 NUT, M8 X 1 TP100132 WATER PUMP, 230 GAL/HR TP100109 BOLT, HEX M8 X 1.25 X 16L TP100080 WASHER, SPRING M8 TP100141 WASHER, NARROW M8 Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 37...
  • Page 38 SWITCH ASSY. BEARING HOUSING ASSY. page 38 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 39 WASHER, SPRING M8 TP100079 WASHER, NARROW M8 TP100084 BOLT, HHS M6 X 1 X 20L TP100061 WASHER, NARROW M6 TP100073 HANDLE, RECTANGLE 26.5H X 7W X 93L Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 39...
  • Page 40 MOtOr assy. page 40 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 41 TP100156 WASHER, NARROW M5 TP100157 WASHER, NARROW M4 TP100158 CROSS SCREW, M5 X .8 X 25L TP100159 CROSS SCREW, M4 X .7 X CROSS SCRE Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 41...
  • Page 42 SIDE EXTENSION TABLE (OPTION) page 42 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 43: Cutting Table Assembly

    WASHER LOCK M6 TP25095 HEX BOLT M6X1.0X30L TP100107 HEX BOLT M8X1.25X25L TP100108 HEX BOLT M8X1.25X20L TP0384 WASHER NARROW M6 TP0120 WASHER NARROW M8 TP100109 HEX BOLT M8X1.25X20L Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 43...
  • Page 44 44 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 45: Blade Guard Assembly

    TP100059 D8 90° ELBOW HOSE CONNECTOR TP100060 RUBBER SPLASH GUARD TP481101 M5 RIVET TP100061 WASHER NARROW M6 TP0322 HEX BOLT M6X1.0X10L TP0353 CROSS SCREW M4X0.7X8L Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 45...
  • Page 46 46 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)

  • Page 47: Bearing Housing Assembly

    TP100121 BEARING RADIAL D47 TPS1000062 KEy, SqUARE 5X5X30L TP0316 SET SCREW FLAT PT M6X1.0X10L TP100122 HOSE, BLADE GUARD TP100123 HOSE, WATER PUMP TP100124 M17 E-CLIP Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 47...
  • Page 48 48 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 49 SCREW CROSS M4X0.7X15L TP420291 SHIELD POWER SWITCH TPS1000032 BOOT POWER SWITCH TPS1000041 BOOT RESET BUTTON TP420294 NUT, M4 X 0.7 TP100076 POWER SWITCH ASSy ........1....INCLUDES ITEMS W/@ Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 49...

  • Page 50: Tools And Accessories

    50 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 51 MASTER GUIDE TEMPLATE BASE ....1....OPTIONAL TPS100035 45°/90° RIP GUIDE TPS100034 MITER BLOCK ...........1....OPTIONAL TPS1000MG MASTER GUIDE ..........1....OPTIONAL TP100102 SIDE EXTENSION TABLE .........1....OPTIONAL TPSDT1010ST SAW STAND ............1....OPTIONAL Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 51...

  • Page 52: Terms And Conditions Of Sale - Parts

    Multiquip’s designated receiving point. page 52 — Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12)
  • Page 53 Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 53...
  • Page 54 © COPYRIGHT 2012, MULTIQUIP INC. Multiquip Inc, the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
