La Crosse Technology WT-8112U Instruction Manual

WT-8112U
RADIO-CONTROLLED SOLAR CLOCK
INSTRUCTION MANUAL
Contents
Languages
__________________________________________
English
1

WWVB Radio controlled time with manual time setting

Time display: hour, minute, second

12/24h time format display

Alarm setting with snooze function

Calendar display

Weekday display (4 languages to choose from: English,
Spanish, French, German)

Time zone setting

Daylight savings time ON/OFF option (DST)

Solar mode setting

Indoor temperature display in ºF/ ºC selectable

Indoor humidity display in RH%

Primary Alkaline battery or Solar Rechargeable Alkaline
battery selection

Low battery indicator

Wall mount or freestanding
TO INSTALL / REPLACE BATTERY
The solar clock can use either the included 1 x alkaline rechargeable
battery (charged by solar panel) or 1 x AA alkaline battery (non-
rechargeable; not included).
WARNING! "Do Not recharge the included solar rechargeable
batteries in any device other than the product they came with.
Recharging the solar rechargeable batteries in battery chargers or
other third party devices will damage the batteries and charging
device"
INITIAL SETUP (USING INCLUDED SOLAR RECHARGEABLE
BATTERY FROM THE FACTORY)
1. Open battery compartment on the back of the Clock and make
sure that the battery switch under the battery compartment is
positioned to the left.
If it is not, please slide the switch to the left before proceeding.
2. Locate the battery insulator tab and gently pull to remove it.
3. Next, slide the battery switch to the SOLAR position. The
clock should activate.
4. Wait for WWVB signal.
3
Page
2
TABLE OF CONTENTS
Topic
Features
Battery Installation
Setting Up
Atomic time - WWVB Radio Controlled Time
Function keys
LCD Screen
Manual Settings
Alarm setting and snooze
Mounting
Care and maintenance
Specifications
Warranty
FEATURES:

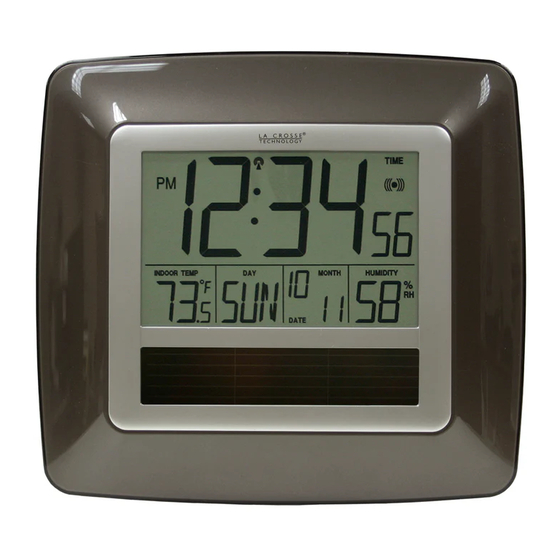

RADIO-CONTROLLED SOLAR CLOCK:
LCD1
display
LCD2
display
Solar
panel
SWITCH LEFT
(START-UP /
RESET)
(STANDARD
ALKALINES)
Slide switch to
LEFT position
before (1) start-up /
reset or (2) any type
of battery
replacement
BATTERY COMPARTMENT
NOTE: This clock requires 1 battery.
There is a "filler battery shell" in the top
spot. Please leave this filler in place.
Use a non-rechargeable alkaline battery:
1. Remove the included solar rechargeable AA battery from the
compartment.
2. Use the switch to the left to select the alkaline battery.
3. Insert 1 x AA Alkaline battery into the compartment, observing
the correct polarity (see marking inside battery compartment.
4. Replace battery cover
5. IMPORTANT: If the solar panel is facing a permanent strong
light source (eg., on top of a refrigerator with halogen lamp),
please switch the clock to alkaline battery mode to avoid over-
charging re-chargeable alkaline battery.
DO NOT SET THE CLOCK.
Please help in the preservation of the environment
and return used batteries to an authorized depot.
Page
3
3
5
5
6
7
7
11
12
14
15
16
Wall Mount
Location
Function keys
Battery cover
Foldable
stands
2
SWITCH RIGHT
(SOLAR OPERATION)
(SOLAR-
RECHARGEABLE
BATTERY)
Slide switch to RIGHT
position once solar-
rechargeable battery
are inserted and
insulator tab is
removed
WARNING
Do NOT recharge the
included solar-
rechargeable battery
outside of this product
because it will damage the
battery and other charging
.
devices
4
