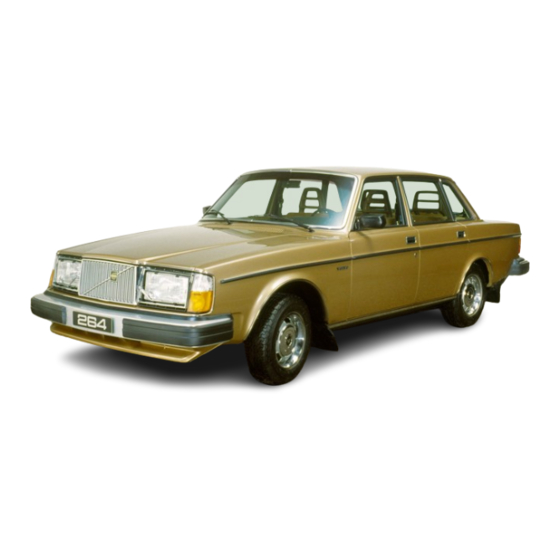

VOLVO 262 264 265 Notice to Owner: Your Volvo has been built to comply with all North American safety and anti- pollution regulations and evidence of this can be verified from the certification labels attached to the door opening sheet metal and on the left wheel housing in the engine compartment. For further information regarding these regulations, please talk to your local dealer.
Page 2
1976 Volvo 262 264 265 Interior light, sun roof, fuel tank cap 26 Rear seat, model 265 27 Tail gate, model 265 28 START AND DRIVING Breaking in 31 Starting the engine 32 Gear shift positions 33 Automatic transmission 34...
Page 3
1976 Volvo 262 264 265 Service diagnosis 75 Specifications 80 Consumer Information 86 Index 91 pg. 2 General Information pg. 3 Keys file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_00.htm (3 of 4)12/22/2006 9:24:43 PM...
1976 Volvo 262 264 265 Record the number code of the keys. In the event the original keys are lost, duplicates may be ordered from your Volvo dealer. Top of Page file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_00.htm (4 of 4)12/22/2006 9:24:43 PM...
Page 7
1976 Volvo 262 264 265 J Trip odometer (last figure represents 1/10 mile/km) K Trip odometer reset knob Push in to reset L Reminder light, EGR Service M Tachometer (certain models) Reads thousands of engine rpm. Orange range for momentary use, during acceleration.
Page 8
F Brake failure warning light (red) If the light comes on while driving and the brake pedal can be depressed further than normal, it is an indication that one of the brake circuits is not functioning. Proceed cautiously to a Volvo dealer for a check.
Page 9
U.S. Environmental Protection Agency, the light will come on at 15,000 mile intervals. This is a reminder to take your Volvo to your Volvo dealer to get the EGR valve serviced. The light will stay on until reset by your Volvo dealer.
Page 10
1976 Volvo 262 264 265 Parking brake (hand brake) The lever is situated between the front seats. The brake is applied to the rear wheels. In order to obtain the best possible performance of the parking brake, the brake linings should be broken...
Page 11
1976 Volvo 262 264 265 Headlights and parking lights All lights off Parking lights on Headlights and parking lights on Switch from upper to lower beams, and vice versa, by moving the turn signal switch lever on the left side of the steering column towards the steering wheel. The lights can be used without switching on the ignition key.
Page 12
1976 Volvo 262 264 265 pg. 10 Turn signals Turn signals 1 Signal lever engaged for normal turns. 2 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral position when released.
Page 13
1976 Volvo 262 264 265 Wiper/washer 1 "Single stroke" position. Switch returns automatically when released. 2 Wipers, low speed 3 Wipers, high speed 4 Washer Adjusting washer nozzles The nozzles may be adjusted by inserting a needle into the metal insert and rotating nozzle.
Page 14
1976 Volvo 262 264 265 Clock To reset the hands, push in the reset knob and turn. Cigarette lighter To operate, depress the knob fully. When the knob automatically releases, the cigarette lighter is ready for use. Ash trays To remove the ash trays depress the center spring and remove.
Page 15
1976 Volvo 262 264 265 1 Electrically operated window winder (Grand Luxe) 0 Off 1 Window down 2 Window up pg. 13 Tail gate window wiper, el. heated rear window, hazard warning flasher 2 Tail gate window wiper/washer (model 265) 0 Off 1 Wiper and washer operating.
Page 16
1976 Volvo 262 264 265 2 Tail gate wiper only. The fluid reservoir is located in the concealed storage area under the floor on the right side of the rear cargo area. Reservoir capacity is approx. 1.5 qts. 3 Electrically heated rear window...
Page 17
1976 Volvo 262 264 265 Heating system 1 TEMP Left = cool Right = warm 2 FLOOR Out = no air to floor In = full flow of air to floor 3 DEF (Defrost) Out = low volume air flow to defroster...
Page 18
1976 Volvo 262 264 265 2 FLOOR depressed 5 FAN >>> 2(or 3) 6 All outlets halfway open . . . remove condensation 1 TEMP >>>WARM 3 DEF depressed 5 FAN >>> 2 (or 3) Always keep front external inlet grille (in front of the windshield) clear of obstructions (snow, ice, etc.).
Page 19
Note: For rapid removal of condensation from inside glass surfaces, the air conditioner can be switched on even when not required for interior cooling. The air conditioner will dehumidify the air inside the vehicle. Have your Volvo dealer check the system for correct operation yearly. pg. 17 file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_01b.htm (1 of 15)12/22/2006 9:24:44 PM...
Page 20
1976 Volvo 262 264 265 This page left intentionally blank. pg. 18 Front seats Horizontal seat adjustment Seat inclination adjustment file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_01b.htm (2 of 15)12/22/2006 9:24:45 PM...
1976 Volvo 262 264 265 Lumbar support adjustment pg. 19 Front seats Seat back release, 2-door models Press the button and fold forward. file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_01b.htm (3 of 15)12/22/2006 9:24:45 PM...
Page 22
1976 Volvo 262 264 265 Driver seat height There are two levers, each with three positions, for adjusting the height of the front or the back of the seat. This means that the seat cushion angle can be adjusted for comfort.
Page 23
1976 Volvo 262 264 265 To buckle, pull the belt slowly across your body until the latch plate can be inserted into the buckle with a discernable snap. Take care that the belt does not twist. To release, depress the red button on the buckle and let the belt rewind to its rest position.
As the seat belts lose much of their strength when exposed to violent stretching, they should be replaced after collision, even though they may appear to be undamaged. Never modify or repair the belt on your own, but have this done by a Volvo workshop. pg. 22 Doors and locks...
Page 25
1976 Volvo 262 264 265 Unlocking front doors Both front doors can be unlocked by using the key. Turning the key 1/4 turn counterclockwise lifts the lock buttons on the window ledge and the door can be opened by pulling the handle.
1976 Volvo 262 264 265 pg. 23 Rear doors, trunk lid Child safety locks, 264 and 265 The buttons are located on the rear door jambs. A Normal lock function. B The door cannot be opened from the inside. Trunk lid, 262 and 264 To open th lid, turn the knob clockwise.
Page 27
1976 Volvo 262 264 265 To open the hood Pull the release handle (located on the left side under the dash). Lift the hood slightly, insert a hand under the center line of the hood and depress the safety catch handle.
1976 Volvo 262 264 265 Outside mirrors A Adjustment sideways B Adjustment up-down Inside view mirror D Normal position N Night position, reduces glare from following headlights The mirrors should always be adjusted before driving. pg. 26 Interior light, sun roof, fuel tank cap...
Page 29
2 Light always off. 3 Light is on when either of the front doors are opened. Model 265 may be equipped with a light that differs from that in the 262/264. Sun roof (certain models) The sun roof is operated by a handle located between the sun visors.
1976 Volvo 262 264 265 Filling fuel The gas cap is located behind the door on the right rear fender. When filling, position the cap in the special bracket on the door. Note: Unleaded fuel is required for certain models. A label on the instrument panel and rear fender, near the filler inlet, will remind owners and filling station attendants of this requirement.
Page 31
1976 Volvo 262 264 265 Pull up on either of the parallel-connected handles on the rear side of the seat back and fold the seat back forward and down so that it lies flat. The rear seat back and cushion are fixed automatically in their respective positions.
1976 Volvo 262 264 265 To open from the inside Pull out the handle at the gate bottom. To close Push the red catch upwards and at the same time lift the gate 1/4 inch. Close the gate slowly but firmly.
Page 33
1976 Volvo 262 264 265 Safety catch A The lid cannot be opened from the inside. B The lock functions normally. Spare wheel Remove the two screws and lift off the cover. The spare wheel is now accessible. Concealed storage space There are two concealed stowing places under the cargo compartment floor.
Service Inspection To ensure proper operation the car should be taken to a Volvo dealer after the first 600 miles for a service inspection. The oil in the engine, transmission and rear axle will then be changed. This is very important since the oil rapidly collects impurities during the break-in period.
1976 Volvo 262 264 265 4th gear 80 mph (130 km/h) 2) 90 mile/h (150 km/h) with overdrive engaged. Avoid driving at low speed in high gear. Do not use "kick-down" when driving a car equipped with an automatic transmission during the first 1,200 miles.
1976 Volvo 262 264 265 pg. 33 Gearshift positions 4-speed manual transmission Depress the clutch fully when changing gears. Overdrive The overdrive can be engaged in 4th gear only. IN engaged OUT disengaged No extra operation of clutch or throttle pedal is normally necessary. Engagement is facilitated if the accelerator pedal position is maintained steady.
1976 Volvo 262 264 265 Reversing inhibitor Lift the ring to enter the reverse gear. The ring locking mechanism prevents reverse gear from being engaged unintentionally. pg. 34 Automatic transmission Shift positions P park R reverse N neutral D drive 2 ,1 low gear The gear selector can be moved freely between D and 2.
Page 38
1976 Volvo 262 264 265 Depressing the selector knob slightly allows selection of positions N and 1. Depressing the selector knob fully allows selection of positions R and P. This is also necessary when initially bringing the selector out of position P.
1976 Volvo 262 264 265 If position 1 is selected when driving at high speeds, 2 is engaged first and 1 when the speed has dropped to approx. 30 mph (50 km/h). NOTE: No upshift once 1 is engaged. Use position 1 when you want a low gear and no upshift, for instance, when entering and descending steep grades.
Page 40
1976 Volvo 262 264 265 Front eyelet To the right, under the car. Rear eyelet To the right, under the car. Precautionary steps. To observe when towing Steering must be unlocked. Observe legal speeds. Remember that power brake and power steering assists will not be available when engine is inoperative.
Observe legal requirements. Note: Additional lighting equipment must be connected to specific points in the electrical system. Otherwise, bulb failure warning light will come on. (See your Volvo Dealer.) Trailer hauling does not normally present any particular problems, but take into consideration: the hitch tongue load should not exceed 160-200 lbs (75-90 kgs).
Page 42
Roadholding is greatly affected by tire pressure. Volvo advises not to experiment with the pressure and instead follow Volvo recommendations. Volvo also warns against mixing tires of different types, such as bias ply with radial tires, as this will alter the cars handling.
Page 43
The pedal stroke increases slightly and the pedal feels softer but the pedal pressure required does not increase noticeably. Drive cautiously to a Volvo dealer or Service Station to have the brake system checked. Breaking in parking brakes To obtain best parking brake performance, the brake linings should be broken in.
41 Maintenance services Maintenance services Your Volvo has passed two major inspections before it was delivered to you. One was made at the Volvo factory and one was performed by the dealer, according to Volvo specifications. When driven 600 miles, your car should be brought to the Volvo dealer who will perform a service inspection;...
1976 Volvo 262 264 265 to your "Warranty and Maintenance Records Record book" for further details. pg. 42 Gas station checks Fuel RON 91 Octane rating 91 For vehicles with catalytic converters unleaded fuel must be used. Vehicles not equipped with catalytic converter can use leaded or unleaded fuel (see also page 26).
1976 Volvo 262 264 265 Level of windshield fluid The following should also be carried out regular intervals. Description on page Washing Polishing Cleaning Rust protection pg. 48 Engine oil A oil dipstick B oil filler hole Checking oil level The oil level should be checked each time the fuel tank is refilled.
1976 Volvo 262 264 265 used when the temperature is continuously above 32°F. Driving under adverse conditions such as high ambient temperatures, trailer pulling, hill climbing, driving long distances at high speeds, extended periods of idling or low speed operation, short trip operation at freezing temperatures may require oil and filter changes more frequently (every three months).
1976 Volvo 262 264 265 Add coolant until the level is up to the MAX mark or slightly above. Start engine and run until hot. Check the cooling system connections for tightness. Also re-check the coolant level. Capacity: 11.5 US qts. /9.6 Imp. qts.
Page 53
Special instructions for work on the fuel injection system Extreme cleanliness is essential when working on the injection system. Great care must be observed. Injection system service should be handled by authorized Volvo dealers, using equipment intended for this service.
Page 54
1976 Volvo 262 264 265 The fuel filter is located on the firewall. This filter is to be changed every 30,000 miles. The filter is replaced as one complete unit. Filter replacement should be made in a shop. Fuel (tank) filter A filter is installed in the suction line in the fuel tank.
Page 55
1976 Volvo 262 264 265 Ignition timing Distributor advance mechanism The ignition timing should be adjusted every 15,000 miles. All adjusting work should be done with the proper equipment. The distributor is one of the most sensitive engine units. Careless handling can lead to decreased engine output and high fuel consumption or even serious damage to the engine.
Page 56
1976 Volvo 262 264 265 Rubber hoses and flame guard should be checked for damages at the same time. Replace if necessary. V Engine External Exhaust Emissions B Vacuum amplifier (some models) C Thermostat D Solenoid valve (some models) E Micro switch (some models)
Page 57
1976 Volvo 262 264 265 Air Injection Reactor System This system admits fresh air to the hot exhaust gases in the exhaust manifold. The fresh air will burn the unburned portion of the exhaust gases to reduce hydrocarbon and carbon monoxide contents.
Page 58
1976 Volvo 262 264 265 through channels in the insert. The channel walls are covered by a thin layer of platina-palladium. These metals act as catalysts, permitting a chemical process without actually taking part in it. The CO content will increase if the Catalytic Converter is damaged.
Page 59
1976 Volvo 262 264 265 Contents Top of Page file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_03a.htm (16 of 16)12/22/2006 9:24:47 PM...
1976 Volvo 262 264 265 Automatic transmission, BW55 Capacity: 5.8 US qts = 5.5 liters Fluid Automatic Transmission Fluid type F(FLM). type: Replace: no oil changes necessary under normal driving conditions. When checking fluid level the car should be on level ground, in PARK position with the engine idling.
Page 62
Replace: every third year or 45,000 miles . The clutch fluid does not need to be changed. Check, without removing the cap, that the level is above the "MIN" mark of the fluid reservoirs. Always entrust brake fluid changing to a Volvo dealer. file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_03b.htm (3 of 14)12/22/2006 9:24:48 PM...
58 Lubrication Chassis maintenance To simplify maintenance of your Volvo, the vehicle has been equipped with ball joints, steering rods and propeller shafts that do not require regular lubrication. Points that normally require lubricating have been packed with very durable grease at the factory and then carefully sealed, eliminating the need for subsequent lubrication.
Page 64
1976 Volvo 262 264 265 2 Hood hinges 3 Sun-roof wind deflector 4 Door lock outer sliding surfaces Paraffin wax 5 Striker plate Paraffin wax 6 Trunk lid hinges 7 Door hinges (upper) Grease Door hinges + Door stops (lower)
Replacing bulbs for instrument lighting and heater control lighting Due to the location of the bulbs, their replacement should be carried out by a Volvo dealer. Replacing bulbs for side marker lights Remove the two Phillips screws which hold the lens.
Page 66
1976 Volvo 262 264 265 pg. 61 Replacing bulbs Replacing sealed beam headlamp units 1. Press the two plastic screws down and turn them 1/4 turn and remove them. 2. Lift up the rim slightly and remove it forwards. 3. Remove clip and rim. Lift out the headlamp unit.
Page 67
1 Front position, side marker 262, 264, 265 5/4 Ba 15 s 67 lights 2 Front turn signal 262, 264, 265 21/32 Ba 15 s 1073 3 Rear turn signal 262, 264 21/32 Ba 15 s 1073 4 Back up light...
Page 68
1976 Volvo 262 264 265 pg. 63 Replacing bulbs License plate light Insert a screwdriver through the opening in the housing and depress the catch tab. Pull out the housing assembly. Pull out the cover end which is not provided with a lock pin.
Page 69
The cover is removed by turning the small knob at the bottom a 1/4 turn. When replacing fuses, check that the right amperage is used. Never use fuses of higher amperage. If one fuse often melts, take the car to your Volvo dealer for fault- tracing.
65 Wheels and tires General Your Volvo is equipped with pressed steel wheels and radial tires as standard equipment. The wheel is centered on the hub by means of a centering shoulder and (5) conical wheel nuts. If the wheel is removed, care must be taken to properly center it on the hub before the nuts are tightened.
1976 Volvo 262 264 265 Check tire pressure Check tire inflation pressure at regular intervals to avoid abnormal wear. The spare tire should also be checked to ensure proper inflation when needed. Refer to page 85 for correct tire pressures.
Page 72
1976 Volvo 262 264 265 Removing The wheel cap can be removed with the tommy bar or the screwdriver provided in the tool kit. Loosen the wheel nuts 1/2-1 turn with the box wrench provided in the tool kit. All of the wheel nuts have right-hand threads which are loosened by turning them counterclockwise.
Page 73
1976 Volvo 262 264 265 Be sure the arm goes all the way into the attachment. Raise up the side of the car enough to lift the wheel off the ground. Unscrew the wheel nuts completely and remove the wheel carefully so as not to damage the threads of the studs.
1976 Volvo 262 264 265 pg. 68 Washing, cleaning Washing The car should be washed often as dirt, dust, insects and tar spots adhere firmly to the paintwork and may cause damage. When washing the car, do not expose it to direct sunlight. Use lukewarm water to soften the dirt before you wash with a sponge, and plenty of water, to avoid scratching.
Spots on textile mats can be removed with a mild detergent. Anti-rust treatment Your Volvo has been rust protected at the factory. On external surfaces a heavy coat of wear resistant material has been used, while on the internal surfaces a lighter rust protector is used.
Page 76
1976 Volvo 262 264 265 Minor stone chips and scratches Material: Rust remover Primer - brush on type Surface finish - brush on type (The paint pen head also contains grinding paste for subsequent treatment.) Penknife or similar Brush Note: When touching-up , the car should be well cleaned and dry and have a temperature above +15°C (60°F).
Page 77
1976 Volvo 262 264 265 4 When the primer surface is dry, the paint can be applied using a brush. Mix the paint thoroughly, apply several thin paint coats and let flush after each application. pg. 71 Paint touch-up 5 If there is a longer scratch, you may want to mask to protect surrounding paint.
Prior to a long distance trip Have your Volvo serviced according to the Volvo specified service intervals. Preventive maintenance will help to ensure a trouble free trip. Remember to take along a Volvo dealer directory. The main items to check are listed below: 1.
Page 79
This is particularly important during the winter because the windshield frequently becomes dirty and is often splashed with water which rapidly freezes and thus necessitates the frequent use of the windshield washer and wipers. Your Volvo dealer can supply you with suitable anti-freeze for this purpose. Anti-freeze for door locks Lubricate the outside locks with a suitable anti-freeze.
Page 80
The diagnoses outlined below are intended to serve as a guide to locate and temporarily correct minor faults. Causes of unsatisfactory performance should be investigated and corrected by your Volvo dealer. NOTE: The points indicated by an asterisk (*) should be checked by your Volvo dealer. Condition: Starter fails to operate (or operates very slowly)
Page 81
1976 Volvo 262 264 265 Possible cause Correction Check hose connections to cold start valve and Intake system leaking. auxiliary air valve. Check for fuel in the tank. No fuel reaching engine. Check fuses No 7. Remove one spark plug wire and unscrew the radio interference suppressor.
Page 82
1976 Volvo 262 264 265 Possible cause Correction Check wire terminals at: fuel pump, fuse No. 7, coil, Defective wires. distributor, ignition switch and relays and air flow sensor. Check hose connections to cold start valve and auxiliary air Intake system leaking.
Page 83
2 Vehicle Emission Control Information Your Volvo has been built to comply with all North American anti-pollution regulations and evidence of this can be seen from the certification label on the left wheel valance. For further information regarding these regulations, please consult your Volvo dealer.
Page 84
1976 Volvo 262 264 265 3 Model Plate Vehicle type designation, code number for paint code and upholstery: on wheel housing. 4 Loads and Tire Pressures 5 FMVSS specifications These two labels are located on the left front door opening.
Page 86
1976 Volvo 262 264 265 Height 33.0" (84 cm) Volume with rear seat up 53.0 cu. ft.(1.5 m3) Volume with rear seat down 67.0 cu. ft.(1.9 m3) Cargo opening, maximum width 45.7" (116 cm) Cargo opening, maximum 30.7" (78 cm)
Page 87
1976 Volvo 262 264 265 Number of cylinders Bore 3.42" (88 mm) Stroke 2.87" (73 mm) Displacement 2.66 liters Compression ratio 8.2:1 Valve clearance cold engine 0.0039-0.0059" (0.10-0.15 inlet 0.010-00.0120" (0.25-0.30 exhaust With catalytic converter: 121 hp With catalytic converter: 148 ft. lbs.
Page 88
1073 21 W/32 cp Ba 15s 2 Side Marker Lights 3 W/2 cp S 8.5 The following bulbs may be obtained from your nearest Volvo dealer. Rear Ash Tray Light 1.2 W W1.8d 1 License Plate Light S 8.5 Interior Light 10 W S 8.5...
Page 89
1976 Volvo 262 264 265 Shift positions, Auto Transmission 1.2 W 1.8d Engine Compartment Light 15 W S 8.5 Trunk Light 15 W S 8.5 Warning Lamps Charging 1.2 W 1.8d Turn Signals 1.2 W 1.8d Brake Failure 1.2 W 1.8d...
Page 90
1976 Volvo 262 264 265 Front wheel alignment The alignment specifications apply to an unloaded car but include fuel, coolant and spare wheel. Toe-in 0.17+/- 0.06" (4.5 +/- 1.5 mm) 0.12+/- 0.06" (3.0 +/- 1.5 mm) (models equipped with power steering).
Page 91
Vehicle stopping distance Tire reserve load The information concerning the 1976 Volvo 262, 264 and 265 shown in the following pages is presented in accordance with Federal requirements for comparison with other makes and models. The exacting test procedures established by the National Highway Traffic Safety Administration were followed to obtain the figures.
Page 92
Acceleration and Passing ability This chart indicates passing times and distances that can be met or exceeded by 1976 Volvo 262, 264 and 265 in the conditions described below.
Page 93
1976 Volvo 262 264 265 pg. 87 Consumer information High speed The high speed pass assumes an initial speed of 50 mph and a limiting speed of 80 mph. file:///K|/ownersdocs/1976/1976_262_264_265/76262264265_04.htm (9 of 12)12/22/2006 9:24:51 PM...
Page 94
88 Consumer information Vehicle Stopping Distance This chart indicates braking performance that can be met or exceeded by 1976 Volvo 262 and 264 without locking the wheels, under different conditions of loading and with partial failures of the braking system.
Page 95
89 Consumer information Vehicle Stopping Distance This chart indicates braking performance that can be met or exceeded by 1976 Volvo 265 without locking the wheels, under different conditions of loading and with partial failures of the braking system. This information represents results recorded by skilled drivers under controlled road and vehicle conditions, and the information may not be applicable to other conditions.
Page 96
1976 Volvo 262 264 265 Tire Reserve Load This chart lists the 1976 262, 264 and 265 tire designations recommended by Volvo with the recommended inflation pressure for maximum loading and the tire reserve load percentage for each of the tires listed. The tire reserve load percentage indicated is met or exceeded by each vehicle to which the chart applies.
Page 97
1976 Volvo 262 264 265 1 9 7 6 VOLVO 262 264 265 pg. Index Acceleration and passing ability Air Conditioning Alternator, important note Anti-freeze Anti-rust treatment Ash trays Automatic transmission, driving Automatic transmission, oil Battery Body and chassis Brake fluid...
1976 Volvo 262 264 265 Front seats Front wheel alignment Frozen locks Fuel Fuel gauge Fuel tank cap Fuses Gas filler cap Gasoline Gas station checks Gear shift positions Hand brake Hazard warning flasher Headlight flasher Headlights Headlights replacement Hood lock...
