Summary of Contents for Eclipse EC-P50

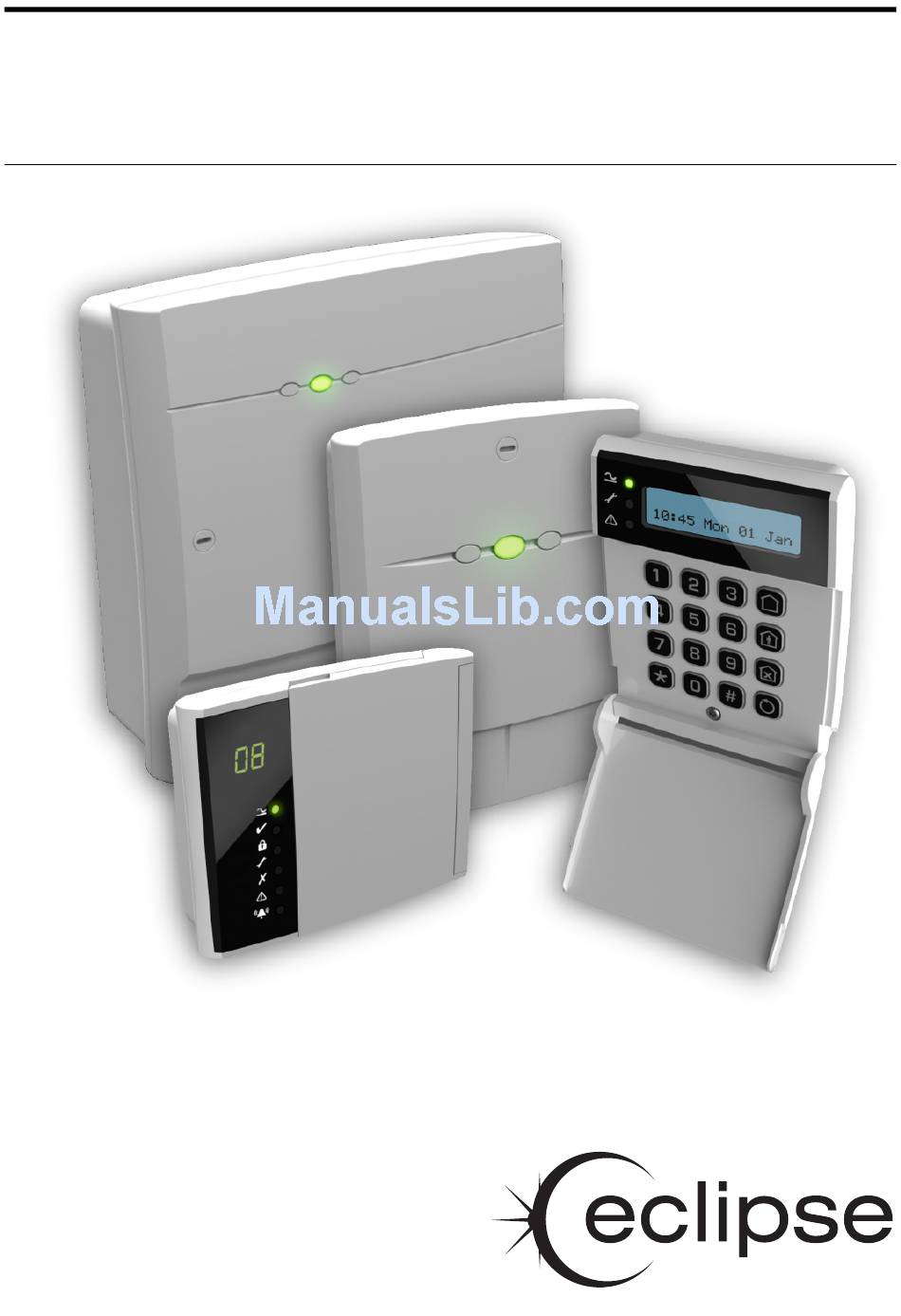

- Page 1 EC-P50 10-50 Zone Intruder Alarm System Installation Manual...
-
Page 2: Table Of Contents
Contents Zone Attributes ................ 20 1. System Overview ........... 4 Zone Areas ................21 System Configuration ............. 4 Zone Bypass Options .............. 21 Zone Chime................21 Control Panel ................5 Zone Soak Test ................ 21 Remote Keypads .............. - Page 3 ARC 1-4: IP Port Number ............37 4. Specifications ..........47 Options: Auto Test Call Period ..........37 Options: Auto Test Call Time ........... 37 EC-P50 Control Panel ............48 Options: Auto Test Days ............37 Electrical .................. 48 ...
-
Page 4: System Overview
1. System Overview System Configuration P0016-LI-03.01... -
Page 5: Control Panel
X-10 devices controlled via the system or smart phone app Remote Keypads PCB module clips into EC-P50 control panel housing The EC-P50 will accept up to a maximum of 6 remote keypads. All remote keypads require a 4-wire connection to the control panel EC-USB-Link using standard alarm cable. -
Page 6: Installation
Use mains cable of adequate carrying capacity for the 7. Program the System rated current (i.e. at least 0.75mm2). If available use the Eclipse UDL software package to program the system, if this is not available program this system in accordance with the procedures in Section 3. -
Page 7: Control Panel Layout
1. Main Printed Circuit Board (PCB) 5. Communication Module The main PCB that provides the terminals connection to remote An optional Eclipse Communication Module can be clipped into keypads and detection devices, see PCB Layout on next page for the housing under the main PCB. -
Page 8: Pcb Layout
PCB Layout 16 18 16 17 16 16 1. PSU Connector 10. External Sounder 12V The harness from the switched mode power supply module plug These terminals provide power for external sounder units. The onto this connector and provides the power (13.7V) to power the output is protected by an auto resetting fuse (PTC) rated at 1.1A. - Page 9 300mA: This is the recommended charge rate for a 7Ah standby battery. The system will fully recharge a flat battery within 24hours. 750mA: This is the recommended charge rate for a 17Ah standby battery. The system will fully recharge a flat battery within 24hours. 18.
-
Page 10: Connecting Devices To The Network
Connecting Devices to the Network Network Connections The network is made up of four terminals incorporating power and Before connecting devices to the control panel network, isolate data. To ensure correct operation, all four terminals on the device ALL power from the control panel (AC Mains & Battery). Do not must be connected to the corresponding terminals on the control continue if there is still power present on the control panel. -
Page 11: Remote Keypads
Remote Keypads Wiring Detection Devices The EC-P50 provides 10 zones for connecting detection devices PCB Layouts such as movement sensors and magnetic door contacts. Each zone is fully programmable to allow for maximum flexibility (see page 19 for Zone Programming details). The program options for a zone will also determine how the zone may be wired. -
Page 12: Single Eol - N/C
Connect the detector as shown below and ensure that the Loudspeaker Connections zone is programmed for “Double EOL” operation, see page 20. Zx Com The EC-P50 has a loudspeaker output capable of driving one 16Ω or two 8Ω wired in series as shown below: Ω 16 Loudspeaker... -
Page 13: External Sounder/Strobe Connections
External Sounder/Strobe Connections Panel Outputs 1 - 5 The following connections are available for connection to an The control panel has five programmable outputs, which can be external sounder/strobe unit: used to drive auxiliary devices such as LEDs, sounders or relays etc. -
Page 14: Telephone Line Connections
Sending voice messages to a mobile or landline telephone Installation is now complete and the system is ready for use. Please ensure the system users are provided with adequate Remote uploading/downloading via Eclipse UDL software training on operating the alarm system. package... -
Page 15: Programming The Control Panel
3. Programming the Control Panel Section Page Introduction 7 On-board Communicator This section covers the system programming and it is important ARC 1 - 4 Configuration that all engineers read this section carefully so as to familiarise Options themselves with the many features and functions of the control Fast Format panel. -
Page 16: Menu Navigation And Data Entry
LCD sub menu navigation Menu Navigation and Data Entry Enter Engineers code 1234 Each programming location is accessed by entering its four digit location number followed by . If you don’t know the exact location you can enter less than four digits and the panel will take you to the first location that starts with numbers you have entered. -
Page 17: Bit Toggle Selection
Press to accept Location number & current Ì and return to step options are displayed. Options 2 & 5 are enabled. Press to cancel Ê and return to step Use keys to toggle options on or off, e.g, press Press to accept 2 to turn option2 off. -
Page 18: Number Entry
Number Entry String Edit - Number Mode: LED Keypad This type of data entry is used for entering numeric values, such Enter Engineers code as timers. The figures below show the programming procedure for ???? both LED and LCD remote keypads: Number Entry: LED Keypad Enter Engineers code Enter location No... -
Page 19: String Edit - Text Mode
String Edit - Text Mode 1. Zone Programming This type of data entry is used for entering text such as user names and zone text. This mode is designed only for the LCD This section covers programming of the detection zones; each keypad. -
Page 20: Zone Wiring
activated during the disarmed state an internal alarm is Normally Open generated. Use this wiring type for normally open detection devices. 12 Exit Terminator Single EOL - N/C Use this zone type for external push to set buttons. This zone type Use this wiring type for normally closed detection devices. -
Page 21: Zone Areas
Zone Areas Zone Chime The EC-P50 has 5 areas which allow the system to be divided into Each zone can have an optional chime mode programmed that different areas of protection. Each area can be armed and allows the panel and remote keypads to generate an audible tone disarmed independently from each other. -
Page 22: Area Options
- Area 4 Stay Arm Mode. 2432 2. Area Options - Area 5 Stay Arm Mode. 2532 This section covers programming of the arming modes, timers Entry Mode: Bit Toggle Selection (see page 17). and options for each of the 5 areas. Final Exit Area Timers When the exit mode is started, the selected area will only arm... -
Page 23: Area Configuration Options 2
Bell on Arm Fail Entry Mode: Bit Toggle Selection (see page 17). On: If the selected area fails to arm, the external sounder and strobe is activated. Silent Arm Off: The external sounder and strobe are not activated. On: The exit tone remains silent during exit mode, when a keyswitch is used to arm the selected area. -
Page 24: System Configuration
09 Service Interval 3. System Configuration This timer controls the frequency (0-255 weeks) in which a “Service Required” event is generated. Default = 0 weeks. This section covers programming of the system timers, counters, hardware, control timers, banner text, voice options and links. 10 Confirmation Period This timer controls the duration (0-255 minutes) in which a System Timers... -
Page 25: Hardware - Volume Levels
Hardware - Volume Levels Battery Presence On: The standby battery is monitored for its presence. This set of options controls the volume levels for each group of system tones and voice messages. Off: The standby battery is not monitored. Mains AC Locations: - Panel Speaker Volume. -
Page 26: System Configuration 2
Control Timers This system has 15 programmable voice messages; each The EC-P50 has five programmable Control Timers, each timer message can be up to 16 seconds long. The messages can be has a switch on time (On Time), switch off time (Off Time) and recorded using the Eclipse UDL software and uploaded into the days of operation for both the On and Off times. -
Page 27: System Links
Repeat every 15 Minutes 4. Keypad Configuration On: The voice message repeats every 15 minutes until the associated “Link Control” is no longer active. This section covers programming of the remote keypads. Off: The voice message plays once. Keypad Options 1 Repeat every 30 Minutes This first set of options controls how the selected keypad onboard On: The voice message repeats every 30 minutes until the... -
Page 28: Keypad Sounds
Lockout Keypad Area 1 On: If the “Enable Code Tamper” option is enabled for the On: The keypad is assigned to area 1. selected keypad, the keypad operation will be locked out for Off: The keypad is not assigned to area 1. 5 minutes if a code tamper event is generated. -
Page 29: Expander Configuration
Trouble Tones 5. Expander Configuration On: The selected expander generates trouble tones. Off: The selected expander will not generate trouble tones. This section covers programming of the expander modules. Chime Tones Expander Areas On: The selected expander generates chime tones. Expanders must be assigned to one or more areas to ensure Off: The selected expander will not generate chime tones. -
Page 30: Expander Output Areas
Expander Output Areas 6. Panel Outputs and Devices This set of options allows the output areas to be assigned to each of the expander outputs. This section covers programming of the control panel outputs, communication ports and other devices that maybe connected to Locations: 5401 5410... -
Page 31: Panel Output Areas
Global system output function. after an alarm and within the “Abort Delay” period. Reserved 0012 Fire Alarm Not available on the EC-P50. This output type activates when a fire alarm is generated. Control Timer 0013 PA Alarm Control Timers 1 to 5. -
Page 32: Group 02: Control Timer
System Low Volts This output type activates when a low voltage fault is Group 02: Control Timer detected with the control panel standby battery. The EC-P50 has 5 control timers each timer can be assigned to 0035 In Exit an output: This output type activates when the system is in exit mode. -
Page 33: Group 10: Zone Count
To create a link controlled output you must assign link inputs to Link Control Example 3 the Link Control. The available inputs are: In this example we will setup “Link Control 03” so that it activates when zone 10 “AND” Control Timer 1 is on “OR” when the system Zone Links is in exit mode “OR”... -
Page 34: Group 40: Zone Tamper
This mode configures the selected communication port for 6001 Zone 01 Fault Communication Module operation. Use this mode when connecting any Eclipse communication module to the control This output type activates when zone 01 generates a fault and deactivates when the fault is cleared and reset. panel. -
Page 35: Ip Configuration
Listed below are the GPRS setting used by the major UK GSM IP Configuration network operators: These options allow the IP details to be configured and are required when using the EC-COM/IP module. Operator User Password Locations: - IP Address 6401 Vodafone internet... -
Page 36: On-Board Communicator
Switch to Next ARC on failed Attempt 7. On-board Communicator On: The on-board communicator switches to the next ARC in the sequence, if the current ARC attempt fails. This section covers programming of the on-board communicator. Off: The on-board communicator continues dialling the selected ARC until all its attempts have been used. -
Page 37: Arc 1-4: Cancel On Success
Test/Misc. Area 5 On: The selected ARC reports events that are assigned in the On: Events that occur in area 5 are reported to ARC. test/misc. group. Off: Events that occur in area 5 are not reported. Off: The selected ARC does not report test/misc. events. ARC 1-4: IP Address Restore This option allows an IP address to be programmed for each ARC. -
Page 38: Fast Format: Reporting Channels
Fast Format: Reporting Channels Off: For location 7202 channel 2 is disabled, for location 7242 channel 10 is disabled. When the ARC protocol is programmed as Fast Format, the channels that are used for reporting must be enabled or disabled. Restore Channel 3/11 On: For location 7202 channel 3 is enabled, for location 7242 Locations:... -
Page 39: Channel Type
UDL computer. The speech messages are recorded using the Eclipse UDL Off: Call-Back only occurs if the remote UDL computer requests software package or a touch-tone telephone. The touch-tone method is covered in the “EC-P50 User Manual”. -
Page 40: Udl Password
Location: 7402 Entry Mode: Number Mode (see page 18). Call-Back Number When using the call back feature of the Eclipse UDL software, the telephone number of remote UDL computer’s modem must be configured using this option. Location: 7403 Entry Mode: String Edit - Number Mode (see page 18). -
Page 41: System Users
“User Access” and “Door Access” output This section covers programming of the system users. is activated. The EC-P50 has a total of 51 users: User Locked By User 00 is the “Engineer” which has a default code of 1234. -
Page 42: Utilities
9. Utilities User Menus This section covers the programming of the system utilities. The engineer can access the user menus without exiting the engineer’s program mode by entering . The table below Time and Date shows the user menu options and the command number used to access them. -
Page 43: Program Mode
View Event Log Selecting this option allows the event log to be viewed. The following keys are used when navigating through the log: Go backward. Go forward. Press to exit this option. Print Event Log Selecting this option causes the contents of the event log to be sent to the printer. -
Page 44: Log Events
Log Events Description IA ?? Intruder alarm activated by zone ??. IR ?? Intruder zone ?? restore. PeA ?? Perimeter alarm activated by zone ??. Perimeter zone ?? restore. PeR ?? 24HrA ?? 24 hour alarm activated by zone ??. 24HrR ?? 24 hour zone ?? restore. - Page 45 Description ESC ?? Exit mode started by zone ??. Exit mode stopped. Exit mode failed by zone ??. EF ?? EN ?? Entry mode stared by zone ??. Entry timeout alarm. System armed. System disarmed. Stay armed #? (? = 1, 2 or 3). Arming failed.
- Page 46 Description RP ? A A panic alarm was generated at keypad ? by pressing keys 7 and 9. A fire alarm was generated at keypad ? by pressing keys 1 and 3. RF ? A A medical alarm was generated at keypad ? by pressing keys 4 and 6. RD ? A OPF ? The control panel has detected a fault on panel output ?.
-
Page 47: Led Indications
LED Indications The figure bellow shows the LED indicators for both the LED and LCD remote keypads: Icon Name Description Power Green Mains AC power is present. Ready Green The system is ready for arming. Armed Green The system is armed (Away or Stay). Fault Yellow The system has one or more faults. -
Page 48: Ec-P50 Control Panel
Environmental EC-P50 Control Panel Operating Temperature: -25°C to +55°C (-13°F to +131°F). Storage Temp.: -25°C to +60°C (-13°F to +140°F). Electrical Max. Humidity: 95% non-condensing. Supply Voltage: 230Va EMC: Residential, commercial and light Rated PSU Output: 1.5A. industrial. Ripple: <5%. -
Page 49: Physical
-25°C to +60°C (-13°F to +140°F). Max. Humidity: 95% non-condensing. As the EC-P50 is not a complete intruder alarm system, but only part of it, Zeta Alarm Systems by GLT Exports Ltd does not accept EMC: Residential, commercial and light responsibility or liability for any damages whatsoever based on industrial. -
Page 50: Notes
Notes P0016-LI-03.01... -
Page 51: Notes
Notes P0016-LI-03.01... - Page 52 Technical Support Email: support@zetaalarmsystems.com...
