- Page 1 USER GUIDE JERRY DOUGLAS SIGNATURE SERIES AURA ® IMAGING PEDAL...
-
Page 2: Quick Start
Quick start Power – Install a 9V alkaline or lithium battery (not included). Set the controls – Volume at minimum, select at #1 and blend at its mid-point. Plug in – Use standard ¼-inch shielded instrument cables. Place any other pedals after the Aura. - Page 3 ® A C O U S T I C I M A G I N G...
-
Page 4: About This Pedal
In order to fully realize the benefi ts of this pedal, we recommend using the Nashville Series resophonic pickup to amplify your resonator guitar. For the best sound reproduction, connect your Aura Imaging Pedal to an acoustic instrument amp, a PA system, a powered monitor or other full-range system. - Page 5 “In the world of resophonic guitar amplifi cation, we fi nally have resolution! The Fishman Nashville Series resophonic pickup is the result of new technology and innovative design. Use this pickup when playing with the Aura Imaging Pedal, select a microphone Image and turn it up. This new resonator pickup and Aura will make your microphone obsolete.”...
- Page 6 Images Image Microphone Type Distance Neumann U67 Large diaphragm tube condensor 12” Neumann U67 Large diaphragm tube condensor 18” RCA 77 Poly-directional ribbon 12” RCA 77 Poly-directional ribbon 12” (Instrument drop tuned to CAFCAF) Neumann M149 Large diaphragm tube condensor 18”...
- Page 7 Neumann KM84 Small diaphragm cardioid condensor 12” Shure KSM 32 Side-address cardioid condensor 9” Shure SM-57 Cardioid dynamic 12” Fishman Transducers, Inc. is not affi liated with any of the forementioned companies, their respective trademarks, registered trademarks, product models or copyrights.
-
Page 8: Using Effects
Using effects When using your Aura Imaging Pedal with other effects devices, place the Aura Imaging Pedal fi rst in the chain after your guitar. ® A C O U S T I C I M A G I N G... -
Page 9: Left Side Panel
Left side panel Output Use a standard ¼-inch instrument cable to connect the output to your amplifi er, mixer or effects devices. You can also connect this output to an unbalanced input on a recording system. 9vdc See Power section. -
Page 10: Right Side Panel
Right side panel Input Plug in your guitar here with a standard ¼-inch instrument cable. If you have a passive undersaddle pickup (no battery onboard), always plug into the Aura Imaging Pedal fi rst, even if you use a pedal tuner. T rim Raise or lower the trim to optimize the input level for your pickup. -
Page 11: Control Set
Control set Phase switch Use the phase switch to improve bass response at low volume or to control feedback at high volume. Play your guitar and toggle the phase switch back and forth until you achieve the desired result. Volume For the cleanest signal, set the volume as high as possible without clipping the next device in the signal chain. - Page 12 Select The 16 Images you can choose with the select knob are hand picked for your type of guitar. Try all 16 and pick the ones that compliment your playing style and sound good in the room. For example, dark/deep sounding Images may add impact to a solo performance.
- Page 13 Blend (continued) Suggestions • To fi nd a good mix of Image and pickup, turn the blend knob to about 8 o’clock, then step on the footswitch. Compare the Image/ pickup mix to the dry pickup signal. Slowly move blend clockwise and then switch between the two until you are happy with the Image/pickup blend.
- Page 14 Footswitch Step on the footswitch to bypass the Aura effect. When you stomp, you’ll hear the dramatic difference between the Image blend and the dry pickup. When the light above the footswitch is on, the Image is active. Note when the effect is bypassed, your guitar signal remains buffered.
- Page 15 Imaging Pedal powers up. To conserve the battery, remove the plug from the input when not in use. For AC power, use the Fishman 910-R ( for 110V ) or other suitable 9V adapter. The adapter must be fi ltered, regulated and rated for at least 200mA. It should also accept AC power appropriate for your country.
-
Page 16: Battery Replacement
Battery replacement The clip/batt indicator will light steadily when it is time to change the battery. Open the battery door underneath the pedal and install a fresh 9V alkaline or lithium battery. When the clip/batt LED comes on you have approximately one hour of remaining battery life. -
Page 17: Specifications

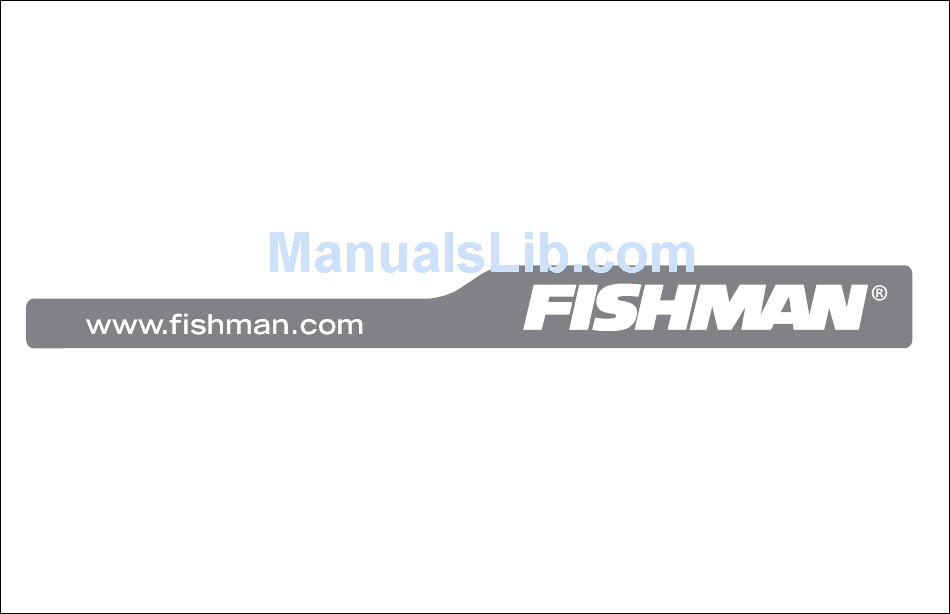

9V alkaline battery or 9VDC adapter Typical in-use current consumption: 18mA Typical 9V alkaline battery life: 27 hours Fishman 910-R ( for 110V ) 9V adapter: or suitable fi ltered and regulated, 200mA type, tip = negative Input impedance: 10M Ohm Nominal output impedance: 3.5k Ohm... - Page 18 www.fi shman.com 513-300-146 Rev B 7-08...
