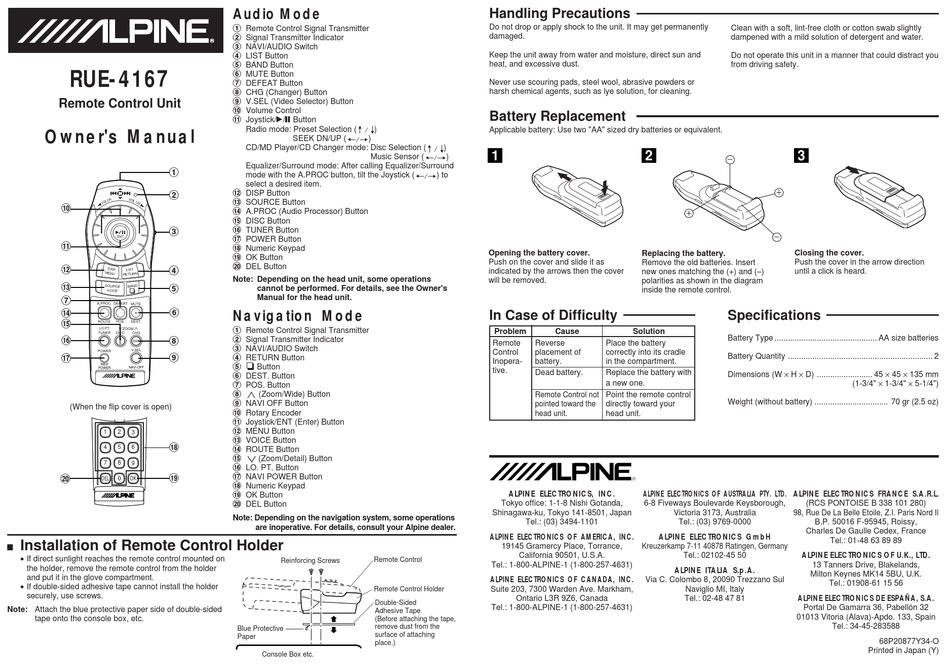

Alpine RUE-4167 Owner's Manual

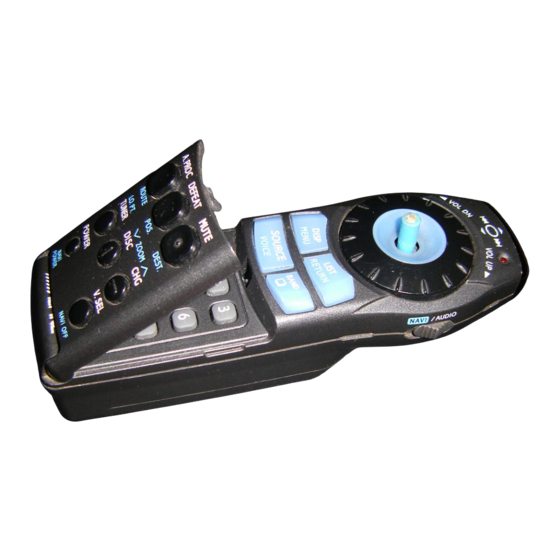

RUE-4167

Remote Control Unit

Owner's Manual
1
2
!
3
ENT
"
#
4
$
5
7
A.PROC DEFEAT MUTE
6
%
&
ROUTE
POS. DEST.
LO.PT.
ZOOM
TUNER DISC CHG
( 8
V.SEL
POWER
) 9
NAVI
NAVI OFF
POWER
(When the flip cover is open)
1 2 3
~
4 5 6
7 8
9
+
,
DEL 0 OK
Installation of Remote Control Holder
L
If direct sunlight reaches the remote control mounted on
the holder, remove the remote control from the holder
and put it in the glove compartment.
If double-sided adhesive tape cannot install the holder
securely, use screws.
Note: Attach the blue protective paper side of double-sided
tape onto the console box, etc.
Audio Mode
1 Remote Control Signal Transmitter
2 Signal Transmitter Indicator
R
3 NAVI/AUDIO Switch
4 LIST Button
5 BAND Button
6 MUTE Button
7 DEFEAT Button
8 CHG (Changer) Button
9 V.SEL (Video Selector) Button
! Volume Control
" Joystick/:/J Button
Radio mode: Preset Selection ( )
SEEK DN/UP ( )
CD/MD Player/CD Changer mode: Disc Selection (
Music Sensor (
Equalizer/Surround mode: After calling Equalizer/Surround
mode with the A.PROC button, tilt the Joystick (
select a desired item.
# DISP Button
$ SOURCE Button
% A.PROC (Audio Processor) Button
& DISC Button
( TUNER Button
) POWER Button
~ Numeric Keypad
+ OK Button
, DEL Button
Note: Depending on the head unit, some operations
cannot be performed. For details, see the Owner's
Manual for the head unit.
Navigation Mode
1 Remote Control Signal Transmitter
2 Signal Transmitter Indicator
3 NAVI/AUDIO Switch
4 RETURN Button
5
Button
6 DEST. Button
7 POS. Button
8
(Zoom/Wide) Button
9 NAVI OFF Button
! Rotary Encoder
" Joystick/ENT (Enter) Button
# MENU Button
$ VOICE Button
% ROUTE Button
&
(Zoom/Detail) Button
( LO. PT. Button
) NAVI POWER Button
~ Numeric Keypad
+ OK Button
, DEL Button
Note: Depending on the navigation system, some operations
are inoperative. For details, consult your Alpine dealer.
Remote Control
Reinforcing Screws
Remote Control Holder
Double-Sided
Adhesive Tape
(Before attaching the tape,
remove dust from the
Blue Protective
surface of attaching
Paper
place.)
Console Box etc.

Handling Precautions

Do not drop or apply shock to the unit. It may get permanently
damaged.
Keep the unit away from water and moisture, direct sun and
heat, and excessive dust.
Never use scouring pads, steel wool, abrasive powders or
harsh chemical agents, such as lye solution, for cleaning.

Battery Replacement

Applicable battery: Use two "AA" sized dry batteries or equivalent.
)
1
)
) to
Opening the battery cover.
Push on the cover and slide it as
indicated by the arrows then the cover
will be removed.

In Case of Difficulty

Problem Cause
Remote Reverse Place the battery
Control placement of correctly into its cradle
Inopera- battery. in the compartment.
tive.
Dead battery. Replace the battery with
a new one.
Remote Control not Point the remote control
pointed toward the directly toward your
head unit. head unit.
ALPINE ELECTRONICS, INC.
Tokyo office: 1-1-8 Nishi Gotanda,
Shinagawa-ku, Tokyo 141-8501, Japan
Tel.: (03) 3494-1101
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
Suite 203, 7300 Warden Ave. Markham,
Ontario L3R 9Z6, Canada
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
Clean with a soft, lint-free cloth or cotton swab slightly
dampened with a mild solution of detergent and water.
Do not operate this unit in a manner that could distract you
from driving safety.
2 3
Closing the cover.
Replacing the battery.
Remove the old batteries. Insert Push the cover in the arrow direction
new ones matching the (+) and (–) until a click is heard.
polarities as shown in the diagram
inside the remote control.

Specifications

Solution
Battery Type .............................................. AA size batteries
Battery Quantity ................................................................. 2
Dimensions (W H D) ......................... 45
Weight (without battery) ................................. 70 gr (2.5 oz)
R
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. ALPINE ELECTRONICS FRANCE S.A.R.L.
6-8 Fiveways Boulevarde Keysborough, (RCS PONTOISE B 338 101 280)
Victoria 3173, Australia 98, Rue De La Belle Etoile, Z.I. Paris Nord Il
Tel.: (03) 9769-0000
Charles De Gaulle Cedex, France
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7-11 40878 Ratingen, Germany
Tel.: 02102-45 50 ALPINE ELECTRONICS OF U.K., LTD.
ALPINE ITALIA S.p.A.
Milton Keynes MK14 5BU, U.K.
Via C. Colombo 8, 20090 Trezzano Sul
Naviglio MI, Italy
Tel.: 02-48 47 81 ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal De Gamarra 36, Pabellón 32
01013 Vitoria (Alava)-Apdo. 133, Spain
45 135 mm
(1-3/4" 1-3/4" 5-1/4")
B.P. 50016 F-95945, Roissy,
Tel.: 01-48 63 89 89
13 Tanners Drive, Blakelands,
Tel.: 01908-61 15 56
Tel.: 34-45-283588
68P20877Y34-O
Printed in Japan (Y)
