Summary of Contents for HP 4300

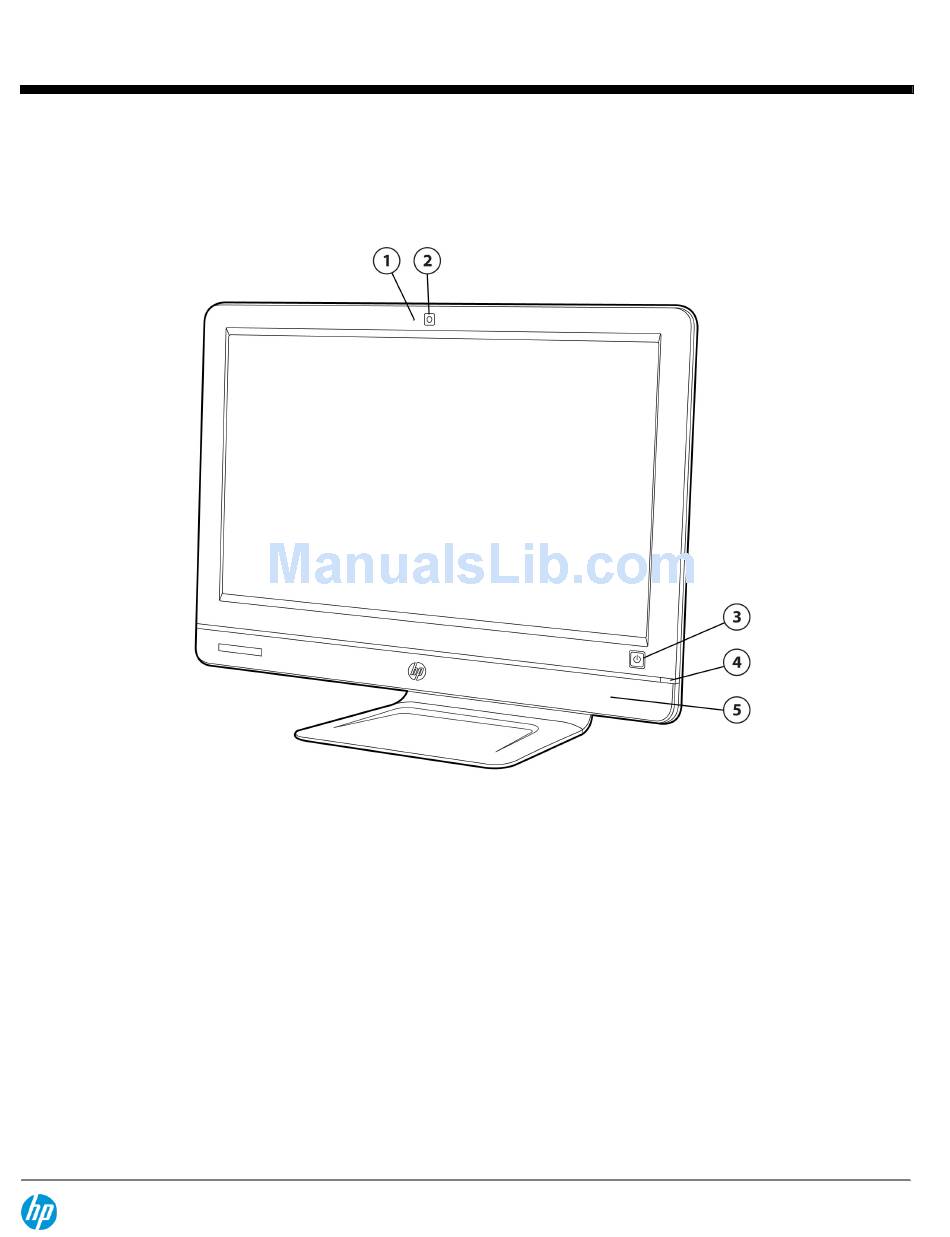

- Page 1 QuickSpecs HP Compaq Pro 4300 All-in-One PC Overview HP COMPAQ PRO 4300 ALL-IN-ONE PC FRONT Webcam Activity LED Webcam & Microphone (optional) Power Button Power Indicator LED Business Quality Speakers DA - 14287 North America — Version 24 — November 21, 2013...
- Page 2 QuickSpecs HP Compaq Pro 4300 All-in-One PC Overview HP COMPAQ PRO 4300 ALL-IN-ONE PC BACK HP SD Media Card Reader (2) USB 2.0 ports Microphone jack Headphone jack Serial Port (4) USB 2.0 ports Stereo audio line out RJ-45 Gigabit Ethernet port...
- Page 3 QuickSpecs HP Compaq Pro 4300 All-in-One PC Overview HP COMPAQ PRO 4300 ALL-IN-ONE PC SIDE Slim tray-load ODD (optional) Brightness increase button Brightness decrease button Hard drive activity LED DA - 14287 North America — Version 24 — November 21, 2013...
- Page 4 QuickSpecs HP Compaq Pro 4300 All-in-One PC Overview At A Glance Windows 7 or Windows 8 20-inch diagonal widescreen WLED backlit anti-glare LCD Integrated all-in-one form factor Intel® H61 Express chipset Intel 2nd & 3rd generation Core™ processors Integrated Intel HD Graphics...
-
Page 5: Operating System
QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) OPERATING SYSTEM Preinstalled Windows 8 Pro (64-bit)* Windows 8 (64-bit)* Windows® 7 Professional (32-bit or 64-bit)** Windows® 7 Home Premium (32-bit or 64-bit)** Windows®... - Page 6 QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) Intel® 3rd Generation Core™ i3 Processors Intel® Core™ i3-3240 Intel HD Graphics 2500 3.40 GHz base frequency, 3 MB cache, 2 cores, 4 threads Intel®...
- Page 7 QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) Intel® Celeron® G1620 2.7 GHz base frequency, 2 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1333 MT/s data rate Intel®...
- Page 8 (typical) Anti-glare Default color temperature Warm (6500K) NOTE: All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. Supported Display Modes & Resolutions 1600 x 900 1440 x 900 1366 x 768...
- Page 9 QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) STORAGE SATA Hard Drive 250 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV 500 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV 1 TB, 7200 rpm, SATA 6.0 Gb/s, SMART IV...
- Page 10 QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) MEMORY Type Non-ECC, DDR3 SDRAM, 1600 MHz, SODIMM (runs at 1333 MHz due to chipset) Maximum 16 GB # of Slots 204-pin supporting dual-channel memory Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
- Page 11 QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) KEYBOARDS AND POINTING DEVICES Keyboard HP USB Standard 104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad Cable length 51 in (130 cm) HP Wireless Keyboard &...
- Page 12 QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) POWER External 150W, 89% efficient, active PFC 100-240V AC HP Power Assistant software (optional) Provides real-time reporting of how system settings impact the energy consumed by the PC and the potential savings over time.
- Page 13 Service is limited, check with Absolute for availability outside the U.S. *** Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional...
-
Page 14: Weights And Dimensions
Industry standard certifications: FCC compliance Energy Star® EPEAT® Silver EUP Lot6 Tier2 SEPA TAA compliant For accessibility information on HP products, please visit: http://www.hp.com/accessibility. WEIGHTS & DIMENSIONS Weight With stand Dimensions With stand 15.36 lbs 20 x 8.66 x 16 in (W x D x H) 6.97 kg... - Page 15 QuickSpecs HP Compaq Pro 4300 All-in-One PC Standard Features and Configurable Components (availability may vary by country) TEMPERATURE, HUMIDITY, ALTITUDE Temperature Operating 41 to 95°F 5 - 35°C Non-operating -22 to 149°F -30° to 65°C Relative humidity Operating 15 - 80% at 26° C...
-
Page 16: Service And Support
Some countries/regions do not offer one year onsite and labor. For extended service for your HP product, visit HP Care Pack Central: hp.com/go/cpc. -
Page 17: Environmental Data
0.36 W Note: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. - Page 18 RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS DA - 14287 North America — Version 24 — November 21, 2013...
- Page 19 (as indicated by an exemption under the EU RoHS Directive). Material Usage This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification forthe Environment at hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html Asbestos...
- Page 20 Environmental Data hp.com/go/reuse-recycle or contact your nearest HP sales office. Products Recycling returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.
-
Page 21: Input Devices
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
