iHome iBN97 Instruction Manual

Nfc bluetooth wireless fm clock radio with usb charging
Hide thumbs Also See for iBN97:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
iBN97
NFC Bluetooth Wireless
FM Clock Radio
with USB Charging
instruction manual

Advertisement

Table of Contents
loading

Related Manuals for iHome iBN97

Summary of Contents for iHome iBN97

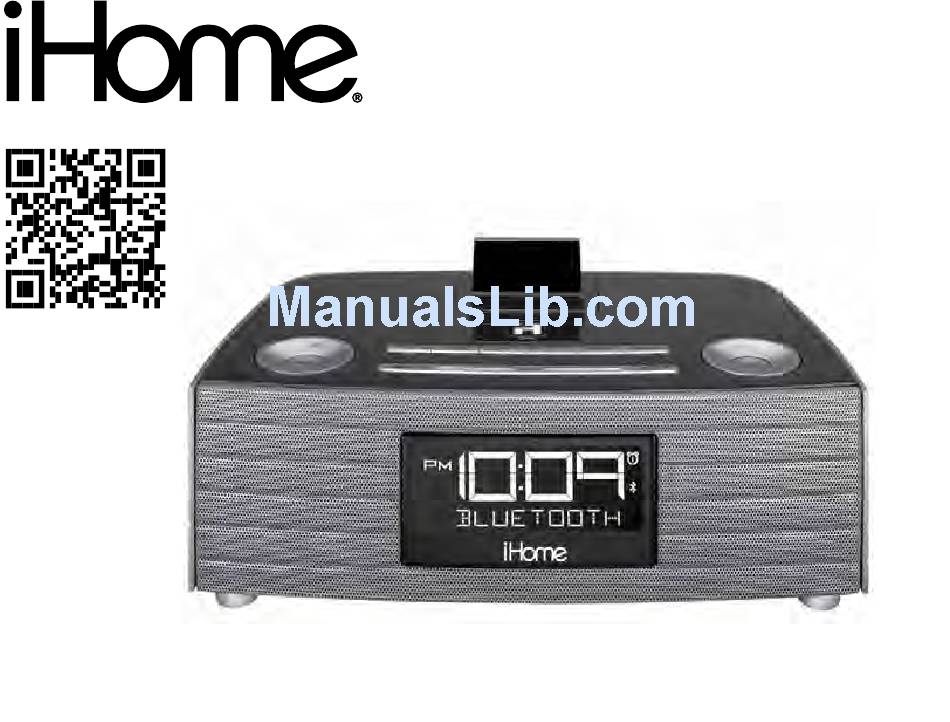

  • Page 1 NFC Bluetooth Wireless FM Clock Radio with USB Charging instruction manual...
  • Page 2 Bluetooth audio device. The dual alarms on this iHome clock radio can be set and used independently, so you can program each alarm to wake you up to a paired Bluetooth device, 4 separate alarm tones, the FM stereo radio, or a buzzer alarm.
  • Page 3 FCC Information FCC ID: EMOIBN97 IC: 986B-IBN97 FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 4: Table Of Contents

    Table of Contents Meet Your iBN97......................1-3 The Display/Setting Up the Unit ..................4 Setting the Clock/ FM Radio ....................5 Setting and Using FM Presets....................6 Setting and Using the Alarm .................... 7-8 Previewing and Turning Alarm Off/Setting Gentle Wake Timer ..........8 Snooze/Dimmer Button/Sleep and Nap Modes ..............9...

  • Page 5: Components View

    Included • iBN97 system • 100V-240V universal AC adaptor • 3.5mm audio cable • Backrest audio cable backrest power adaptor iBN97 A removable backrest is included with the unit for best stability when resting a device on top of the unit in either portrait or landscape orientation.

  • Page 6: Controls & Functions

    Meet Your iBN97 Backrest/Landscape insert Talk/End Buttons Alarm 1 & Alarm 2 Buttons Power Button Nap/Clock Set Button NFC Antenna EQ/Pairing Button Plus/Minus Settings Buttons Volume Up Button Mode Button Play/Pause and Presets Button Volume Down Button Wakeup/Alarm Skip...
  • Page 7 Meet Your iBN97 Back USB Charging Port DC Jack Aux-in Jack 2.5A charging FM Antenna Bottom Backup Battery Compartment Remove the pull tab before initial use to activate the SureAlarm battery backup system.

  • Page 8: The Display/Setting Up The Unit

    Using the The Display Time Display Alarm Active Indicator PM/AM Indicators Bluetooth Indicator Low Backup Battery Indicator Date, Alarm time, Mode Indicator: Radio, Bluetooth, Aux-in Setting Up the Unit Connect the included AC adaptor to the DC jack RESET...

  • Page 9: Setting The Clock/ Fm Radio

    Using the Setting the Clock 1. Press and hold the Nap/Clock Set Button for 2 seconds until the clock display flashes and unit beeps. 2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting).

  • Page 10: Setting And Using Fm Presets

    Using the FM Radio (cont’d) Buttons to adjust the volume on the unit. To adjust the tone, press and release the EQ 3. Press the Button as needed to cycle to Treble, Bass or Balance, then press the – or + Buttons to adjust for best sound.

  • Page 11: Setting And Using The Alarm

    Using the Setting and Using the Alarms This unit has 2 separate alarms, each set the same way. Below we explain how to set alarm 1. To set alarm 2, follow the same steps using the Alarm 2 Button.
  • Page 12 Using the Setting and Using the Alarms (cont’d) 8. Press the – or + Buttons to adjust the alarm volume on the unit. Note that the alarm volume setting is stored separately from other volume settings. 9. Press the Alarm 1 Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm alarm setting is complete.
  • Page 13 Using the Snooze/Dimmer Button 1. To program Snooze, press and hold the Snooze/Dimmer Button during normal operation (when no alarm is sounding). 2. Press the – or + Buttons to select the desired snooze time (between 1 and 29 minutes).

  • Page 14: Using Bluetooth: Pairing & Playing Your Device Using Nfc

    “iHome iBN97” should appear on your device’s menu. Once paired with a device, the Bluetooth indicator on the iBN97 display will stop flashing then the Bluetooth icon will remain. 4. Use the controls on your device to play or pause audio and navigate tracks.

  • Page 15: Pairing Your Device Using Standard Bluetooth

    If “Not Paired”, “Not Connected” or similar message appears on your device, select “iHome iBN97” on the device to connect it. If your device asks for a password, enter 1234 on the keyboard of your device. If no device is paired within 1 minute, a tone will sound and the unit will revert to its previous mode.

  • Page 16: Playing Audio Via Bluetooth/Using The Speakerphone

    Using the Playing Audio Via Bluetooth 1. Press and release the Mode Button as needed until the Bluetooth indicator icon appears on the display. Play Pause Button on the unit to play audio from your linked Bluetooth device. 2. Press the 3.

  • Page 17: Playing Audio Via Aux-In/Charging Devices Via Usb Port

    Using the Playing Audio via Aux-In 1. Connect one end of the included standard stereo 3.5mm audio cable into the aux-in jack on the back of the unit and the other end into the headphone or output jack of your audio device 2.

  • Page 18: Using Fm Radio In Other Countries

    Using the Using FM Radio in Other Countries Different areas of the world use different FM frequency steps and ranges. By default, this unit is set to USA frequency steps. To use the radio outside the USA: 1. Make sure unit is OFF. Press and hold the Mode Button for 5 seconds until “USA” appears in the display.

  • Page 19: Replacing And Installing Clock Backup Battery

    Using the Replacing and Installing Clock Backup Battery Note: The CR2450 lithium battery is included in the unit. Please pull out the battery pull tab before you use the unit. This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in the event of a temporary power interruption.

  • Page 20: Troubleshooting

    Unit doesn’t respond (no power) • Check that all connections are correct and properly plugged in. • Make sure your device is properly paired with the iBN97. • Make sure the Power is ON. Unit doesn’t respond (locked up or frozen) The unit may need to be reset.

  • Page 21: Consumer Product Safety Guide

    Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference.
  • Page 22 8. Attachments – Do not use attachments not recommended by the product manufacturer. 9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time.

  • Page 23: Warranty

    Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
