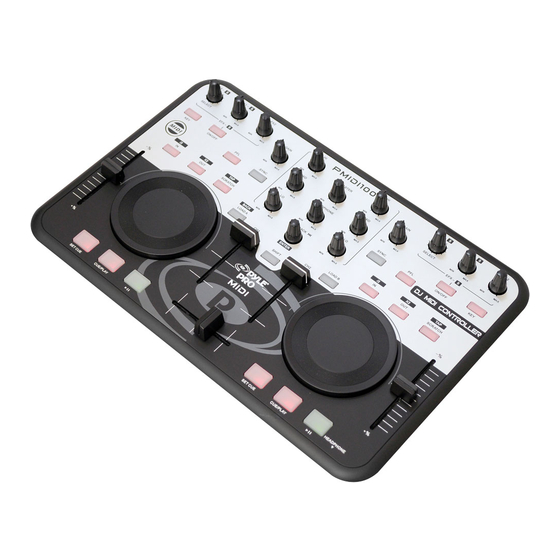

Digital Midi Controller
PMIDI100
INSTRUCTION MANUAL
Connection ................................................... 2
Install Virtual DJ Program ............................... 3
Soundcard Setup ............................................ 6
Description of the Functions ............... 8
Connection
Advertisement
Related Manuals for Pyle PMIDI100
Summary of Contents for Pyle PMIDI100
- Page 1 Digital Midi Controller PMIDI100 INSTRUCTION MANUAL Index Connection ........... 2 Install Virtual DJ Program ....... 3 Soundcard Setup ..........6 Description of the Functions ....8 Connection...
- Page 2 Install Virtual DJ Program (CD Included) Please click the icon of install_virtualdj_le_v6.0.7. Follow the steps below to continue installation.
- Page 3 1. Select Language 2. Welcome Screen - Press Next 3. End User License Agreement – Read And Press Next...
- Page 4 4. Application Path – Choose and Press Next 5. Start Installation - Press Next 6. Finish Installation - Press Finish...
- Page 5 7. Click VDJ Icon on Desktop And Enter Serial Number – Start Virtual DJ LE Soundcard Setup...
- Page 6 1. Click CONFIG at The Upper Right of The SKIN 2. Choose Output And Soundcard Soundcard: 2 CARDS You will notice that the drop down to the right of the output has changed to show – Master: Chan1&2/Headphones: Chan3&4 The drop down of Soundcard has to be selected ME100. The drop down to the right of ME100 has to be selected the respective soundcard of your PC.
- Page 7 *After setting your soundcard, load a song to test if music has the output from your PC.
-
Page 8: Description Of The Functions
DESCRIPTION OF THE FUNCTIONS 1. Master Control the output volume of Speakers. It’s the line out from your PC. 2. Headphone: Control the volume of your headphone. 3. Track Select the track you would like to play. Press to confirm the selection of folder and track. - Page 9 4. Gain and EQ Gain: Adjust the input signal level. Hi: Adjust the input tremble response. Mid: Adjust the input midrange response. Low: Adjust the input bass response. 5. Load A, B/Back(Holding PAGE First) Load A, B: Load the track to respective channel. Back: It’s for going back to the previous browser tree and then selecting other folders.
-
Page 10: Headphone Output
12. Scratch/TAP(Holding PAGE First) Scratch: To switch on/off this function. Tap: Press with the beat to get a manual BPM value. 13. PFL Press it to monitor a specific channel. 14. SYNC Press it to immediately synchronize with the BPM of the other channel. 15. -
Page 11: Audio Specification
Audio Specification Sampling Frequency 44.1 KHz, Audio Resolution : 16 bit Output level: 1.2V+-0.2V THD+N: < 0.03% S/N: > 80dB Crosstalk: > 80dB The Video DJ section can’t match the operation with this controller. If you would like to know more about it, please refer to the user’s guide.
