PDCD204
User Manual
www.pyleaudio.com

1. Intended use

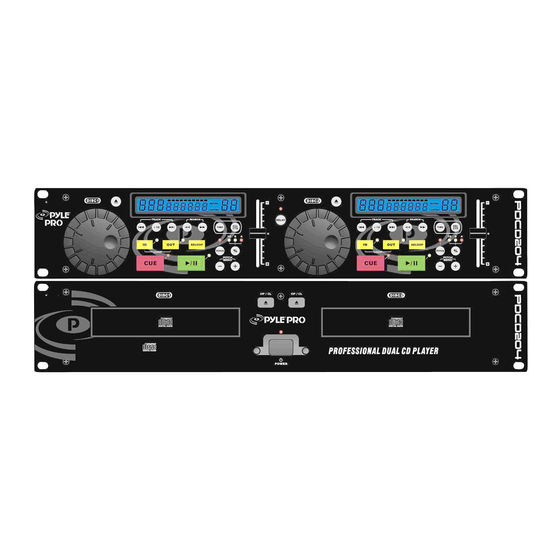

The Pyle Pro PDCD204"is a semi-professional CD player. It used to play standard audio CDs. This
appliance is intended for operation at home and in semi-professional environments.
The low-level audio output signal must be transmitted to an external amplifier (which might be used
together with a mixer or pre-amplifier) for amplification. The appliance should not be connected directly to
loud-speakers.
The CD player consists of a control unit and a dual disc drive. Both units may only be operated together.
Any other use than that described above can result in damage to the product, involving such hazards as
short-circuits, fire and electrocution. No part of the product may be modified or retrofitted and the housing
may not be opened!
The safety instructions must be observed at all times.
2. Equipment features
Dual-CD-disc drive
Remote control unit
8×over-sampling,1 bit D/A converter
Jog shuttle wheel
Separate track skip and search buttons
AUTOCUE function
Installation possible in a 19" rack system
Pitch speed control of +/-4%,+/-8%,+/-16%
LOOP function(playback loop)
RELAY function(automatic switchover between the two CD drives)
Frame-precise search(frame=smallest possible scanning unit of the CD player)
Analogue audio output
3. Scope of delivery
Control unit
Drive unit
2×stereo cinch cables
1×system connection cable
Power cable
Operating instructions
1
2

Advertisement

Table of Contents
loading

Related Manuals for Pyle PDCD204

Summary of Contents for Pyle PDCD204

  • Page 1: Intended Use

    1. Intended use The Pyle Pro PDCD204”is a semi-professional CD player. It used to play standard audio CDs. This appliance is intended for operation at home and in semi-professional environments. The low-level audio output signal must be transmitted to an external amplifier (which might be used together with a mixer or pre-amplifier) for amplification.

  • Page 2: Table Of Contents

    4. Table of contents 6. Safety instructions and danger warnings Introduction............................1 Any guarantee claims are rendered invalid if damage occurs due to non-observance of these Intended use…………………………………………………………………………………………………..2 operating instructions. We assume no liability for any consequent damage. Equipment features..........................2 We assume no liability for personal injury or damage to property caused by incorrect handling or Scope of delivery..........................2 nonobservance o the safety instructions.

  • Page 3: Connection Elements And Controls

    Do not leave the appliance unattended while operating it. 7. Connection elements and controls Never place the appliance on an unstable or movable surface. Persons could be injured or the  The buttons and operational controls of CD player 1 (DISC 1) and CD player 2 (DISC 2) are operated in appliance damaged by it falling down.
  • Page 4 function can be found under “Playback loop (LOOP function)”. RELAY function is activated. A detailed description of the RELAY function can be found under “Relay operation”. (5) OPEN/CLOSE button You can open and close the respective CD compartment with this button. (13) PITCH button This button is used to activate the “PITCH slide control”...
  • Page 5 Drive unit LC display (20) CD compartment 2 This is the compartment (disc 2 drive) in which the CD is placed. (21) OPEN/CLOSE button for CD compartment 2 You can open and close the CD compartment of the DISC 2 drive with this button. The CD compartment cannot be opened with the CD player in playback mode.

  • Page 6: A) Connecting The Control Unit And Drive Unit

    Make sure the connection cable is not being squeezed or damaged by sharp edges. Always Only appliances with analogue audio cinch inputs (LINE level) may be connected to the outputs to avoid lay the cables in such a way that no-one can stumble over them or become entangled in any distortion or mismatching which could damage the appliance.

  • Page 7: C) Playback

    The shuttle wheel (1) is used to quickly find a specific point within a track. The search speed depends on Only insert CDs, and only one CD at a time in each CD tray. Never interfere with the motor driven how far the wheel is turned clockwise or anti-clockwise.

  • Page 8: H) Synchronization Of The Cd Speed

    briefly. The CUE mark was set where the playback was started. 1. Insert a CD in both CD compartments. 3. If you now press the CUE button, the CD player return to the CUE mark and switches to pause mode. 2.

  • Page 9: Troubleshooting

    12. Troubleshooting 13. Useful notes on handing CDs By purchasing the “Pyle Pro PDCD204 dual CD player”, you have acquired a safe, state-of –the art product. Hold CDs only by the edges. In this way you can prevent  Problems and malfunctions can occur nevertheless. We would therefore like to show you how to eliminate fingerprints and dirt on the surface.
