Input Channel Preamp, Dynamics & Eq Panel; Main Display - Behringer DIGITAL MIXER X32 COMPACT Manual

40-Bit floating-point DSP features
"unlimited" dynamic range with no
internal overload and near-zero
overall latency (0.8 msec)
Powerful scene management
for convenient handling of
complex productions
48-channel Digital Snake ready**
via dual AES50 ports, featuring
KLARK TEKNIK's SuperMAC
networking capability for ultra-low
jitter and latency
USB type-A connector providing file
storage and uncompressed stereo
recordings plus show presets and
system updates
Dedicated and easy-to-use channel
strip section with direct access
controls and graphic user interface
for intuitive workflow
Additional user-definable control
section allows to set up short-cuts to
your favorite views or parameters
ULTRANET connectivity
for BEHRINGER's P-16 Personal
Monitoring System** plus AES/EBU
stereo digital output and MIDI
Networked remote control for show
setups with on-screen software editor
via Ethernet
Built-in expansion port for audio
interface cards or digital
networking bridges
Future firmware updates, incl. new FX
"Plug Ins", downloadable from
behringer.com free of charge
Conceived and designed by
BEHRINGER Germany
*FireWire, iPad, and iPhone are trademarks of Apple Inc., registered in the
U.S. and other countries. The AES50 trademark is a property of the Audio
Engineering Society, NY. All trademarks, including, but not limited to HUI,
Mackie, Lexicon, PCM, EMT, Quantec and QRS are trademarks or registered
trademarks of their respective owners. Their use neither constitutes a
claim of the trademark nor affiliation of the trademark owners with
MUSIC Group. Product names are mentioned solely as a reference for
X32 COMPACT compatibility and effects.
**P16 Personal Monitoring System and Digital Snake are not included.

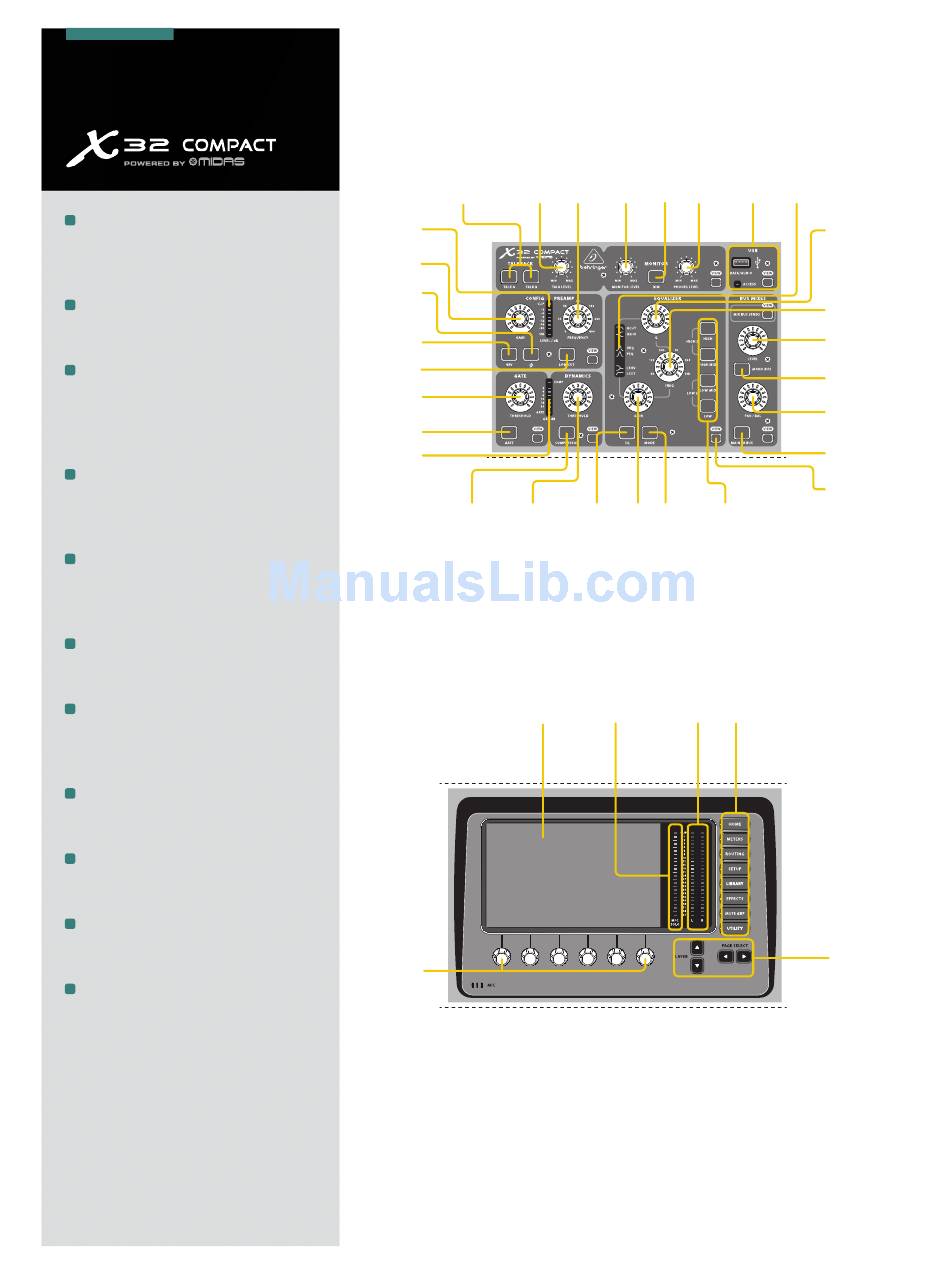

Input Channel Preamp, Dynamics & EQ Panel
Talkback Talkback
mic A and B Level
controls control
Input
Level
meter
Input Gain
adjust
Phase Invert
On/Off
+48 V Phantom
Power On/Off
Low Cut filter
On/Off
Gate threshold
adjust
Gate On/Off
Dynamics
LED meter
Compressor
Dynamics
On/Off threshold
adjust

Main Display

Color display
TFT display
rotary encoders
(include button
push capability)
Dim
button
lowers
control
room /
phones
Low Cut outputs
filter Monitor to user Phones USB recorder
frequency Level defined Level socket with
adjust control levels control Access LED
Equalizer
Equalizer Equalizer Equalizer
On/Off Gain adjust Mode Band select
button buttons
TFT display
Mono Bus/Solo LR Bus selection
level meter level meter buttons
Page 2 of 6
Equalizer
mode
indicator
Equalizer
Q adjust
Equalizer Frequency
adjust
Main Bus Level
control
Mono Bus
On/Off
Stereo Bus Balance
(pan) control
Stereo Bus
On/Off
View button per section
shows parameters on
main display
TFT display
navigation
controls
