Summary of Contents for Element ELEFT195

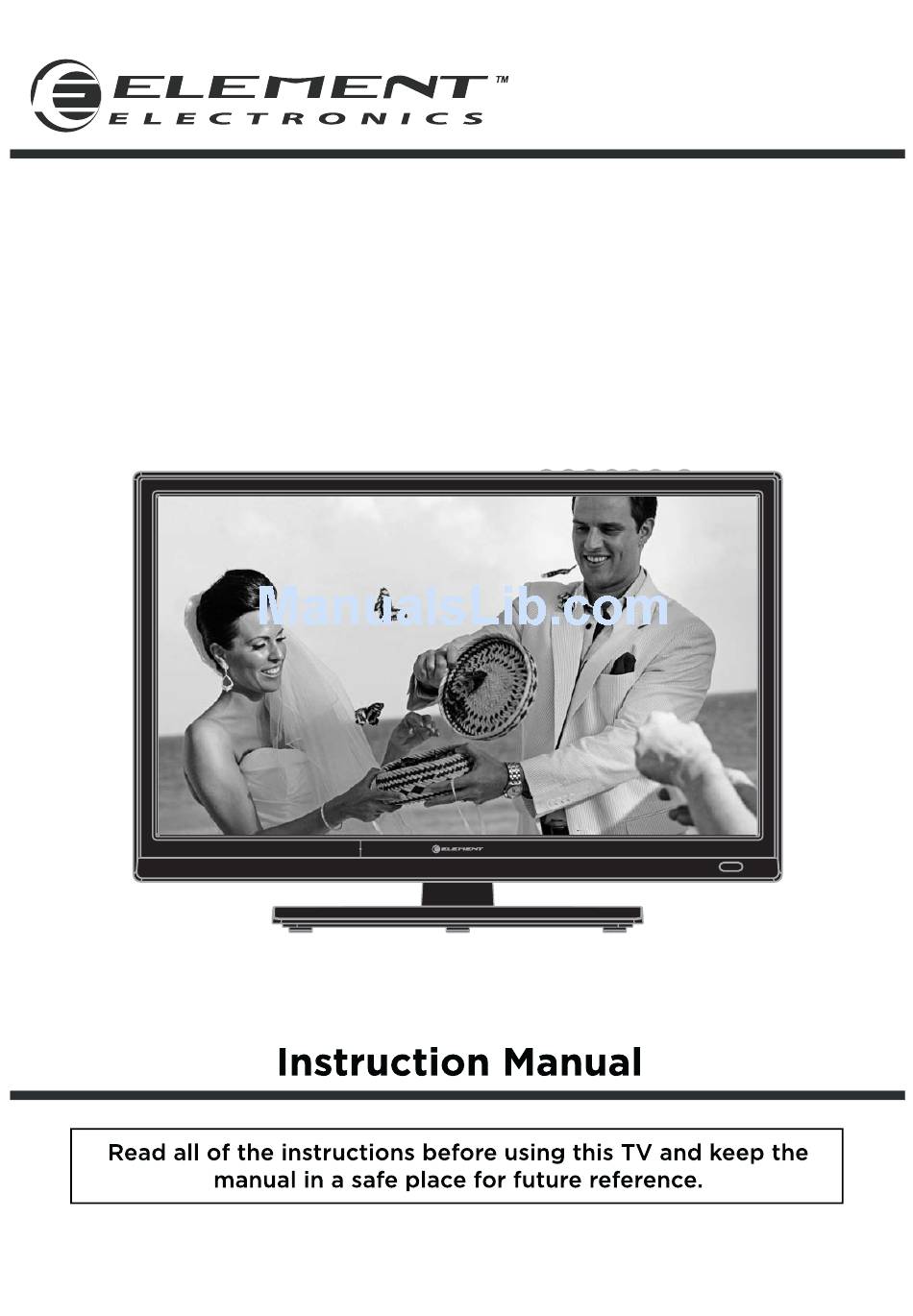

- Page 1 ELEFT195 19 HD Digital LED TV "...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION PREFACE SAFETY PRECAUTIONS IN THE CARTON FRONT/BACK CONNECTIONS OF TV Power Cord Connection Antenna Connection AV Connection TV INSTALLATION YPbPr omponent Connection DRAWINGS VGA PC Connection COAXIAL Connection HDMI Connection USB Function Remote control instructions REMOTE CONTROL Remote control setup Basic Operations... -
Page 4: Important Information
IMPORTANT INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is interded to aler the user to the presence of important operating and maintenance (servicing) instruction the literature accompanying the appliance. -
Page 5: Important Safety Instructions
IMPORTANT INFORMATION Important Safety Instructions Note: 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 6: Preface
PREFACE ENERGY STAR Qualification. This ELEMENT product has earned the ENERGY STAR for meeting U.S. Federal energy efficiency guidelines as set by the Department of Energy and Environmental protection agency. The ENERGY STAR program exists to provide energy saving guidelines and help promote energy efficient products and practices. - Page 7 SAFETY PRECAUTIONS Power cord and cables must be properly placed and protected to prevent people from stepping on them and causing the TV to fall. Keep the TV dry and away from humidity. Keep the TV away from heat sources . Unplug the before cleaning it.
-
Page 8: In The Carton
IN THE CARTON 4. IN THE CARTON LED TV SET Remote Control 1.5V Warranty Card AAA Batteries ELEFT195 18 5 HD Digital LED TV . " USER ' S MANUAL Quick Start Guide Remote Control Guide Products Technical Assistance... -
Page 9: Front Back Connections Of Tv
FRONT BACK CONNECTIONS OF TV 5. FRONT BACK CONNECTIONS OF TV Front View 1. Press VOL+ or VOL- to increase or decrease “ ” “ ” the volume. 2. Press CH “ ” or CH “ ” to scan through channels. 3. -
Page 10: Connections
TV INSTALL TION DRAWINGS TV INSTALL TION DRAWINGS Power Cord Connection - Connect the power cord correctly as shown. - Press the Power button of your L D V to turn on the L D TV. The power indicator on the front panel lights up in blue. -
Page 11: Av Connection
TV INSTALL TION DRAWINGS AV Connection Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using the RCA cable. Match the jack colors: Video is green, Audio left is white, and Audio right is red. Select the AV input source using the SOURCE button on the remote control. -
Page 12: Coaxial Connection
TV INSTALL TION DRAWINGS VGA PC Connection Connect the RGB output of the PC to the VGA PC jack on the set Connect the AUDIO output of PC to the AUDIO jack on the set Select the VGA input source using the SOURCE button on the remote control PC AUDIO 500mA... -
Page 13: Hdmi Connection
TV INSTALL TION DRAWINGS HDMI Connection HDMI plug which replaces the HDMI connection allows transfer of all audio video/control signals through one cable only. These signals are transferred in digital. PC AUDIO 500mA TV Back HDMI Cable DVD Back USB Function Insert the USB flash drive to the USB port select USB input source via the SOURCE button on... -
Page 14: Remote Control
REMOTE CONTROL 7 REMOTE CONTROL Remote Control Instructions Note The picture of remote controller is only for reference and is subject to the real one. - Page 15 REMOTE CONTROL : Turn the LED TV ON or OFF. Press to mute the sound. Press again or press V + to un-mute the TV. NUMBER BUTTONS: Press 0-9 to directly change the TV channel. : Press this button to enter a program number for multiple program channel such as 2-1,etc. : Return to the previous channel viewed.
-
Page 16: Remote Control Setup
REMOTE CONTROL Remote Control Setup 1. Open the cover. 2. Use two AA size batteries When inserting the batteries, make sure correct polarities + and - “ ” “ ” marks on the batteries line up correctly with compartment markings 3. -
Page 17: Menu Operation
MENU OPERATION 8 MENU OPERATION Basic Operations Press button to select your desired mode then press to enter. Choose your Picture Mode Home Mode Energy Saving Standard Mode Exit Are you sure you want Home mode? In this mode ENERGY STAR saving are realized. Return Return Select Your Onscreen Language Preference... - Page 18 MENU OPERATION Navigating the Onscreen Display Press the MENU button to display the main menu. buttons to navigate and select the available menus. MENU MENU Air/Cable MENU MENU Display Mode Standard Mode MENU Choosing a TV Channel Press the CH /CH at the side of the panel or CH /CH on the remote control to scan through...
-
Page 19: Picture Menu Options
MENU OPERATION Picture Menu Options Press the MENU at the side of the panel or on the remote control and then use to move the PICTURE menu, press or OK to enter (see picture below). NOTE: Adjust the parameters of the picture, the Picture Mode is automatically converted to User Mode. -
Page 20: Time Menu Options
MENU OPERATION Auto Volume Press to switch auto volume control On or Off This function allows volume to be controlled automatically SPDIF Type Press to select between PCM or RAW. Audio Language Press to select audio languages among English French Spanish Time Menu Options Press the MENU at the side of the panel or on the remote control and then use to move the... -
Page 21: Lock Menu Options
MENU OPERATION H POS Press and then use to adjust the H POS of the picture V POS Press and then use to adjust the V POS of the picture Clock Press and then use to adjust the Clock of the picture. Phase MENU Press... - Page 22 MENU OPERATION Change Password button to select the “Change Password” item, then press button to enter into the following menu. Input the new 4-digital password and input it again to confirm. System Lock Allows you to turn on or off the system lock. If you turn off the system lock, then the following items(US, Canada, RRT MENU Setting and Reset RRT) will unable to use.
-
Page 23: Channel Menu Options
MENU OPERATION Information Motion Picture Association of America (MPAA) Rating System TV Parental Guideline Rating System Canadian Rating: Canadian English is used throughout all English-speaking Canada (C, C8+, G, PG, 14+, 18+). Canadian French is used in Quebec (G, 8 ans+, 13 ans+, 16 ans+, 18 ans+) Note: The V-Chip will automatically block certain categories that are “more restrictive”. - Page 24 MENU OPERATION Auto Scan button to highlight Auto Scan”, then “ press button to enter into the following menu. If you select “Air”as input signal in Antenna item, you can press button to search the channels automatically. The receivable channels will be stored automatically. When MENU searching channels, press MENU to stop.
-
Page 25: Media Menu
MEDIA OPERATION 9 MEDIA MENU Note Before operating USB menu plug in USB device then press SOURCE button to set the Input Source to USB Photo Menu Press button to select Photo in the main menu. Press button to select drive disk you want to watch then press button to enter Photo Music... -
Page 26: Troubleshooting
TROUBLESHOOTING 10. TROUBLESHOOTING Please check if you can solve problems by tr ubleshooting yoursel Troubleshooting Control No signal Please check that all cables are correctly plugged in. Adjust the contrast, the color and the brightness. No color shades May be the result from a lighting signal from car, motor, neon light Stain on the and other electrical devices or appliances. -
Page 27: Specifications
SPECIFICATIONS 12. SPECIFICATIONS This manual is only for your reference, any change to the design and specification will not be advised. Screen Size 18 5 Inch Display Type TFT LED Resolution(Pixel) 1366 X 768 Aspect Ratio 16:9 Input Power AC 100 240V 60Hz Power Consumption TV System...
