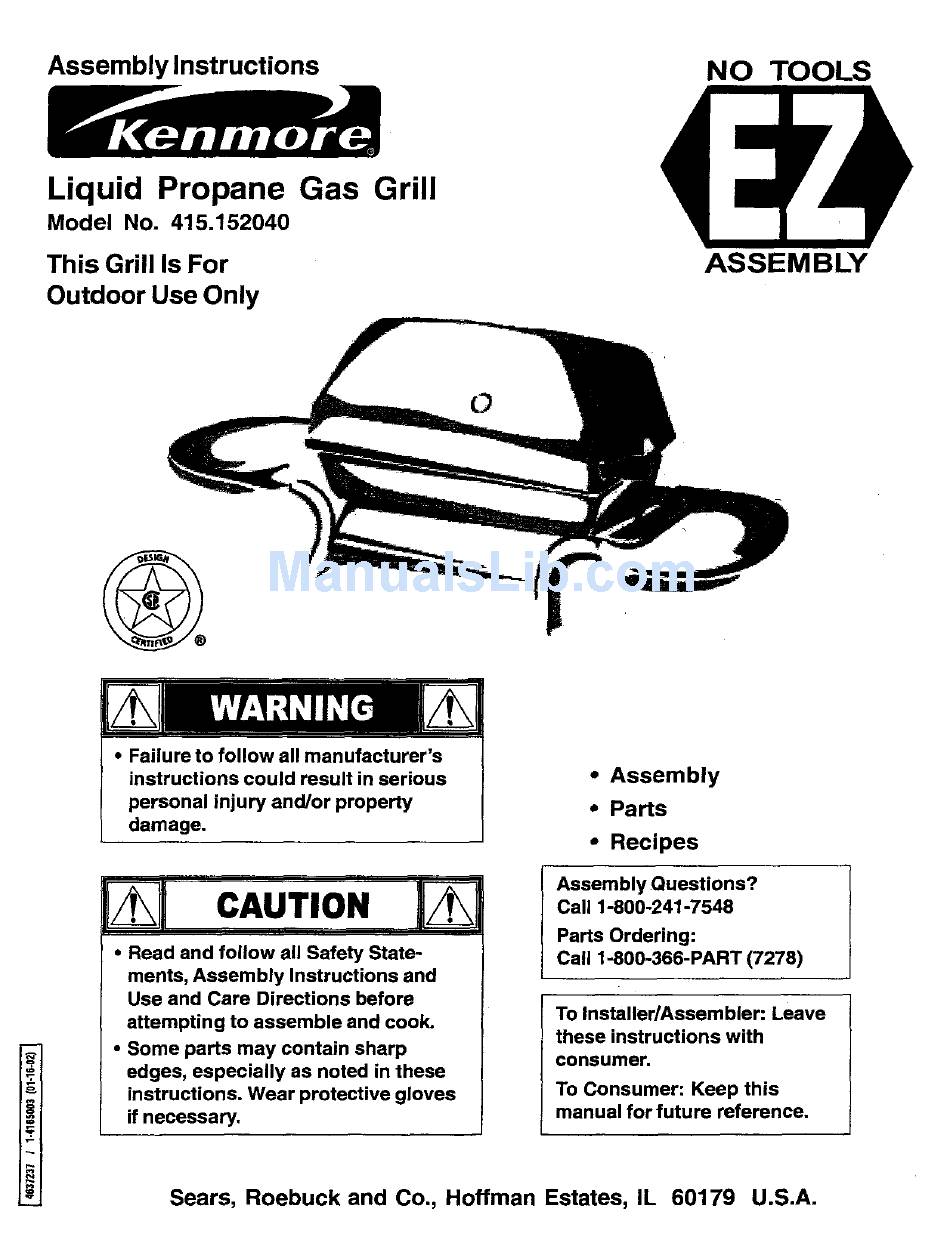

Assembly Instructions
NO
TOOLS
Liquid Propane Gas Grill
Model No. 415.152040
This Grill Is For
Outdoor Use Only
ASSEMBLY
• Failure to follow all manufacturer's
instructions
could result in serious
personal injury and/or property
damage.
• Read and follow
all Safety State-
ments, Assembly
Instructions
and
Use and Care Directions
before
attempting
to assemble and cook.
• Some parts may contain sharp
edges, especially
as noted in these
instructions.
Wear protective gloves
if necessary.
• Assembly
• Parts
• Recipes
Assembly Questions?
Call 1-800-241-7548
Parts Ordering:
Call 1-800-366-PART (7278)
To Installer/Assembler:
Leave
these instructions
with
consumer.
To Consumer:
Keep this
manual for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Advertisement
Table of Contents
Related Manuals for Kenmore 415.152040
Summary of Contents for Kenmore 415.152040
- Page 1 Assembly Instructions TOOLS Liquid Propane Gas Grill Model No. 415.152040 This Grill Is For ASSEMBLY Outdoor Use Only • Failure to follow all manufacturer's • Assembly instructions could result in serious personal injury and/or property • Parts damage. • Recipes...
- Page 2 Part# Part# DripVapoRISER Bar ........4501750 Leg Assembly..........4502102 GreaseClip ..........5156607 Leg Extender ..........4154492 Rail ............... 4503099 Valve/Hose/Regulator ......... 4524120 #10-24x3/8"Machine Screw ....4 080379 STD511003 #10-24x2" Machine Screw......4060064 Con_'ol P anel..........4526041 Brace............4503047 Con_'o[Knob ..........
- Page 3 4637237 • 3...
- Page 4 Remove endm"ruUng CartAssembly Step1 wanan_ card. [] Positionlegwith extenders to lelt. [] Install back rail (with label) using bolts only, no wing nuts. [] Install front rail using bolts only, no wing nuts. [] Install brace and four wing nuts. This label contains the write this informationon page 2 of your Use &...
- Page 5 CartAssemblyStep2 [] Insertfourend caps. [] Attachwheelsandtanksupportbracket to endsof rightlegs. Qty.2 Completed Assemblyt < 4637237 • 5...
- Page 6 CartAssembly Step3 [] Assemble frontpanelloosely withfour boltsandwing nuts. [] Tightenaftercompleting step4. Qty.4 Qty.2 Qty.2 Usefronthole NOTE:Wheels areto rightside 6 - 4637237...
- Page 7 GrillBottomAssembly [] Assemblegrillbottom to cart. [] Attachgreaseclipto grillbottom. [] AttachSearsGreaseCup#22020(sold separately) o r soupcan to grease clip. [] Fullytightenfrontpanelwingnuts. • Failure to install can in clip will cause hot grease to drip from bottom of grill with risk of fire or property damage. Qty.Z Q_.2 Sears Grease Cup...
-
Page 8: Ignitor
ControlPanelAndSideShelfAssembly [] Position valvesinsideends of burners. [] Installcontrolpaneland shelf withcut-outto rightsideof cart. [] Attachignitorwireto roundterminal o n bottomof ignitor. [] Installremainingshelfto left side of cart. NOTE:Do not allowignitorwire tocontactthe grillbottom. A damaged wiremayimpairignitorfunction. IMPORTANT: Valvesand burnertubes mustbe engaged beneathcontrol panel. terminal a •... -
Page 9: Grilllid
[] Install grilllidto grillbottom. rill Lidand Handle Assembly [] Install handleto grilllid. Q_j.2 qty.2 Q_'.2... -
Page 10: Lower Swingaway
Condiment BasketAndSwingAway A ssembly [] Attachcondiment b askettofrontpanel. [] InstalllowerSwingAway byplacingpivot wireintolowerhalesin sidesof grilllid and legs intotop holesin sidesof gdil bottom. Lower [] InstallupperSwingAway byplacing pivot wire intomiddle holesin sides Backof of grilllid and legs intoloops Swingaways in sidesof lowerSwingAway. pointing upward Pivot wire... -
Page 11: Tankwire
TankWireAndLPTankAssembly • LP GAS TANK IS SOLD SEPARATELY. Before [] Installtankwireintorightlegassembly. attaching to grill and regulator, fill and leak [] PlaceLP tankontotanksupportbracketandsnap check. See Use & Care Manual. tankwireovertankcollar. • Curved portion of tank wire should be inside of [] SeeUse& CareManual f or connection of regulator tank collar, to LP tank, NOTE:... - Page 12 Cooking GrateAssembly [] Placecooking grateontograterests in grillbottom. 12 • 4637237...
- Page 13 Recipes Indirect Cooking: You can bake or slowly roast manyfoods on a covered grill by cooking indirectly. Simply light the gas on one side of the grill and place the food on the other side. Close the lid and your grill will bake or roast like a conventionaloven. Lemon Herb Chicken Yield: 6 Servings •...
-
Page 14: Cookinggrate
Recipes Herb Butter 1 stick butter,softened 1 small clove garlic, pressed 1 tbs. lemonjuice 2 tsp. finely chopped chives 2 tsp. finely choppedparsley 2 tsp. finely chopped tarragon Add herbs and juice to softened butter and cream all together. Cover and store in refrigerator for seasonings to blend. Good on vegetables, bread, fish or steaks. - Page 15 Recipes Mauna Key Lamb Chops Yield: 6 Servings • CookingTime:15 Minutes• Method: Medium- H ot 6 1 inch loin, rib or shoulder chops 1/2 cup soy sauce 2 tbs. brown sugar 1 clove garlic, crushed 1 tsp. grated fresh ginger Blend together all ingredients except chops, Marinate the chops in the mixture for one hour, turning.
- Page 16 For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-MY-HOM E® Anytime, day or night (1-800-469-4663) (U.S.A. and Canada) www.sears.com www.sears,ca For repair of carry-in products like vacuums, lawn equipment, and electronics, call for the location of your nearest Sears Parts and Repair Center.
