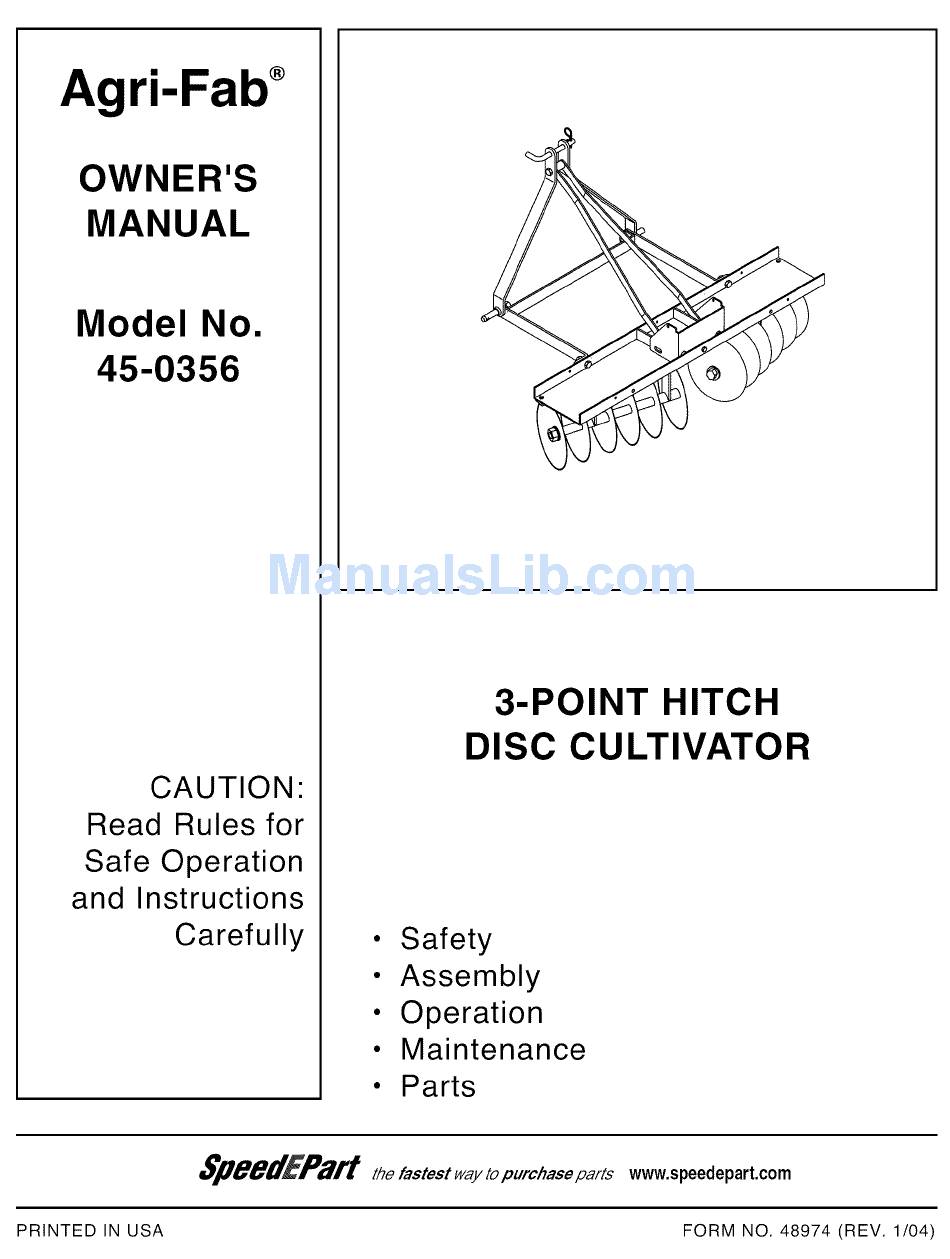

- Page 1 Agri-Fab ® OWNER'S MANUAL Model No. 45-0356 3-POINT HITCH DISC CULTIVATOR CAUTION: Read Rules for Safe Operation and Instructions Carefully • Safety • Assembly • Operation • Maintenance • Parts 8pee#EPart the _ a,,e,, wa_ to purcha, e parts w ww.speedepart.com...
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. CAUTION: VEHICLE BRAKING IMPORTANT SAFETY PRECAUTIONS. ADDITION OFAN ACCESSORY OR AN LOOK FOR THIS SYMBOL TO POINT OUT... - Page 3 Not to Size PARTS PACKAGE CONTENTS - PARTS SHOWN ACTUAL SIZE QTY. DESCRIPTION QTY. DESCRIPTION Hex Bolt, 1/2" x 3-1/2" Flat Washer, 2" Hex Bolt, 1/2" x 2-1/4" Lock Washer, 7/8" Hex Bolt, 3/8" x 1-1/2" Flat Washer, 1.25" Carriage Bolt, 3/8"...
-
Page 4: Tools Required For Assembly
ASSEMBLY Assemble a disc anchor strap to a disc assembly using four 3/8" x 1-1/4" carriage bolts and 3/8" Nylock hex nuts. Tighten. Repeat for other disc assembly. See figure 2. TOOLS REQUIRED FOR ASSEMBLY 9/16" Wrenches Assemble the tray frame to the disc anchor straps 3/4"... - Page 5 Attach two mast extension straps to the front of 1-1/2SPACER the frame tray so that the bent end of each strap points outward. Use two 1/2" x 1-1/4" hex bolts 112" NYLOCK HEX NUT and two 1/2" Nylock hex nuts. Do not tighten yet.
-
Page 6: Operation
OPERATION Up to 160 Ibs. of weight may be added to help increase penetration. 40 lb. suitcase weights be attached to the center weight rack, or concrete The disc cultivator is used to break up clods of dirt and blocks or other weights may be tied or strapped to uproot small weeds in plowed soil. - Page 7 REPAIR PARTS FOR MODEL NO. 45-0356 3-POINT HITCH DISC CULTIVATOR REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION 43343 64781 Haircotter Pin, 1/8" x 2-3/8" Tray Frame 712-3083 43001 Hex Nut, Nylock, 1/2" Hex Bolt, 3/8" x 1" 25158 Mast Side...
- Page 8 SJ_RR_'Pa/'t the fastest way topurchaseparts www.speedepart.com REPAIR PARTS Agri-Fab, Inc. 303 West Raymond Sullivan, IL 61951 217-728-8388 © 2004 Agri-Fab, Inc. www.agri-fab.com...
