Summary of Contents for Magnavox MSB5300

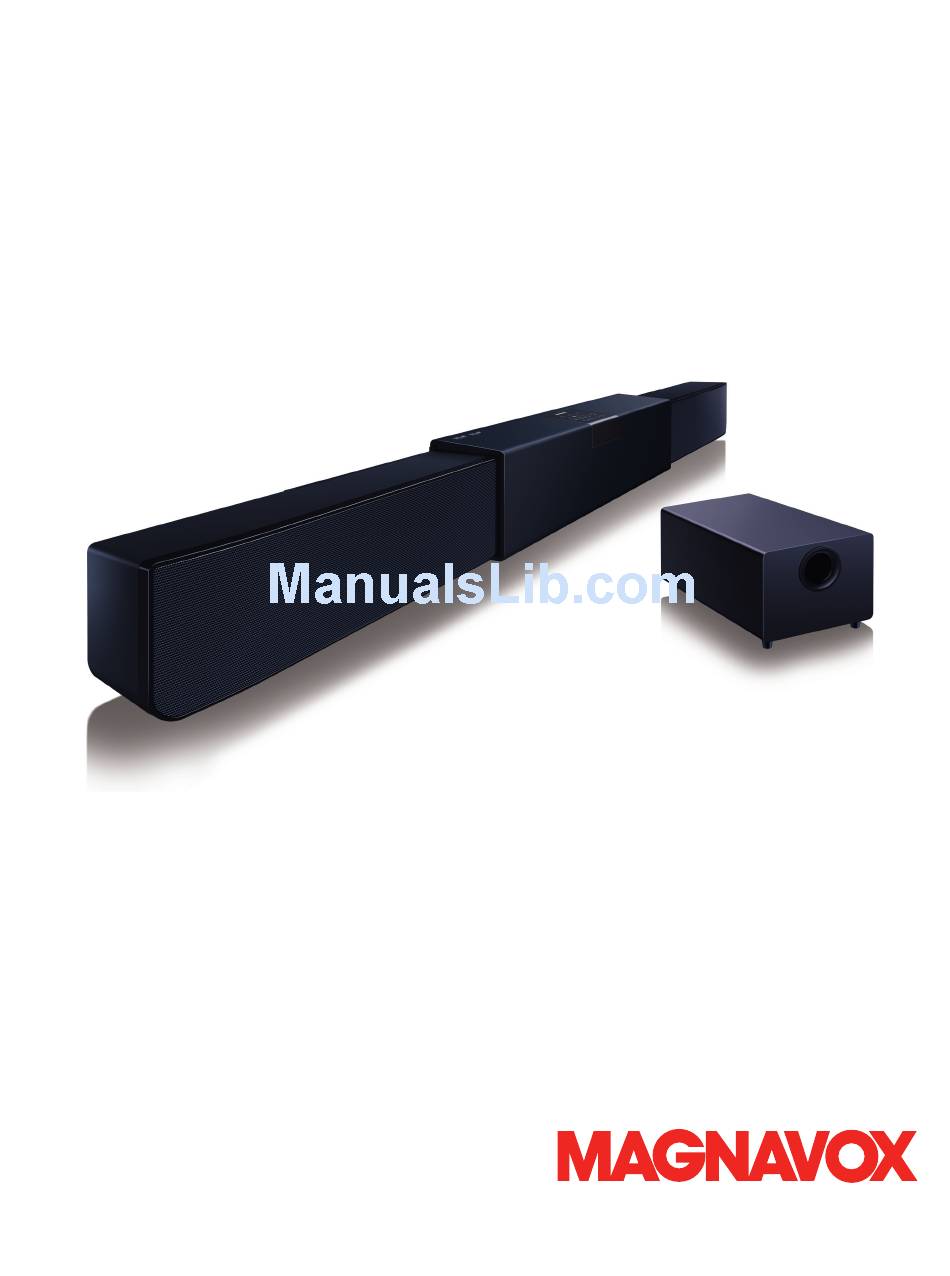

- Page 1 Expandable Soundbar Speakers MSB5305 MSB5300 (MSB5305 only) MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co., Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America.
-
Page 2: Table Of Contents
Contents 1 Notice Trademark Information 2 Important SAFETY INSTRUCTIONS 3 Get started Supplied accessories Replace the remote control battery Control panel Remote control Subwoofer (MSB5305 only) Terminals Adjusting the length of this Soundbar Connecting your TV Connecting your MP3 Player Connecting the Power Connecting the Subwoofer (MSB5305 only) Table top placement... -
Page 3: Notice
1 Notice Risk of injury or damage to the SoundBar • For wall-mountable products, use only the supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Funai Corporation Inc. -
Page 4: Get Started
3 Get started Replace the remote control battery Press the tab lock to the right, then slide out the battery compartment out. Supplied accessories Expandable Soundbar Sub woofer (MSB5305 only) Quick Start Guide Remote Control Mounting Bracket ( x 2) Replace CR2025 battery. -
Page 5: Control Panel
Control panel (POWER-ON / STANDBY-ON) Press to Turn the unit On or go into Standby mode. TruSurround HD To Turn On the SRS Trusurround HD. TruVolume To Turn On SRS TruVolume. To Turn On SRS WOW. TruSurround TruVolume Mute Volume [Control panel] Touch to adjust volume down ( ) / up ( ) for Soundbar. -
Page 6: Adjusting The Length Of This Soundbar
Adjusting the length of this Soundbar Connecting your MP3 Player If your TV is connected to Soundbar through You can adjust the length of the unit to fit your TV screen size RCA Audio L/R cable (from 32 to 46 inch) using rotary knob at rear of this unit. (The factory default is minimum length of the unit.) MP3 Player To extend the Soundbar... -
Page 7: Connecting The Power
Connecting the Power Wall mounting using brackets You can use the Wall Mounting Template located in the Quick Start Guide to mark the Top screw positions. (Mounting Bracket Screws are not included.) 2 AC pin connector Measure your TV width to find the center, then 3 15/16 from the center line mark the 2 top screw positions which are 2”(min.) to 2-½”(max.) from the bottom edge of the TV. -
Page 8: Hint For Better Acoustic Setting
4 Hint for better acoustic setting What is SRS acoustic advantage? Many movies and much music has been recorded at studios by applying SRS technology to enhance better sound reproduction and clarity for maximum entertainment. You can find one that works best for you. SRS TruSurround HD Creates an immersive, feature-rich surround sound experience from two Speakers, complete with rich bass, high frequency and clear speech. -
Page 9: Specifications
6 Specifications Model # MSB5305 MSB5300 Power requirements Soundbar DC 20V Subwoofer DC 24V Power consumption 26 W (Standby: 1.8 W) 8 W (Standby: 0.6 W) Dimensions (W x D x H) 30.3~44.3 x 3.4 x 4.3 inches Soundbar (769~1123 x 86 x 109 mm) 8.8 x 13.4 x 7.3 inches...
