RocketFish RF-HD101 Quick Setup Manual

Package contents
500 GB hard drive Mounting bracket for Model CECH-4000
series Playstation 3 system only
• Quick Setup Guide
Compatibility
• Mounting bracket compatible with CECH-4000 series PlayStation 3 system only.
• Hard drive compatible with all PS3 systems if using the hard drive bracket already
installed in the PS3 system.
Installing the hard drive in a CECH-4000 series PS3
NOTE: For instructions on how to replace the hard drive on an older PS3 using an existing mounting
bracket, see Using an existing mounting bracket below.

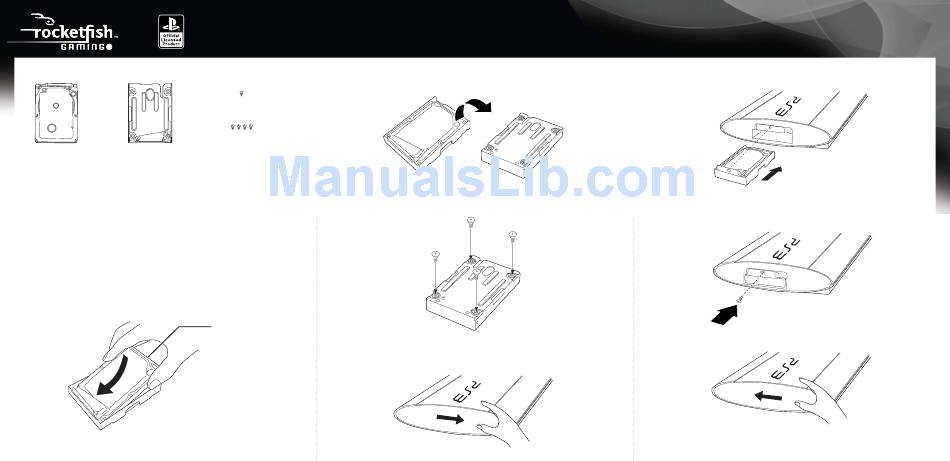

1 Remove the new hard drive from the protective plastic wrap.
2 Slide the hard drive into the included mounting bracket so that the connectors are
facing out. The screw holes on the hard drive should align with the holes on the
mounting bracket.
Before using your new product, please read these instructions to prevent any damage
3 While holding the hard drive in place, carefully turn the mounting bracket over and
place it on a soft and dry cloth.
Blue screw (1)
Silver screws (4)
4 Use a screwdriver to insert the four silver screws into the screw holes, then tighten
the screws.
WARNING: Do not overtighten.
Connectors
5 Turn off your PS3 and unplug all the cables connected to it.
6 Open the hard drive bay cover on your PS3 by sliding it to the right.
QUICK SETUP GUIDE
PS3® Hard Disk Drive Kit
7 Line up the screw hole in your PS3 with the screw hole on the mounting bracket,
then slide it into the bay.
8 Make sure that the new hard drive is fully inserted, then secure the blue screw with a
screwdriver.
WARNING: Do not overtighten.
9 Reattach the hard drive bay cover on your PS3 by sliding it to the left.
10 Connect the cables, turn on your PS3, then follow the on-screen instructions.
RF-HD101
