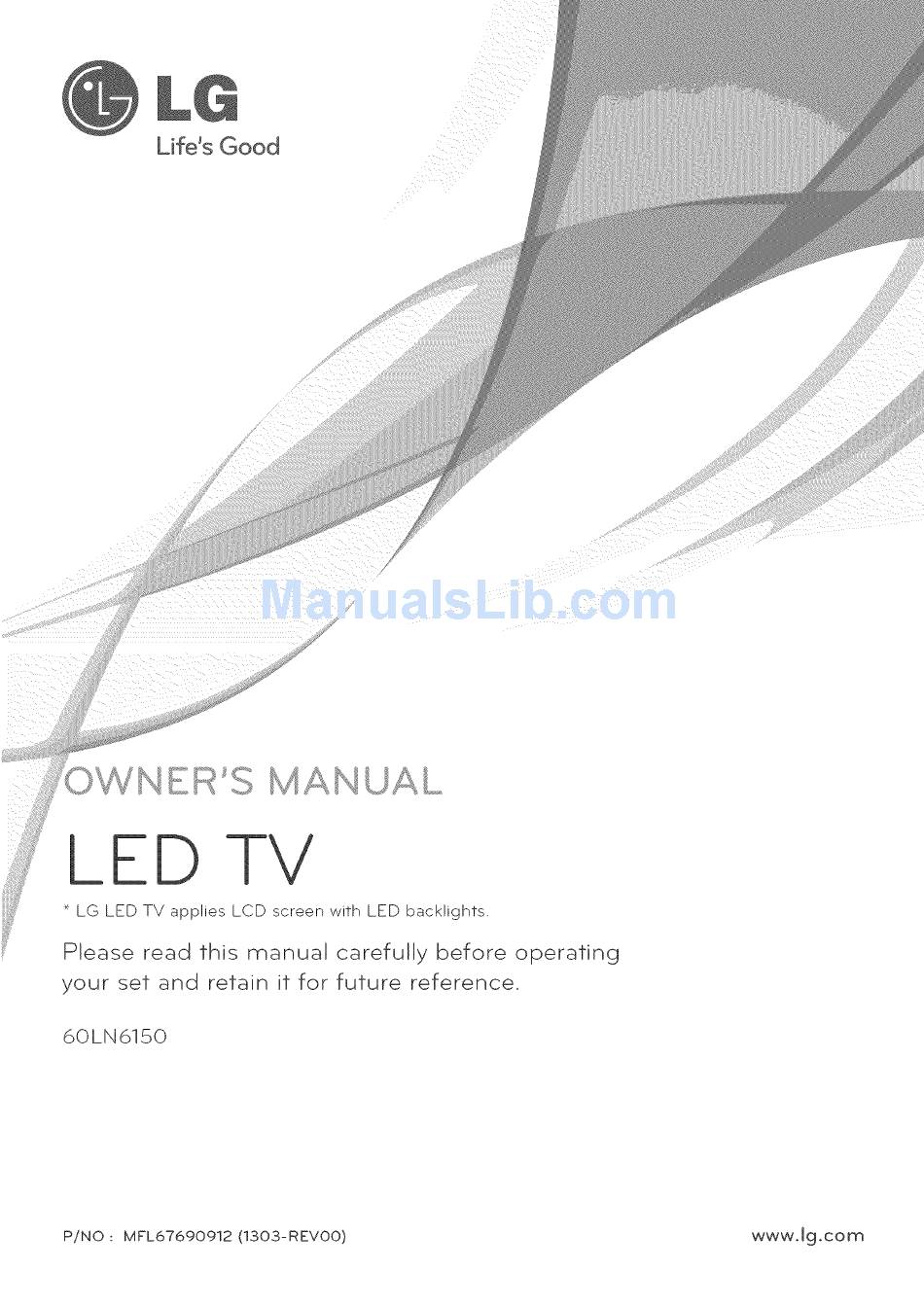

LG 60LN6150 Owner's Manual

Hide thumbs Also See for 60LN6150:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Life's Good
LED TV
* LG LED TV applies
LCD screen with LED backlights.
Please
read
this
manual
carefully
before
operating
your
set
and
retain
it for
future
reference.
60LN6150
P/NO
: MFL67690912
(1303_REVO0)
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG 60LN6150

Summary of Contents for LG 60LN6150

  • Page 1 Life's Good LED TV * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your retain it for future reference. 60LN6150 P/NO : MFL67690912 (1303_REVO0) www.lg.com...

  • Page 2: Important Safety

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. Read these instructions. Keep these instructions. WARNING/CAUTION Heed all warnings. Follow all instructions. * Do not use this apparatus near water. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS Protect the power cord from being walked on CAUTION concerning the Power Cord or pinched particularly at plugs, convenience (Can differ by country): receptacles, and the point where they exit from the It is recommended that appliances be placed upon a apparatus.
  • Page 4 If you smetl smoke or other odors coming from Do not attempt to modify this product in any way the TV, unplug the power cord and contact an without written authorization from LG Electronics. authorized service center. Unauthorized modification could void the user's Keep the product away from direct sunlight.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Dot Defect For USA and Canada The Plasma or LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you're viewing the TV. Those dots are deactivated pixets and do not affect the This equipment has been tested and found to...

  • Page 6: Licenses

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to 'opensource@lge.com'.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS REMOTE CONTROL LICENSES WATCHING Turning the TV on for the first time OPEN SOURCE SOFTWARE NOTICE USING USER GUIDE TABLE OF CONTENTS SPECIFICATIONS INSTALLATION PROCEDURE EXTERNAL CONTROL DEVICE SETUP ASSEMBLING AND PREPARING MAINTENANCE Unpacking Cleaning...

  • Page 8: Installation Procedure

    INSTALLATION PROCEDURE / ASSEMBLING PREPARING INSTALLATION PROCEDURE Open the package and make sure all the accessories are included. Attach the stand to the TV set. Connect an external device to the TV set. Make sure the network connection is available. You can use the TV network functions only when the network connection is made.
  • Page 9 ASSEMBLING PREPARING DOOO @_ DD Remote Control, Batteries (AAA) Owner's Manual Power Cord (See p. 27) Stand Screws Cable Holder Stand Body, Stand Base 8 EA, M4x 14 (See p. 13) (See p. 15) (See p. 13)

  • Page 10: Optional Extras

    These devices only work with certain models. The model name or design may be changed due to the manufacturer's circumstances or policies. Sound ¢ ©o €} AN-M R400 AN-VC4** LG Audio Device Video Catl Camera Magic Remote AN-BL*** Tag On Wiretess IR Blaster...

  • Page 11: Parts And Buttons

    ASSEMBLING PREPARING Parts Buttons Screen Buttons Speakers Power Indicafor Remote cont'rol Sensor Infelligenf Sensor (A /V) Scrolls through the saved channels. (+ /_) Adjusts the volume level. (OK ®) Selects the highlighted menu option or confirms an input. (SETTINGS) Accesses the main menus, or saves your input and exits the menus.

  • Page 12: Lifting And Moving Thetv

    ASSEMBLING PREPARING Lifting moving theTV When moving or lifting the TV, read the following prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. CAUTION Avoid touching the screen at all times, as this may When transporting the TV, do not expose the TV to result in damage to the screen.

  • Page 13: Setting Up Thetv

    ASSEMBLING PREPARING Setting up theTV You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other furniture. Attaching stand If you are not mounting the TV to a wail, use the following instructions to attach...

  • Page 14: Mounting On A Table

    ASSEMBLING PREPARING Mounting on a table ..NOTE * When adjusting the angle of the TV, watch out for your fingers. Lift and titt the TV into its upright position on a table. _>Personal injury may occur if hands or fingers are - Leave a 10 cm (4 inch) (minimum) space from pinched.

  • Page 15: Tidying Cables

    ASSEMBLING PREPARING Tidying cables (Depending on model) Gather and bind the cables with the cable management. Gather and bind the cables with the cable holder. Cable Holder Cable Management _":L_ CAUTION Do not move the TV by holdingthecable holder and cablemanagement, as the cableholdersmay break,and injuries and damage totheTV may Occur.

  • Page 16: Mounting On A Wall

    ASSEMBLING PREPARING Mounting on a wall CAUTION An optional wall mount can be used with your LG Disconnect the power before moving or installing Television. Consult with your local dealer for a walt the TV. Otherwise electric shock may occur.

  • Page 17: Making Connections

    MAKING CONNECTIONS MAKING CONNECTIONS You can connect various external devices to the TV. Supported externat devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device's connection, refer to the manual provided with each device. ---@ NOTE * If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the...

  • Page 18: Connecting To A Hd Receiver, Dvd Player, Or Vcr

    MAKING CONNECTIONS Connecting to a HD receiver, Player, or VCR Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode. HDMI Connection HDMI is the best way to connect a device. Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMi cabte as shown in the following illustration.

  • Page 19: Dvi To Hdmi Connection

    MAKING CONNECTIONS DVI to HDMI Connection Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMt cable as shown in the following illustration• To transmit an audio signal, connect an audio cable• •...

  • Page 20: Connecting To A Mobile Phone

    MAKING CONNECTIONS Connecting to a mobile phone Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets. ,---@ NOTE * Connect the mobile phone to the HDMi iN 3 (MHL) port to view the phone screen on the TV. * This only works for the MHL-enabled phone.

  • Page 21: Component Connection

    MAKING CONNECTIONS Component Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cabte as shown in the following illustration. NOTE • If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color. •...

  • Page 22: Composite Connection

    MAKING CONNECTIONS Composite Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration. NOTE • If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV. •...

  • Page 23: Connecting To A Pc

    MAKING CONNECTIONS Connecting to a NOTE * It is recommended to use an HDMI connection for the best image quality. * Depending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use. * In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness.
  • Page 24 MAKING CONNECTIONS Choose any HDMI input port to connect. It does not matter which port you use. (*Not Provided) *Not Provided)

  • Page 25: Connecting To An Audio System

    MAKING CONNECTIONS Connecting to an Audio System You may use an optional external audio system instead of the built-in speaker. Digital Optical Audio Connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration.

  • Page 26: Connecting Headphones

    MAKING CONNECTIONS Connecting Headphones You listen to the sound using headphones. _- @ NOTE * AUDIO menu options are disabled when headphones are connected. When changing AV MODE with headphones connected, the change is applied to video but not to audio. Optical Digital Audio Out is not available when headphones are connected.

  • Page 27: Remote Control

    REMOTE CONTROL \\ Xo The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (I .5 V AAA) matching the ¢' and (.-_,ends to the label...
  • Page 28 REMOTE CONTROL RATIO INPUT INFO 0 Shows information on the current program. SMART _ Accesses the Smart Home menu. ,,',,','- MY APPS Shows the list of Apps. Q,MENU Accesses the quick menu. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK®...

  • Page 29: Watching Tv

    WATCHING WATCHING Turning theTV on for first time NOTE SelectHome when prompted, Store mode putsthe TV indemo mode, When you turn the TV on for the first time, the initial if you select Store,the any customized setting screen appears. Select a language and customize settings w ill switchback tothe default settings the basic settings.

  • Page 30: Using The User Guide

    USINGTHE USER GUIDE USING USER GUIDE User Guide allows you to easily access detailed TV information. Press SMART @ button to access the Smart Home menu. Select User Guide and press the OK button.
  • Page 31 Less than 80 % EnvirOnment oond!!io -20-60 oc Leas than 85 % (60LN6150-UB) 1,355 x 865 x 343 (ram) With stand 53.3 x 34 x 13.5 (inch) Dimensions (Width x Height x Depth) 1,355 x 793 x 65.3 (ram)

  • Page 32: 32 Specifications

    27.00 24.00 802.11a: 16.5 dBm 802.11b: 16 dBm 33.71 29.97 Output Power (Max,) 802.1 lg: 15.5 dBm 1920x1080p 33.75 30.00 802.11n - 2.4GHz: 15.5 dBm 802.11n - 5GHz: 16.5 dBm 67.432 59.94 Because band channel used by the country could 67.500...

  • Page 33: Maintenance

    MAINTENANCE/TROUBLESHOOTING MAINTENANCE Cleaning Your Clean your TV regularly to keep it at peak performance and to extend the product lifespan. [ _}s CAUTION Before Cleaning, turn the power off and disconnect the power cord and allother cables, When the TV is leftunattended or unused for a long time, disconnect the power cord from the wall outletto prevent possible damage...
  • Page 35 Congratulations on your purchase! As you enjoy your product, please keep these safety tips in mind: THE ISSUE * The home theater entertainment experience is a growing trend larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands...
  • Page 36 1-800-243-0000 Consurrer (Jrsel 1-888-865-3026 CorrrrerciaJ [J_er CANADA 1-888-542-2623 www.lg.com The model and seral numbers of the TV are located on the back and one sde of t_e TV "facto y <:lefa_llt (lo'ne iise)" sett ng...
  • Page 37 Life's Good i_,il _%_ _ _C¸_'+_¸ R _ • " EXTERNAL CONT DEVICE S£ Please read this manual carefully before operating the set and retain it for future reference, www.lg.corn...
  • Page 38 KEY CODES KEY CODES This feature is not available for all models. Code Function NOte Code Function Note (Hexa) (He×a) Q.Menu R!C Button CH +, PR + R!C Button CH -, PR - R/C Button List, - (ATSC Only) R/C Button Volume + R!C Button List...

  • Page 39: External Control Device Setup

    (TV) (PC) LGTV supports PL2303 chip-based (Vendor ID " 0x0557, Product ID " 0x2008) USB to serial converter which is not made nor provided by LG. It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 40 EXTERNAL CONTROL DEVICE SETUP RS-232C with RS-232C Cable (Legacy) Phone jack Type , You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the TV, which is specified in the manual. * For other models, connect to the USB port. (TV) (PC) This connection can only be used for the following models: 55/47/39LN5450-UA,...
  • Page 41 EXTERNALCONTROLDEVICESETUP Communication Parameters Baud rate : 9600 bps (UART) Stop bit : 1 bit Communication code : ASCII code Data length : 8 bits Parity : None , Use a crossed (reverse) cable. Command reference list DATA , ;OMMAND1 OMMAND2 ( exaa cm "H -'ei...
  • Page 42 EXTERNAL CONTROL DEVICE S ETUP Transmission / Receiving Protocol [Commandl][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) Second command to control the TV. [Command 2] [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 43 EXTERNALCONTROLDEVICESETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) * In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute _- To control Power Off of the set. on, TV will not display OSD.
  • Page 44 EXTERNAL CONTROL DEVICE SETUP 09. Tint (Command: k j) 14. Color(Colour) Temperature (Command: x u) _- To adjust the screen tint. _- To adjust colour temperature. You can also adjust You can also adjust tint in the PICTURE menu. Color(Colour) Temperature in the PICTURE menu.
  • Page 45 EXTERNALCONTROLDEVICESETUP * Digital Terrestrial/Cable/Satellite Data 05: Input Source (Analogue) - 00 : Terrestrial TV (ATV) [Data 00][Data 01]: Channel Data - 01 : Cable TV (CATV) Data 00 : High Channel data * Digital Terrestrial/Cable Data 01 : Low Channel data - 00 00 ~ 27 OF (Decimal: 0 ~ 9999)
  • Page 46 EXTERNAL CONTROL DEVICE SETUP 20. Control Back Light (Command: m g) [Data Ol][Data 02]: Major Channel Number Data 01: High byte Channel Data For LCD TV / LED TV Data 02: Low byte Channel Data _- To control the back light. - 00 01 ~ 27 OF (Decimal: 1 ~ 9999) [Data 03][Data...
  • Page 47 EXTERNAL CONTROL DEVICE SETUP 22.3D(Command: x t) (only 3D models) 23. Extended 3D(Command: x v) (only 3D models) (Depending on model) (Depending on model) _- To change 3D option for TV. _- To change 3D mode for TV. [Data 00] 3D option Data Structure 00 : 3D Picture Correction [Data00]...
