IBM System x3750 M4
IBM Redbooks Product Guide
The IBM® System x3750 M4 is a 4-socket server featuring a streamlined design, optimized for price and
performance, with best-in-class flexibility and expandability. Models of the x3750 M4 are powered with
Intel Xeon E5-4600 processors, up to 8 cores each, for an entry-level 4-socket solution. The x3750 M4
provides maximum storage density, with flexible PCI and 10 Gb Ethernet networking options in a 2U form
factor.
Suggested uses : High performance computing (HPC), workloads with floating-point computations, and
small to medium databases requiring fast I/O; applications that require 4-socket performance without
needing the scalability that the IBM eX5 systems provide.

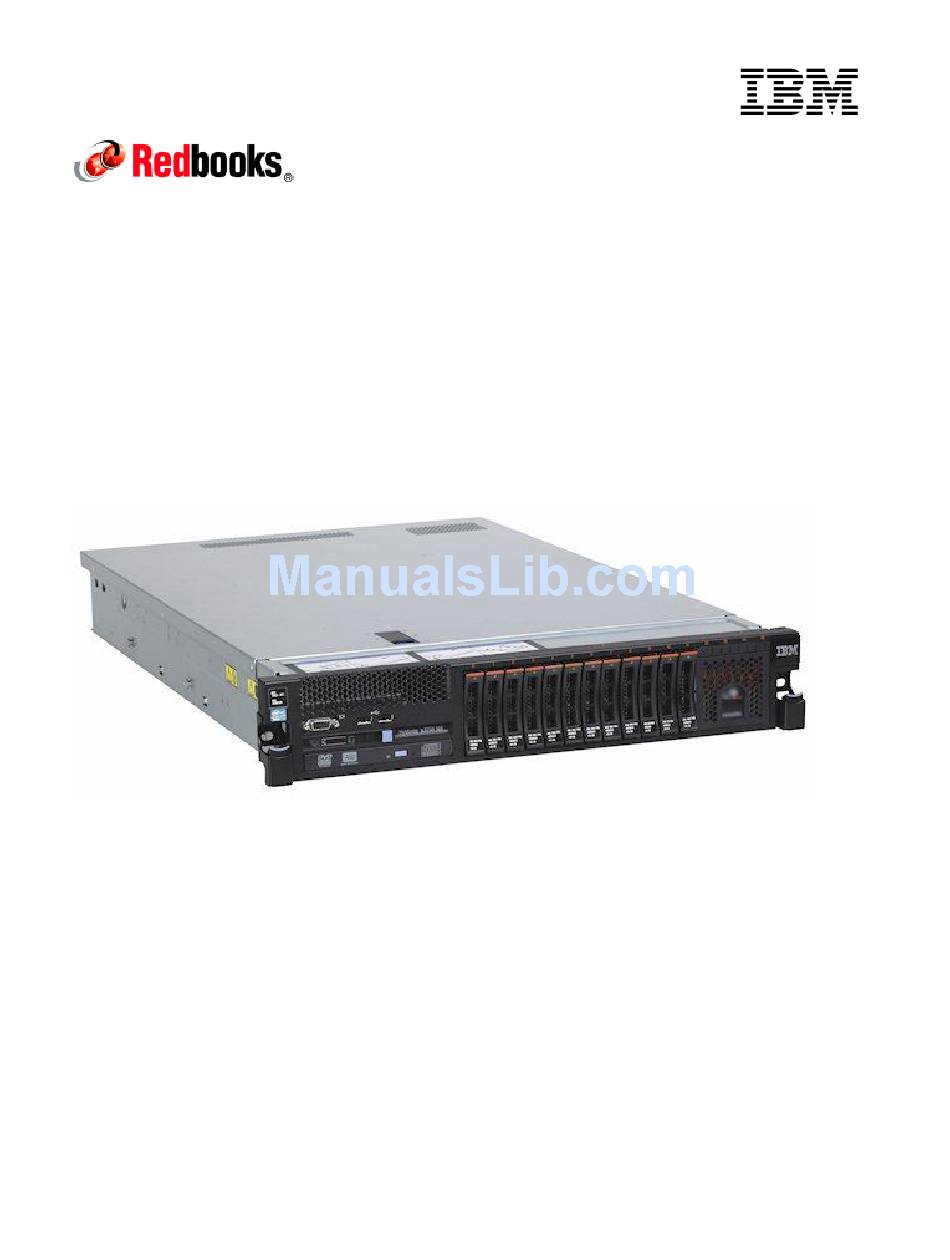

Figure 1. The IBM System x3750 M4
Did you know
The x3750 M4 has outstanding memory performance that is achieved by supporting
three-RDIMM-per-channel configurations at speeds up to 25% faster than the Intel specification, while still
maintaining world-class IBM reliability. LR-DIMM speeds are also 25% beyond the Intel specification for
1.35 V DIMMs, and this speed improve not only performance, but reduces overall system power at the
same time.
The x3750 M4 offers a flexible, scalable design and simple upgrade path to 16 hard-disk drives (HDDs) or
32 IBM eXFlash solid-state drives (SSDs), with up to eight PCIe Gen 3 slots and up to 1.5 TB of memory.
The flexible embedded Ethernet solution provides two standard Gigabit Ethernet ports onboard, along
with a dedicated 10 GbE slot that allows for a choice of either two copper or two fiber optic connections.
Comprehensive systems management tools with the next-generation Integrated Management Module II
(IMM2) make it easy to deploy, integrate, service, and manage.
